Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com

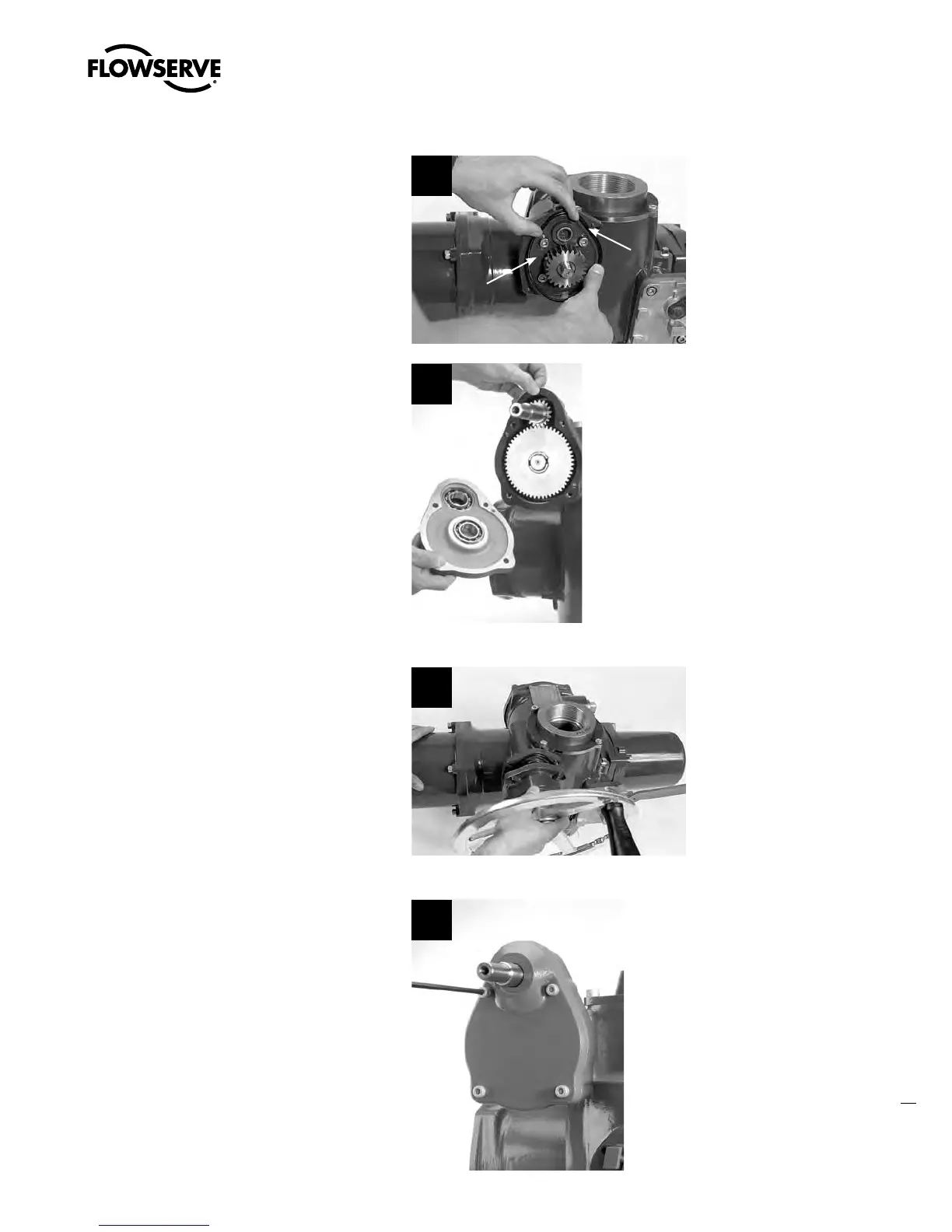

STEP 12A - MX-40
Ensure O-ring (#13-19) is in place on worm
shaft plate (#13-2).
12a
13-2
13-19
STEP 12B - MX-85, -140, AND -150
Ensure gasket (#13-19) is in place on adapter
(#13-2).
12b
STEP 13A - MX-40
Check that quad ring (#13-15), spacer (#13-16)
and needle bearing (#13-11) are correctly
placed in plate (#13-2) and cap (#13-13).
Install handwheel spur cap assembly, secure
with screws (#13-20).
13a
STEP 13B - MX-85, -140, AND -150
Check that seal (#13-15), and ball bearings
(#13-11, 13-22, and 13-23) are correctly placed
in adapter (#13-2) and cap (#13-13).
Install handwheel spur cap assembly. Secure
with screws (#13-20). Remount handwheel
(#13-10) if removed with key (#13-7) and set
screw (#13-18).
13b
