M SLURRY USER INSTRUCTION ENGLISH 71569241 - 02/08
Page 52 of 60
®

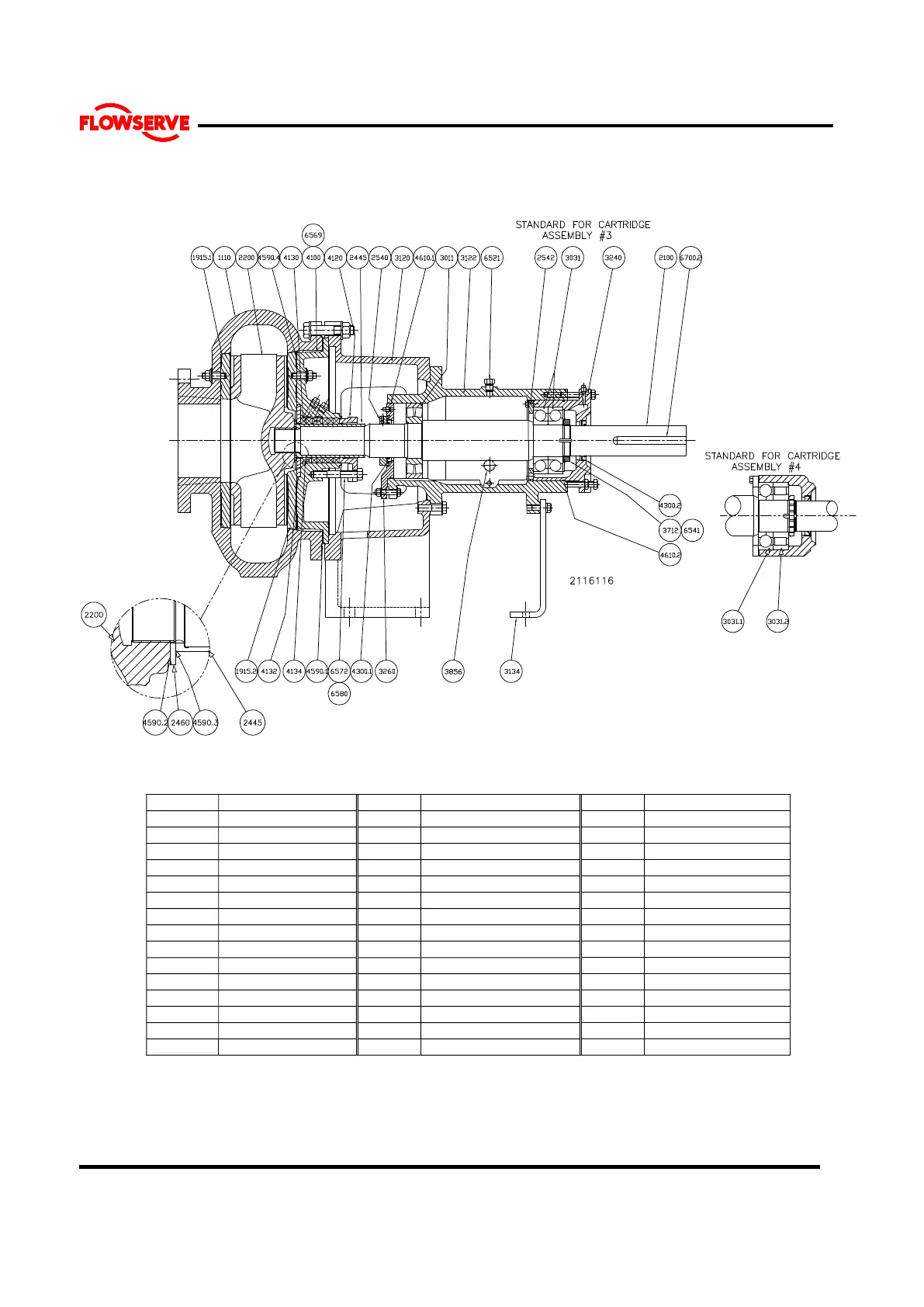

8.3 Standard Duty Frame 3 & 4
Ref. Description Ref. Description Ref. Description
1110 Casing 3134 Support Foot 4590.3 Gasket, Sleeve
1915.1 Wear plate, Suction 3240 Thrust brg.Hsg. 4590.4 Gasket, wear plate
1915.2 Wear plate, Gland 3260 Line brg. Cover 4590.5 Gasket, wear plate
3712 Lock Nut, Bearing 4610.1 O-ring, Line bearing
2100 Shaft 3856 Oil Level Site Gauge 4610.2 O-ring, thrust bearing
2200 Impeller
2445 Shaft Sleeve 4100 Stuffing Box 6521 Vent Plug
2460 Spacer, Impeller 4120 Gland Half 6541 Lockwasher
2540 Deflector 4130 Packing 6569 Plug, square head
2542 Clamp Ring 4132 Protector Plate 6572 Stud, wear plate
4134 Lantern Ring 6580 Nut, wear plate
3011 Line bearing 4300.1 Seal, Line bearing 6700.1 Key, coupling
3031 Thrust bearing 4300.2 Seal, Thrust Brg 6700.2 Key, Shaft
3120 Adaptor Support 4590.1 Gasket, Casing
3122 Bearing Cartridge 4590.2 Gasket, Impeller
