M SLURRY USER INSTRUCTION ENGLISH 71569241 - 02/08
Page 54 of 60
®

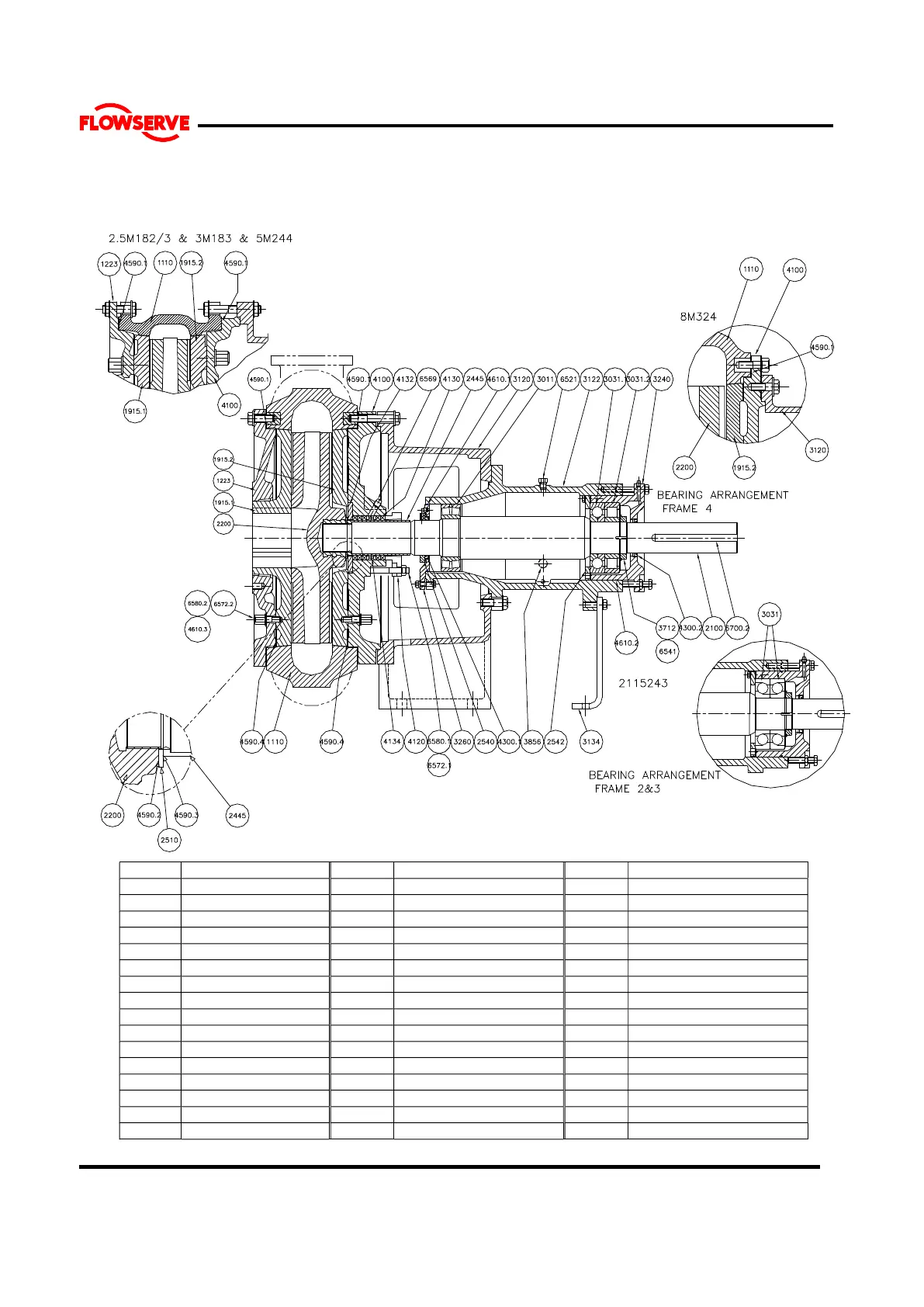

8.5 Severe Duty-Frames 2,3 & 4
Ref. Description Ref. Description Ref. Description
1110 Casing 3134 Support Foot 4590.4 Gasket, wear plate
1915.1 Wear plate, Suction 3240 Thrust bearing Housing 4610.1 O-ring, Line Bearing
1915.2 Wear plate, Gland 3260 Line Bearing Cover 4610.2 O-ring, Thrust Bearing
1223 Suction Cover 3712 Lock Nut, Bearing 4610.3 O-ring, Wear Plate Nut
3856 Oil Level Site Gauge
2100 Shaft 6521 Vent Plug
2200 Impeller 4100 Stuffing Box 6541 Lockwasher
2445 Shaft Sleeve 4120 Gland Half 6569 Plug, Square Head
2510 Spacer, Impeller 4130 Packing 6572.1 Stud, Gland
2540 Deflector 4132 Protector Plate 6572.2 Stud, wear plate
2542 Clamp Ring 4134 Lantern Ring 6580.1 Nut, Gland
4300.1 Seal, Line Bearing 6580.2 Nut, wear plate
3011 Line bearing 4300.2 Seal, Thrust Bearing 6700.1 Key, coupling
3031 Thrust bearing 4590.1 Gasket, Casing 6700.2 Key, Shaft
3120 Adaptor Support 4590.2 Gasket, Impeller
3122 Bearing Cartridge 4590.3 Gasket, Sleeve
To Next Page
