M SLURRY USER INSTRUCTION ENGLISH 71569241 - 02/08
Page 56 of 60
®

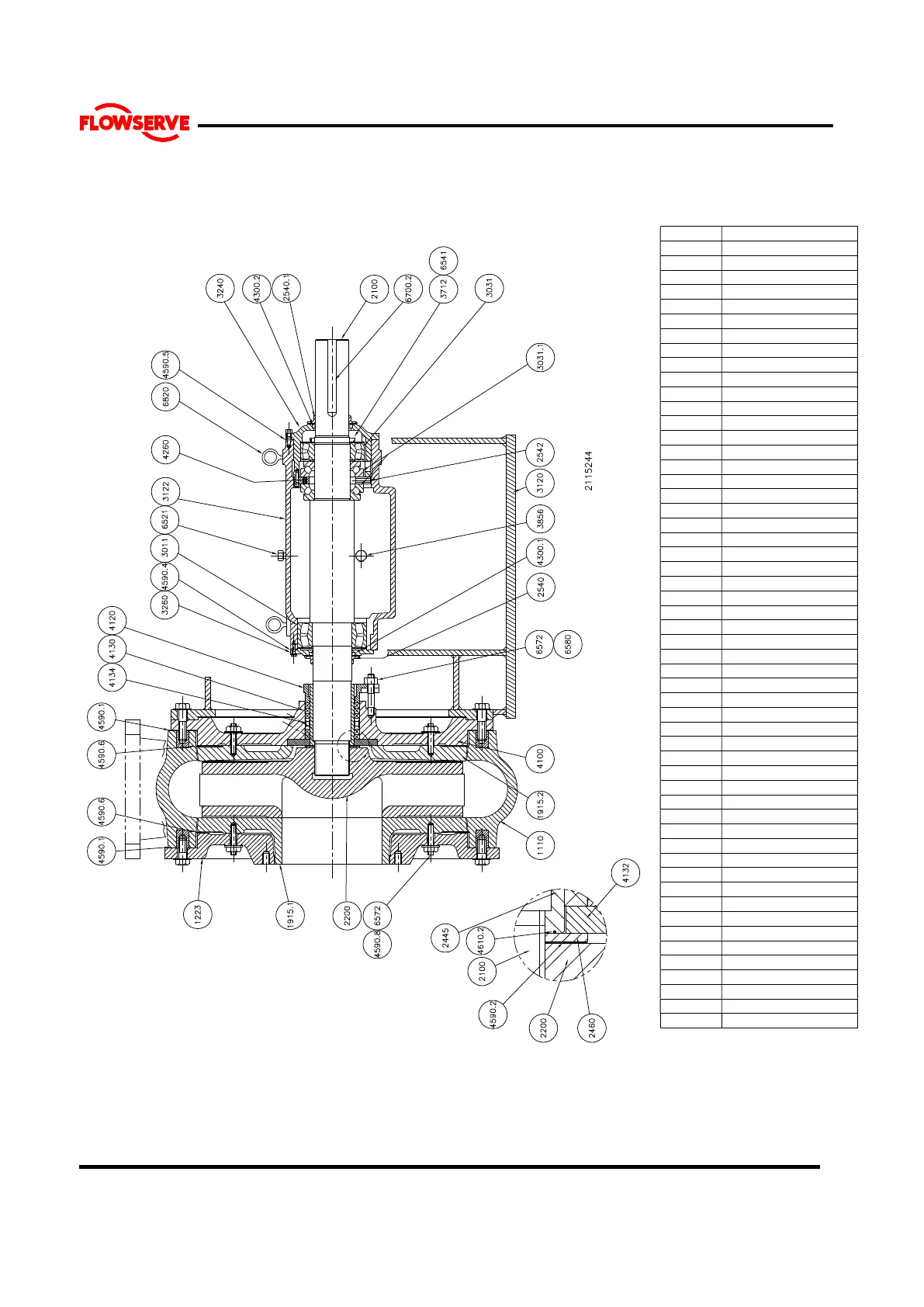

8.7 Severe Duty-Frames 5&6
Ref. Description
1110 Casing
1223 Suction Cover
1915.1 Wear plate, Suction
1915.2 Wear plate, Gland
2100 Shaft
2200 Impeller
2445 Shaft Sleeve
2460 Spacer, Impeller
2540 Deflector
2542 Clamp Ring
2912 Impeller Nut
3011 Line bearing
3031 Thrust bearing
3120 Adaptor Support
3122 Bearing Cartridge
3134 Support Foot
3240 Thrust brg.Hsg.
3260 Line brg. Cover
3712 Lock Nut, bearing
3856 Oil Level Site Gauge
4100 Stuffing Box
4120 Gland Half
4130 Packing
4132 Protector Plate
4134 Lantern Ring
4260 Spring
4300.1 Line bearing seal
4300.2 Thrust Brg.Seal
4590.1 Gasket, Casing
4590.2 Gasket, Impeller
4590.3 Gasket, Sleeve
4590.4 Gasket, Inboard Brg.
4590.5 Gasket, Outboard
4590.6 Gasket, Wear plate
4590.7 Gasket, Stuffing Box
4590.8 Gasket, wear plate
4610.1 O-ring, Line brg.
4610.2 O-ring , thrust brg
4610.3 O-ring, Stuffing Box
4610.4 O-ring, Expeller Hsg.
6521 Vent Plug
6541 Lockwasher
6572 Stud, wear plate
6580 Nut, wear plate
6700.1 Key, Coupling
6700.2 Key, Shaft
6820 Bolt, Eye
