Page 10 FW_E119-P_M_v0301-02_EN

3.4 INSTALLATION EXAMPLE

Following parts can be recognized in below installation example.

4 5

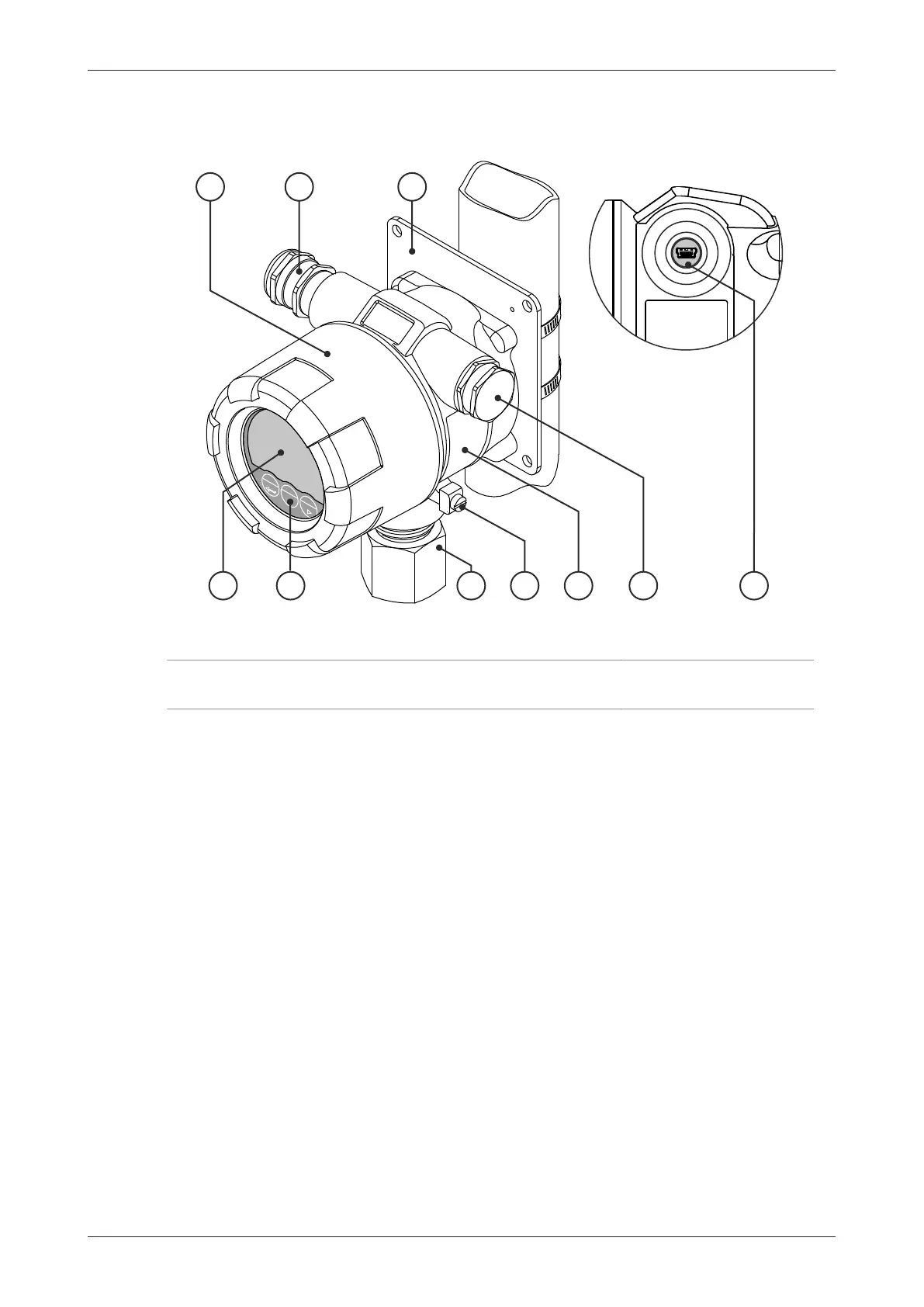

Fig.5: Installation example E119-P

1. Cover 4. Display 7. Grounding

2. Armed cable connection 5. Optical touch keys 8. Labels

3. Pipe mounting plate 6. Process mount 9. USB connection (option)
