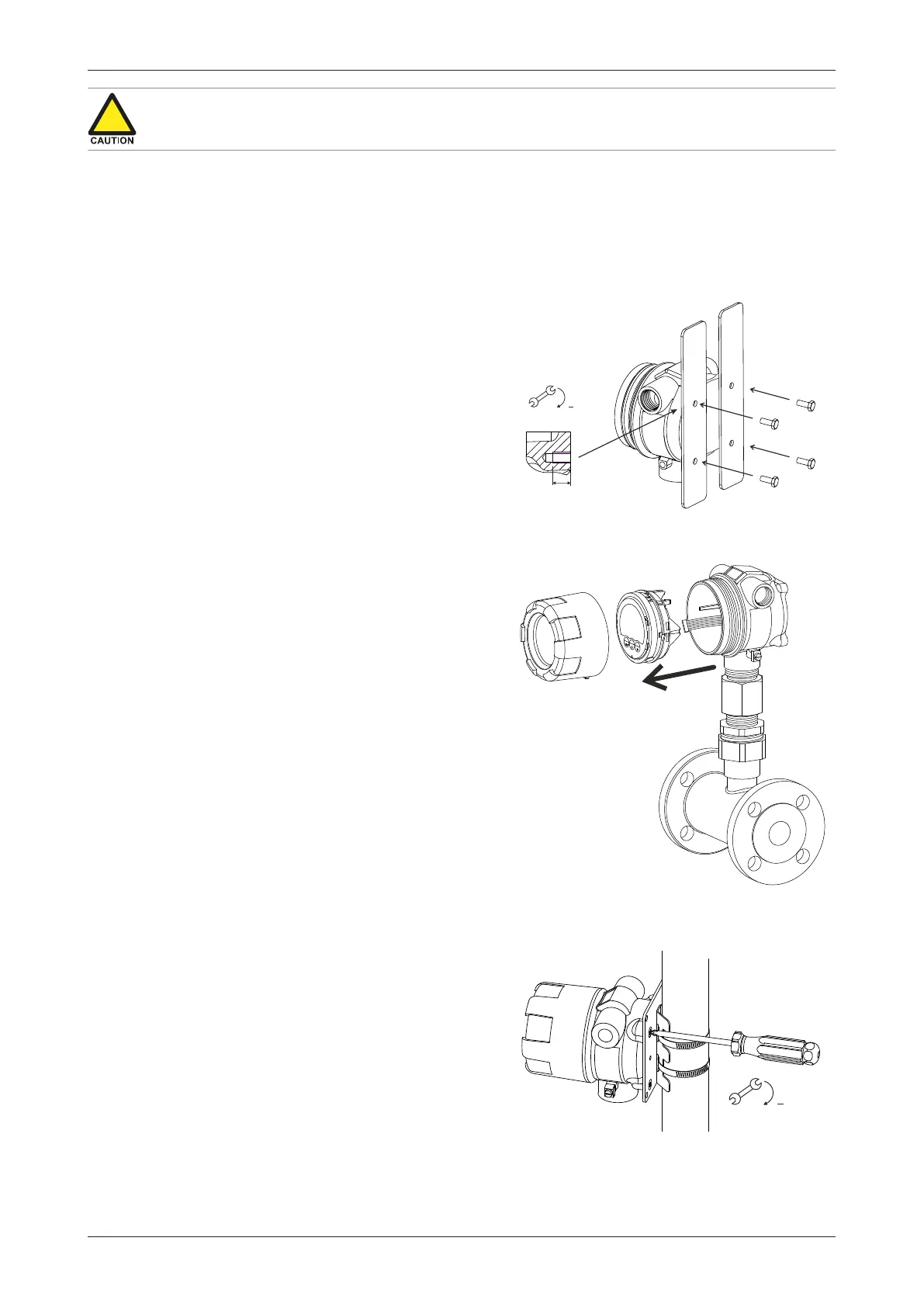

When mounting the unit, leave the cover on as much as possible to prevent damage to the
thread winding. Only remove cover and MEM after mounting.
The following options are available to mount the unit:
● Directly on a panel.
● Directly onto the flowmeter using the large connector on the bottom of the housing.
● On a pipe using the bracket and hose clamps (accessory ACE04).
● On a wall using the wall mounting plate (accessory ACE03).
Mount unit on a panel
1. Mount the unit with four M6 bolts as shown.
The thread depth in the body is max. 10mm
(0.39”)
2. Remove the cover and the MEM (see
Section 6.2.3: Opening, assembling and closing
the unit[»42])
3. Attach electrical cabling (see Section 6.4:
Electrical installation[»47])
4x M6
10mm / 0.39" max.
<4Nm
Mount unit on a flowmeter
1. Remove the cover and the MEM (see
Section 6.2.3: Opening, assembling and closing
the unit[»42])
2. If present, remove the cap from the bottom
connector of the housing.
3. Position the unit over the connector on the
flowmeter.
4. Carefully insert the required cabling from the
flowmeter through the connector opening into
the base of the housing.
5. Add approved lubricating oil onto the windings
of the bottom connector, and screw the
housing clockwise onto the flowmeter
connector until it is sufficiently tight to meet the
required IP or TYPE protection rating.
6. Attach the electrical cabling (see Section 6.4:
Electrical installation[»47]).
Mount unit on a pipe
1. Use the pipe mount accessories (ACE04) to
attach the unit as shown and follow the
Assembly Instructions as supplied with the
accessory.
2. Remove the cover and the MEM (see
Section 6.2.3: Opening, assembling and closing
the unit[»42]).
3. Attach the electrical cabling (see Section 6.4:
Electrical installation[»47]).
<4Nm
