When the output is disabled, the current is by default limited to 2mA. Max. driving capacity
1000Ohm @ 27VDC. If only powered by the loop, the backlight will not be activated.
The total loop resistance may not exceed 1000 Ohm and may not be less than 330 Ohm (at 30mA).
This means that the total resistance of other loop-devices may not exceed 670Ohm.
A1
A2
+
10-27V DC
mA
mA
MEM

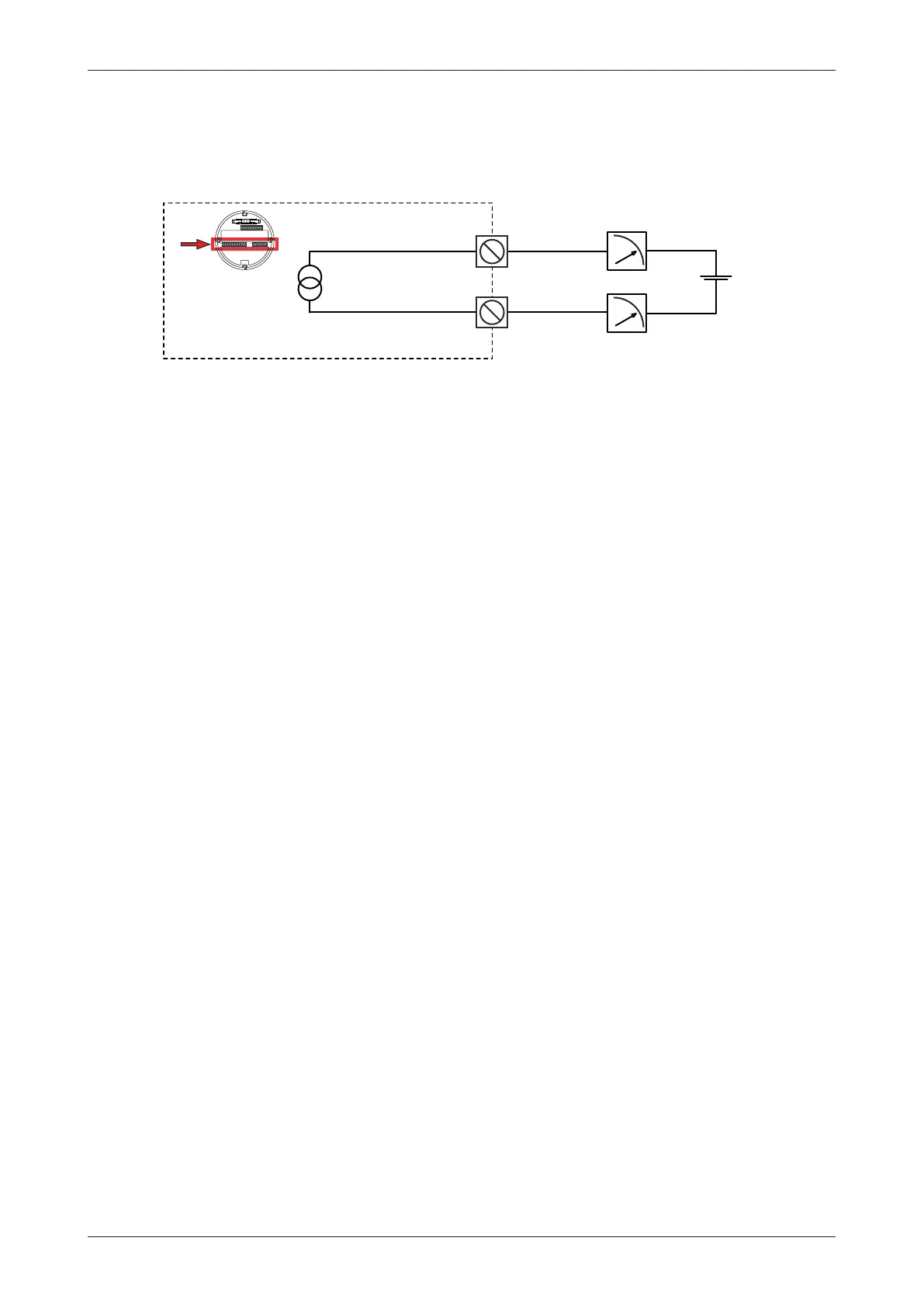

Fig.40: Terminals A1-A2: Analog output
