Fluke 1523 - Figure 4 Input;Output Connections - 1524; Table 3 1524 Input;Output Connections

1523, 1524 Reference Thermometer
Setup
8
Figure 4
SAVE
NEXT
HOMELOG
RESET
ENTER
RECALL
HOLDSTATS
°
C
°
F
SETUP
TRENDmV
RS232
12
V DC
30 V MAX
T1 T2
1524
CALIBRATION
THERMOMETER
READOUT

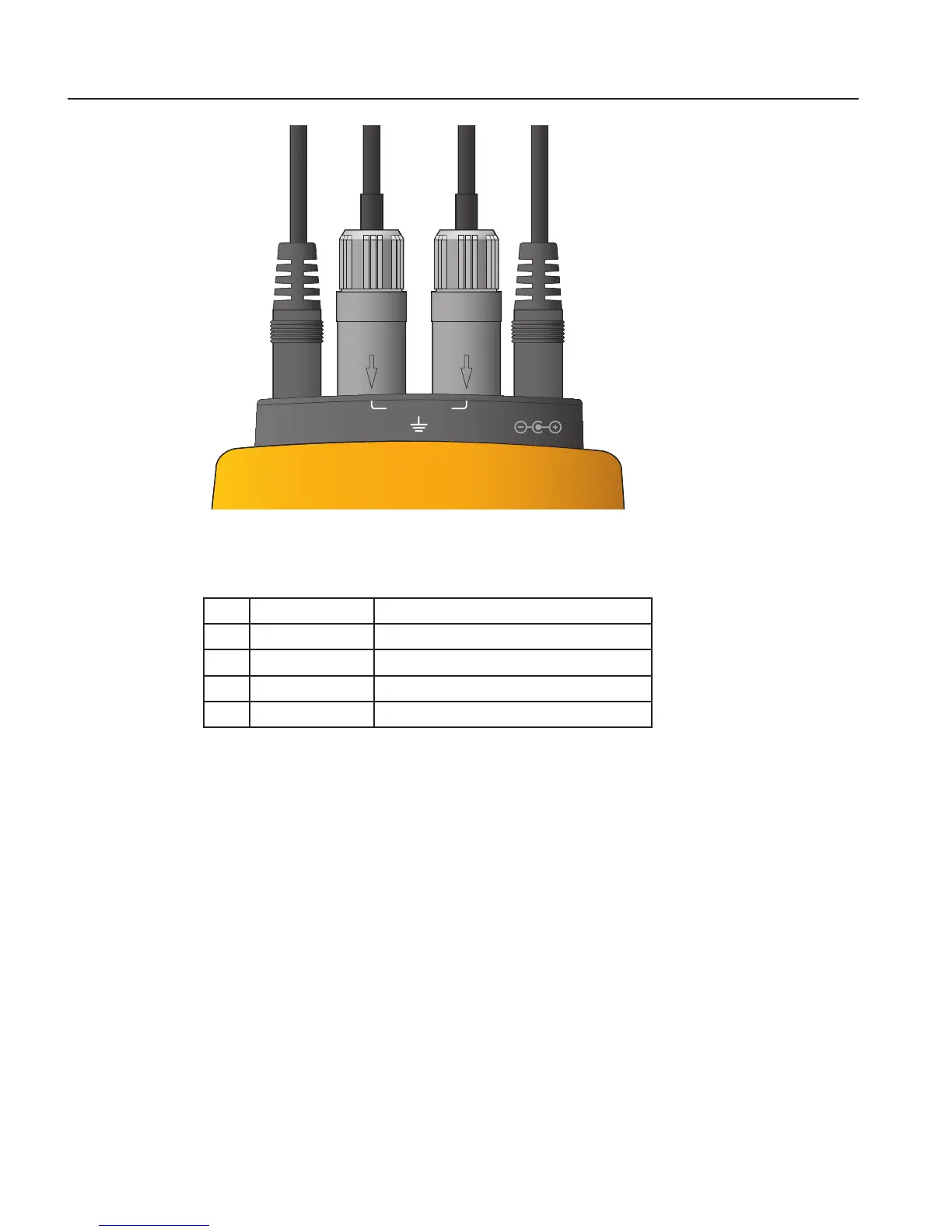

Input/Output Connections - 1524
Table 3 1524 Input/Output Connections
No Name Description
1 Serial Serial interface connector
2 Connector, T1 Sensor Connector, Channel 1
3 Connector, T2 Sensor Connector, Channel 2
4 Power External Power adapter connection
