Fluke 1630-2 User Manual

Earth Ground Clamp
Before You Start
7

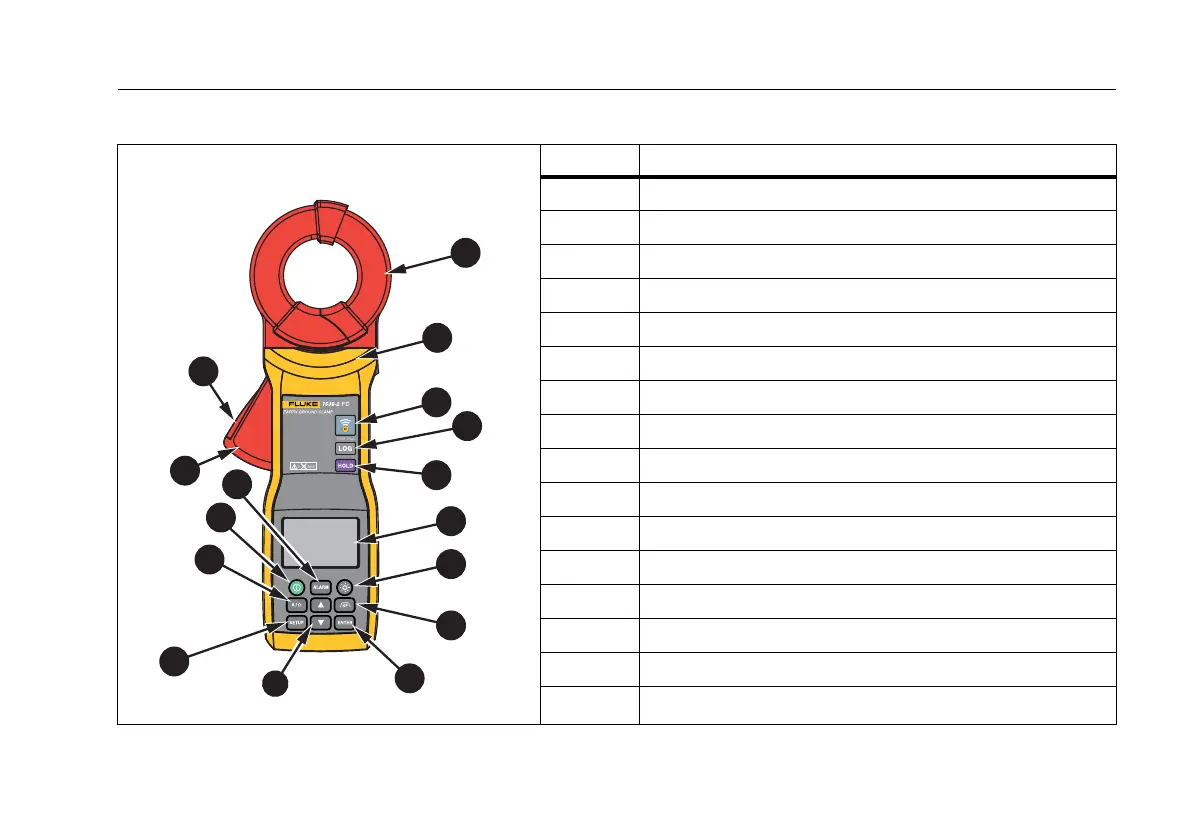

Table 3. Controls
Item Description

Jaw

Tactile barrier

Fluke Connect

(radio) on/off

Record measurements

Hold the displayed value

LCD

Backlight

Filter on/off

Enter

Value increment/decrement

Change Clamp settings

Select type of measurement

Power on/off

Alarm

Jaw trigger

Jaw trigger lock
1
3
5
6
7
8
9
11
12
15
4
10
13
14
2
16

Fluke 1630-2 Specifications

General

Type	Earth Ground Clamp Meter
Ground Resistance Range	0.025 Ω to 1500 Ω
Display	LCD
Data Logging	Yes
Operating Temperature	-10 °C to 50 °C
Storage Temperature	-20 °C to 60 °C
Ground Resistance Accuracy	±(1.5% + 0.02 Ω)
Jaw Opening	32 mm
Power Supply	AA batteries
Safety Rating	CAT IV 600 V
