Fluke 1630-2 User Manual

1630-2/1630-2 FC
Users Manual
12
How to Use the Clamp
This section is about how to set up the Clamp for Earth
resistance tests, AC leakage current measurements, and the
Fluke Connect

Wireless System.
The Clamp includes a trigger lock on the trigger. Push the jaw
trigger lock and trigger together to open the jaw.
Ground Resistance Measurements
The Clamp generates a voltage to the system under test and
the induced current in the system is measured by the Clamp.
The Clamp uses Ohm's Law (R=U/I) to automatically calculate
the resistance measurement.
To check the Clamp before ground resistance measurements:
1. Position the Jaw on the Standard Loop Resistance. See
Figure 7.

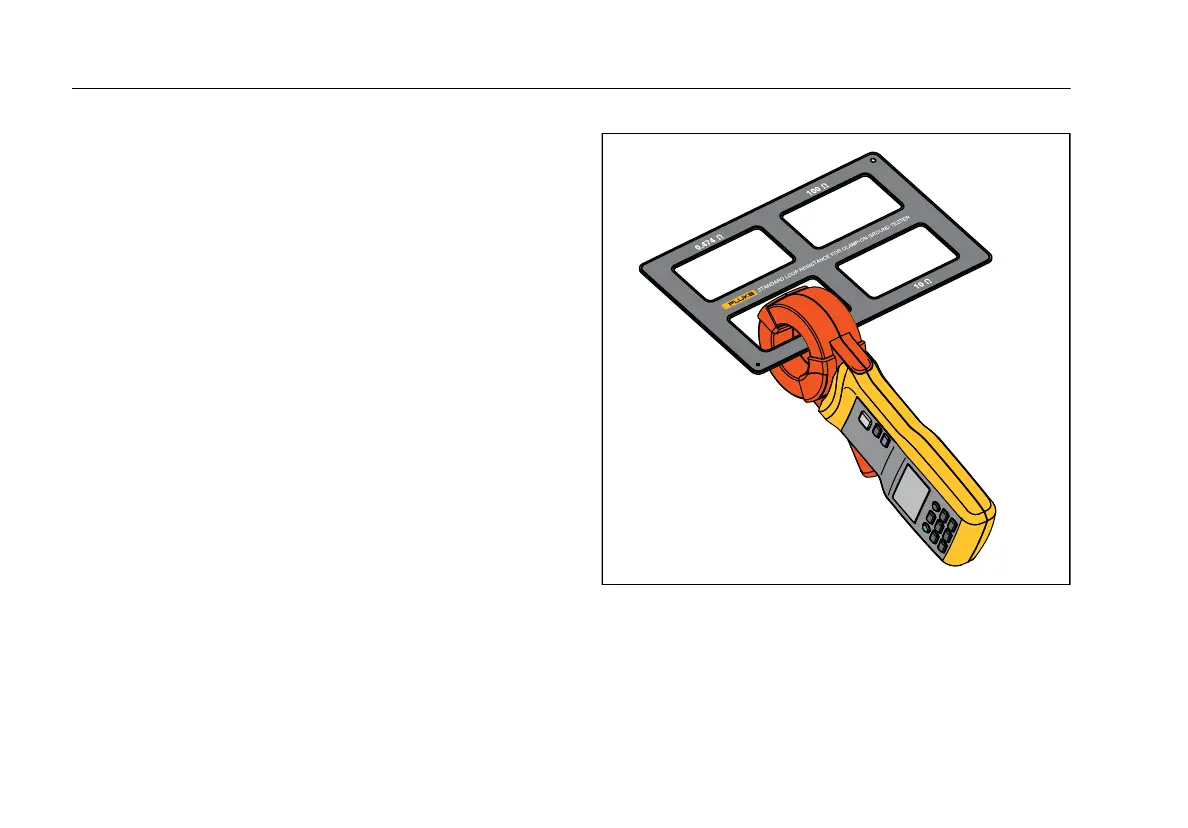

Figure 7. Standard Loop Resistance

Fluke 1630-2 Specifications

General

Type	Earth Ground Clamp Meter
Ground Resistance Range	0.025 Ω to 1500 Ω
Display	LCD
Data Logging	Yes
Operating Temperature	-10 °C to 50 °C
Storage Temperature	-20 °C to 60 °C
Ground Resistance Accuracy	±(1.5% + 0.02 Ω)
Jaw Opening	32 mm
Power Supply	AA batteries
Safety Rating	CAT IV 600 V
