Fluke 1630-2 User Manual

Earth Ground Clamp
How to Use the Clamp
15
AC Leakage Current Measurement
Based on the electromagnetic induction principle, the Clamp
has a ring-shape current transformer comprised of a metal
core and coil winding. The current transformer senses the
magnetic field produced by the current or by the vector sum of
the currents flowing in the conductor under test. The current
transformer then produces a current proportional to the current
flowing in the conductor.
For an AC leakage current measurement test:
1. Open the jaw and make sure the jaw is free of dust, dirt, or
any foreign substances.
2. Turn on the Clamp.
3. Push  to select the A function.
4. Attach the Clamp to the electrode, conductor, or ground
rod for measurement. Figure 9 shows several connection
types for an AC leakage current measurement.
5. Read the value of the leakage current on the display.

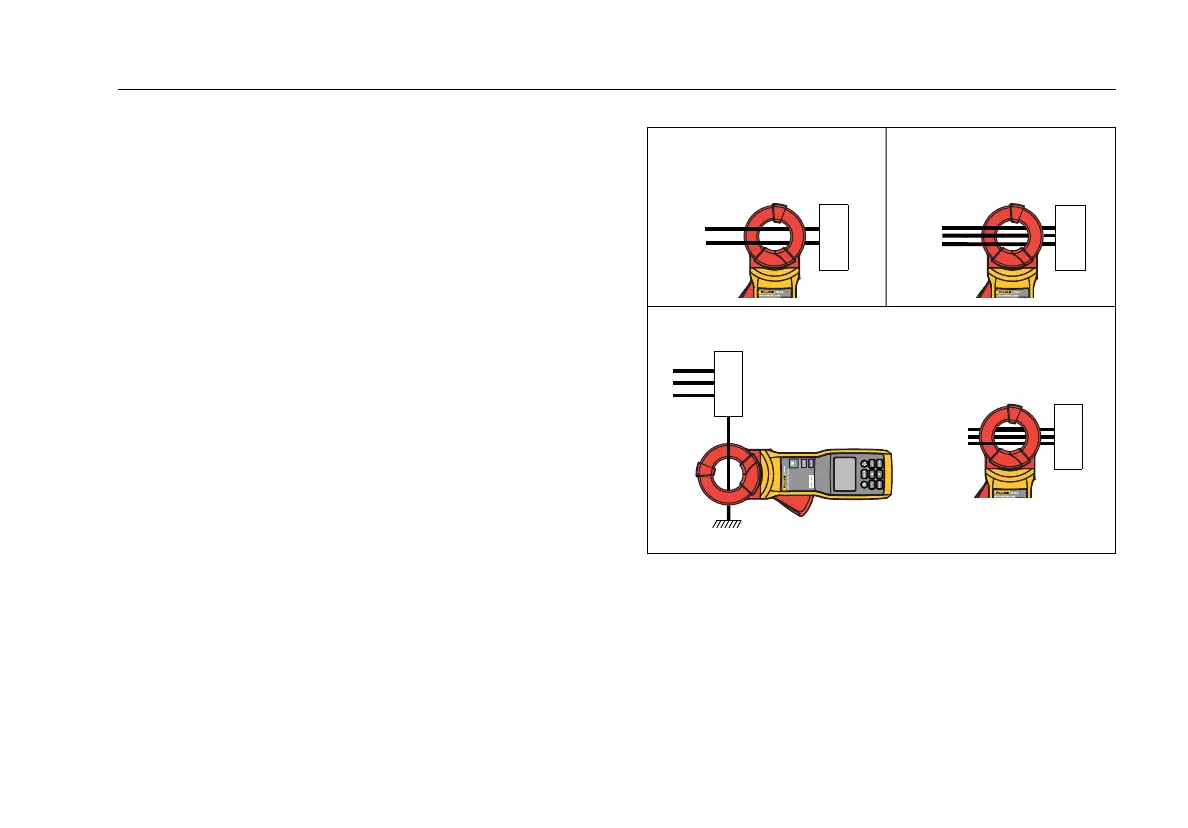

Figure 9. AC Leakage Current Measurement
Load
Load
Load
Grounding Wire
Load
Insert only one of the wires
through the jaws
Load Current Measurement
Single-Phase
Three-Wire or
Three-Phase
Three-Wire Circuit
Single-Phase
Two-Wire Circuit
Single-Phase
Two-Wire Circuit
Single-Phase
Three-Wire or Three-Phase
Three-Wire Circuit
Load Current Measurement
Grounding Wire
Insert only one of the wires
through the jaws
Load
Load
Load
Load

Fluke 1630-2 Specifications

General

Type	Earth Ground Clamp Meter
Ground Resistance Range	0.025 Ω to 1500 Ω
Display	LCD
Data Logging	Yes
Operating Temperature	-10 °C to 50 °C
Storage Temperature	-20 °C to 60 °C
Ground Resistance Accuracy	±(1.5% + 0.02 Ω)
Jaw Opening	32 mm
Power Supply	AA batteries
Safety Rating	CAT IV 600 V
