Fluke 1630-2 User Manual

Earth Ground Clamp
Setup
11
Power Auto-Off
To save battery power, you can set the clamp to automatically
turn off the power after 20 minutes of no use.
To change the Auto-Off option:
1. Push  until : shows on the display.
2. Push  until
: shows on the display. See Figure 5.
3. Push  /  to toggle the setting between on and off.
The display updates to show the current setting:
• On: Clamp turns off after 20 minutes
• Off: Clamp does not turn off

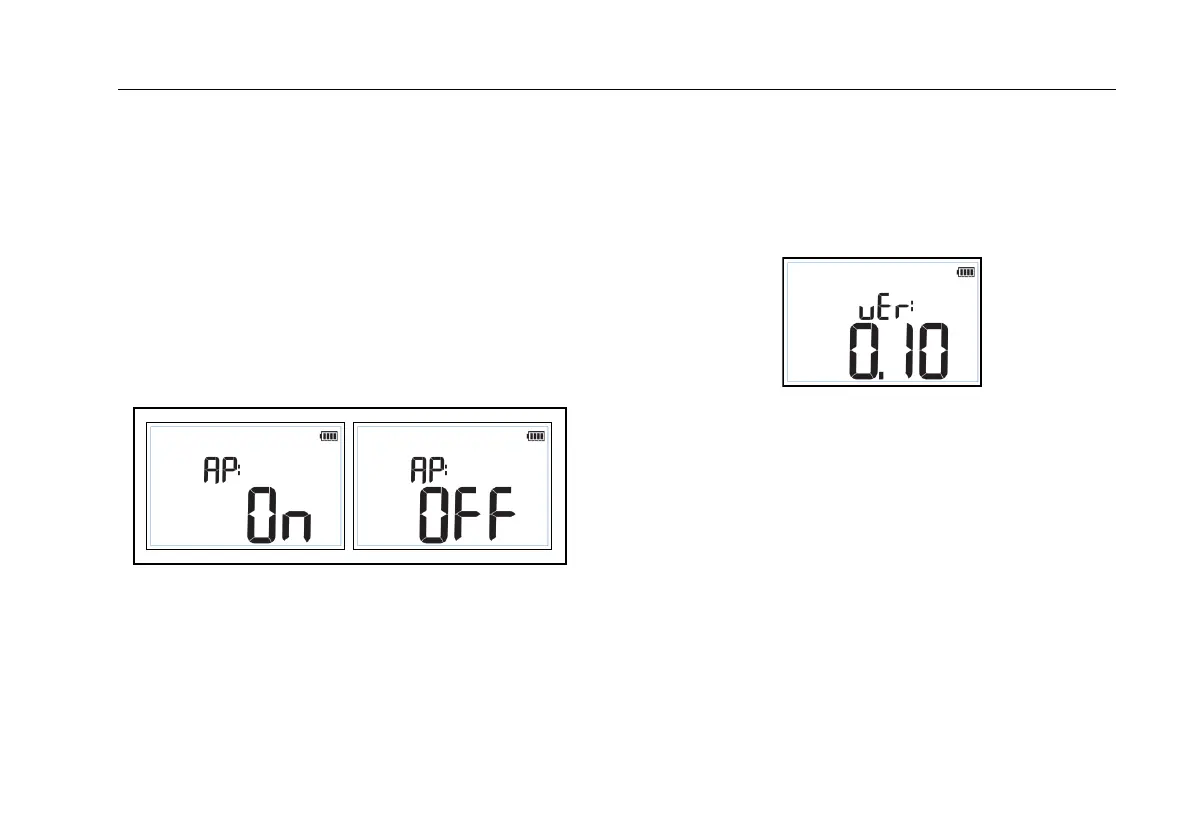

Figure 5. Auto-Off Power Setting
4. Push  to confirm the current input and move to the
next setting.
5. Push 
to go back to the measurement mode.
Firmware Version
To view the firmware version for the Clamp:
1. Push  until
: shows on the display.
2. Push  until : and the version number shows on the
display. See Figure 6.
Figure 6. Firmware Version
3. Push  to go back to the measurement mode.
