Logger/Monitor
Setup
17
Dashboard
The Dashboard sheet provides all parameters at a glance that are available with the Meter and Power
buttons on the instrument plus the phase angles and calculated Neutral current I
N
. You can configure phase
mapping, invert current inputs, and set the hardware range/mode of the current inputs, as well as configure
the used COM port in the dashboard. These settings are used also in all other sheets. See Table 7.

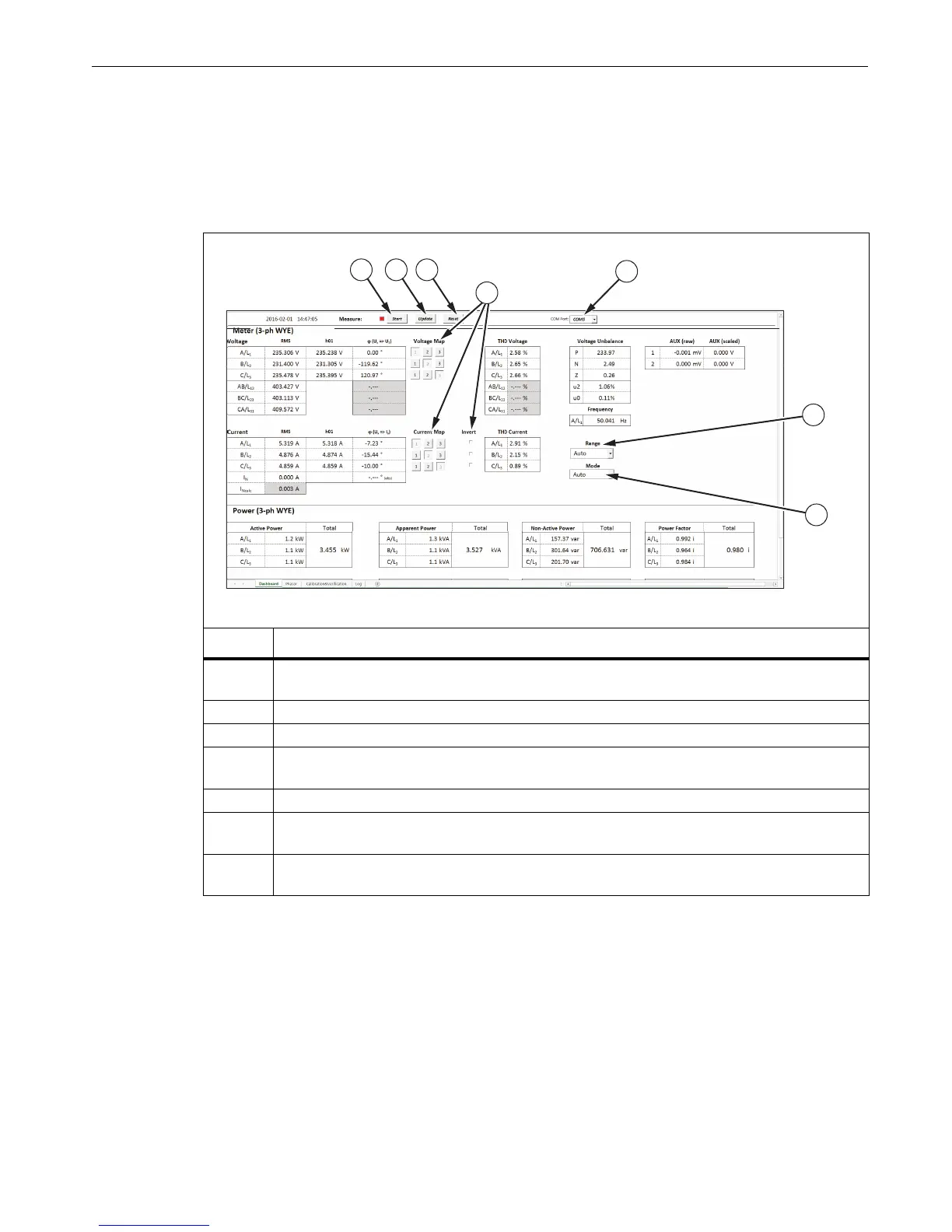

Table 7. Dashboard in Excel Worksheet
hcf100.eps
Item Description
Start live data read-out. The readings are refreshed every 1 s. Use the same button to stop live updates.
During the live updates only the Dashboard and Phasor sheets are accessible.
One time live data update.
Resets phase mapping and inverted current inputs to default.
Selected COM port. Click on the text to get a list of available COM ports. See USB Communication for
instructions on how to identify the port used by the Logger.
Phase mapping and inverting current inputs.
Configure Range as AUTO, High, or Low. Different from the Measurement configuration dialog on the
instrument, the settings High and Low can be configured without a connected sensor.
Configure the current input for Rogowski coils (Flexi coils) or Clamps. When set to AUTO, the attached
accessory determines the configuration.
