Electrical Specifications
75
Transducer length
iFlex 1500-12 .......................................... 305 mm (12 in)
iFlex 3000-24 .......................................... 610 mm (24 in)
iFlex 6000-36 .......................................... 915 mm (36 in)
Transducer cable diameter ......................... 7.5 mm (0.3 in)
Minimum bending radius............................. 38 mm (1.5 in)
Output cable length
iFlex 1500-12 .............................................. 2 m (6.6 ft)
iFlex 3000-24 & iFlex 6000-36 .................... 3 m (9.8 ft)
Weight
iFlex 1500-12 .......................................... 115 g
iFlex 3000-24 .......................................... 170 g
iFlex 6000-36 .......................................... 190 g
Material
Transducer cable .................................... TPR
Coupling ................................................. POM + ABS/PC
Output cable ........................................... TPR/PVC
Operating Temperature ............................. -20 °C to +70 °C
(-4 °F to 158°F)
temperature of conductor
under test shall not exceed
80°C (176°F)
Storage temperature ................................... -40 °C to +80 °C
(-40 °F to 176 °F)
Operating relative humidity, ....................... 15 % to 85 % noncondensing
IP Rating ..................................................... IEC 60529:IP50
Operating Altitude ....................................... 2000 m (6,500 ft) up to
4000 m (13,000 ft) derate to
1000 V CAT II/600 V CAT III/
300 V CAT IV
Storage Altitude .......................................... 12 km (40,000 ft)
Warranty ..................................................... 1 year
i40s-EL Current Clamp Specifications

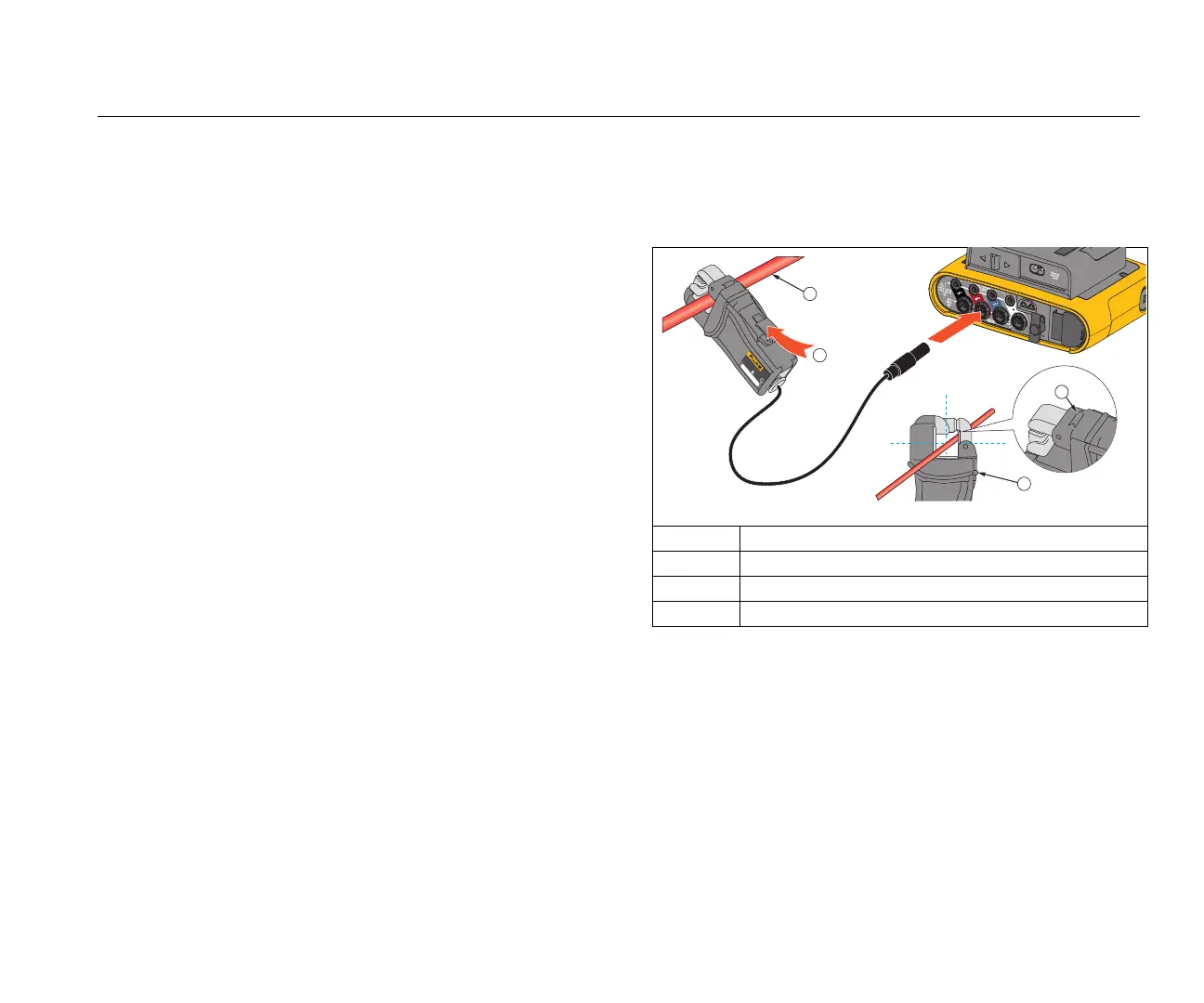

See Table 9 for setup instructions.
Table 9. i40s-EL Setup
hcf027.eps

Single Insulated current carrying conductor

Release button

Load direction arrow

Tactile barrier
Measuring range ..................................... 40 mA to 4 Aac / 0.4 Aac to 40 Aac
Crest factor ............................................. ≤3
Nondestructive current ............................ 200 A (50/60Hz)
Intrinsic Error at reference condition ....... ±0.5% of reading
Accuracy 173x + clamp ........................... ±(0.7 % of reading + 0.02% of
range)
