Digital Multimeters
How to Make Measurements
25
Bad Diode
+
+
Typical
Reading
Forward Bias
Reverse Bias
Bad Diode
Open
Shorted
Single Beep
or
gaq109.eps

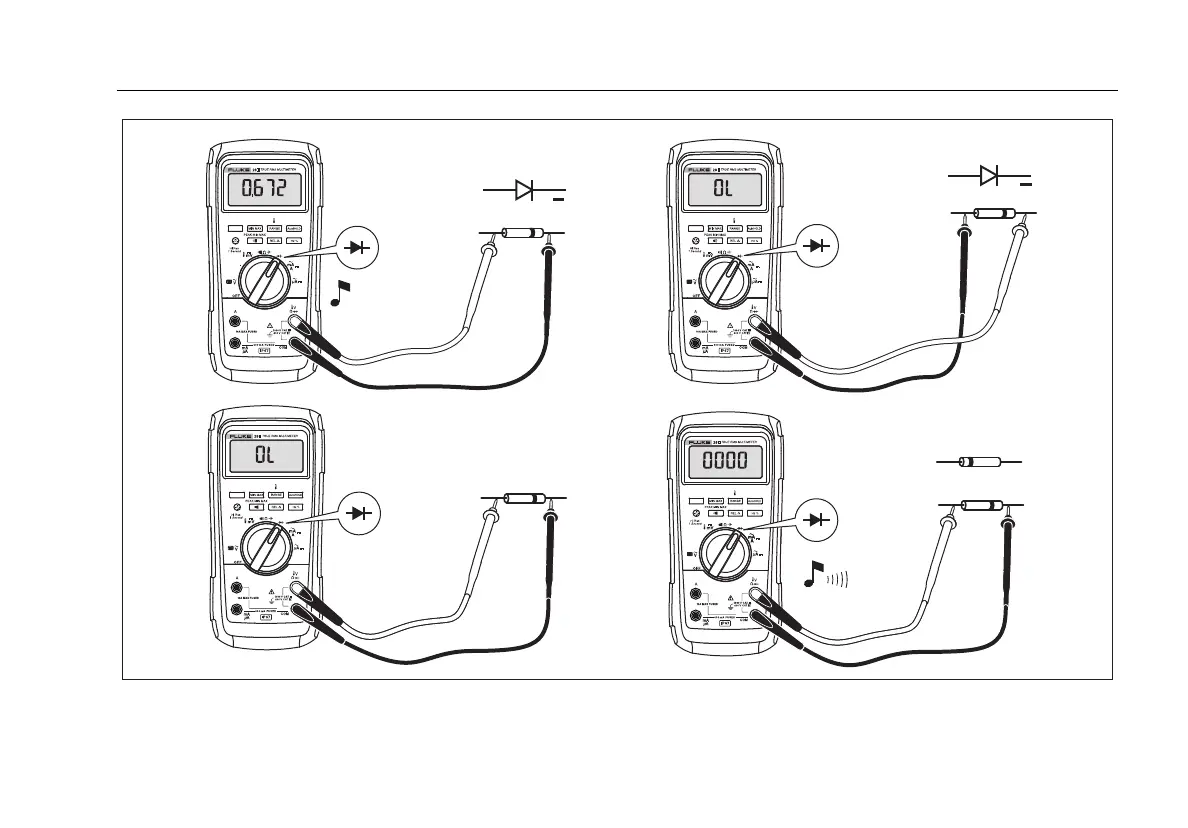

Figure 7. Diode Tests
