Digital Multimeters
How to Make Measurements
27
5
5
Circ
u
it Po
w
er:
OFF
to connect meter.
ON
for meas
u
rement.
OFF
to disconnect meter.
Current Through One Component
Total Current to Circuit
3
1
mA
A
A
4
2
gaq107.eps

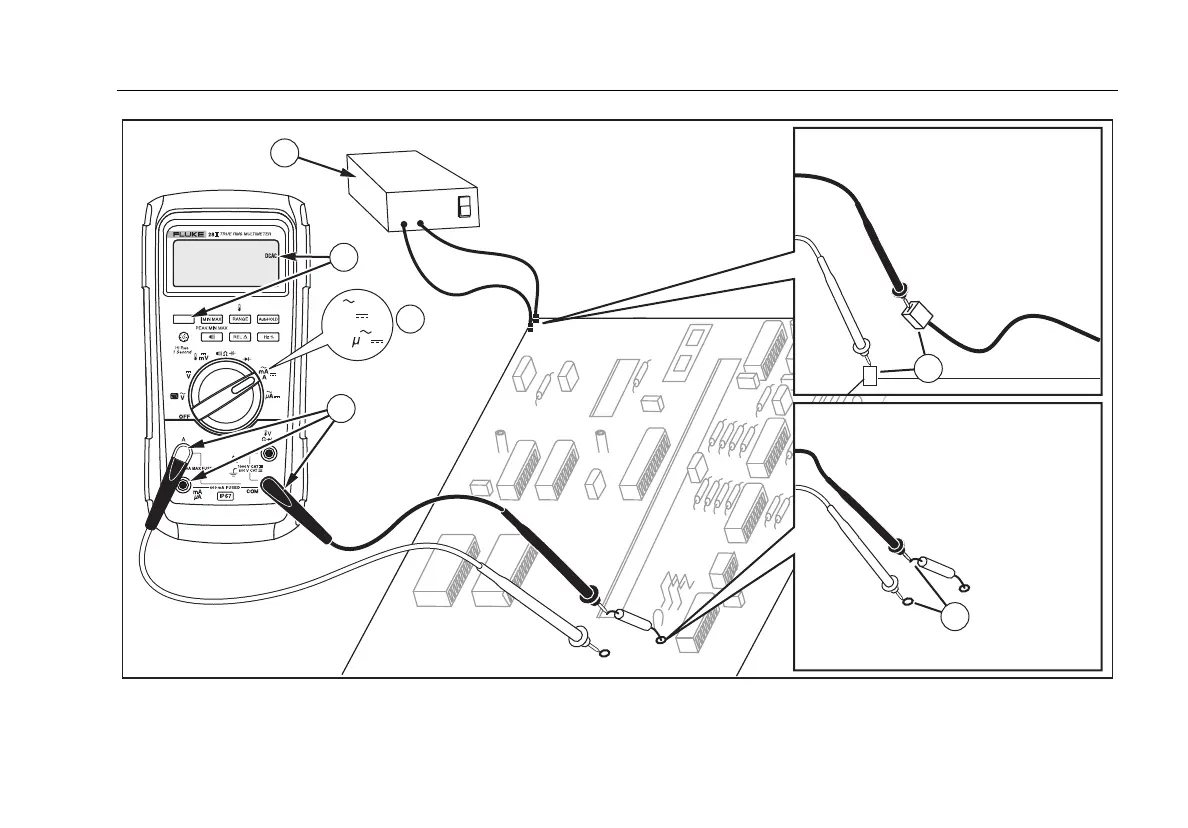

Figure 8. Current Measurem
ents
36
38
Table of Contents
Table of Contents
3
Introduction
11
How to Contact Fluke
11
Safety Information
12
Features
16
Automatic Power-Off
23
Input Alertâ„¢ Feature
23
Power-Up Options
23
How to Make Measurements
25
AC and DC Voltage Measurements
25
Zero Input Behavior of True-Rms Meters (28 II)
26
Low-Pass Filter (28 II)
26
Temperature Measurements (28 II)
27
Continuity Tests
28
Resistance Measurements
30
How to Use Conductance for High Resistance or Leakage Tests
32
Capacitance Measurements
33
Diode Tests
34
AC or DC Current Measurements
36
Frequency Measurements
39
Duty Cycle Measurements
41
How to Determine Pulse Width
42
Bargraph
42
Zoom Mode (Power up Option Only)
43
Uses for the Zoom Mode
43
Hires Mode (28 II)
43
MIN MAX Recording Mode
44
Smooth Feature (Power up Option Only)
44
Autohold Mode
46
Relative Mode
46
Maintenance
47
General Maintenance
47
Fuse Test
47
How to Replace the Batteries
48
How to Replace the Fuses
49
Service and Parts
49
General Specifications
54
Detailed Specifications
56
27 II AC Voltage
56
AC Voltage
57
DC Voltage, Conductance, and Resistance
58
Temperature (28 II Only)
59
AC Current
59
DC Current
60
Capacitance
60
Diode
61
Frequency
61
Frequency Counter Sensitivity and Trigger Levels
61
Duty Cycle (VDC and MVDC)
62
Input Characteristics
62
MIN MAX Recording
63
