417D/424D
Users Manual
6

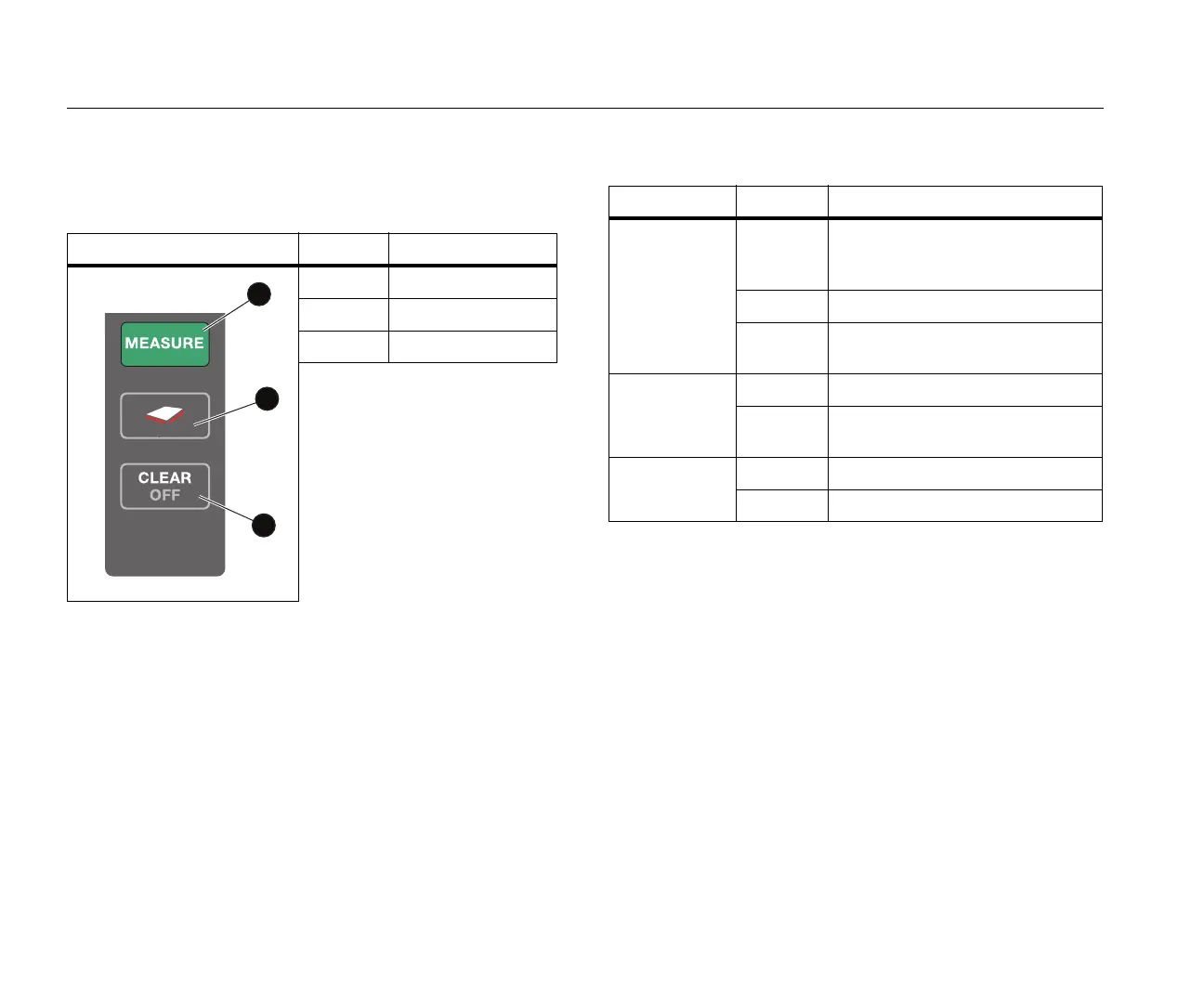

Keypad
Table 4 shows the buttons on the keypad on the 417D. Table 6
shows the keypad of the 424D.
Table 4. Keypad 417D
Item Description
On/Measure
Area/Units
Clear/Off
Table 5. 417D Button Operation
Button Pushes Function
>
1x
Turn on the Product and laser.
(The battery symbol shows by
default.)
2x Take a measurement.
2 seconds
Continuous measurement mode.
To cancel, push again.
=
1x Start an area measurement.
2 seconds
Select units of measure (see
Table 8).
<
1x Clear last measurement.
2 seconds Turn off the Product.
