Users Manual
Description of the Tests
23
Substitute Leakage Current Test (I
SL
)
The test measures the leakage current between
• the earth pin of the appliance cable plug (Class I)
or
• the test probe attached to the appliance under test
(Class II)
and the Live and Neutral pins of the appliance (pins are
connected together within the tester for this test).
It is essential to refer to standards and/or guidance
material for the safe applicability of this test.
Remarks:
• Connect the appliance and the test probe as indicated
on the display, see fig. 7 and fig. 8.
• For Class I appliances no test probe is required.
• For Class II appliances apply the test probe to any
exposed metalwork on the appliance. Do the test for all
exposed metal parts on the appliance.

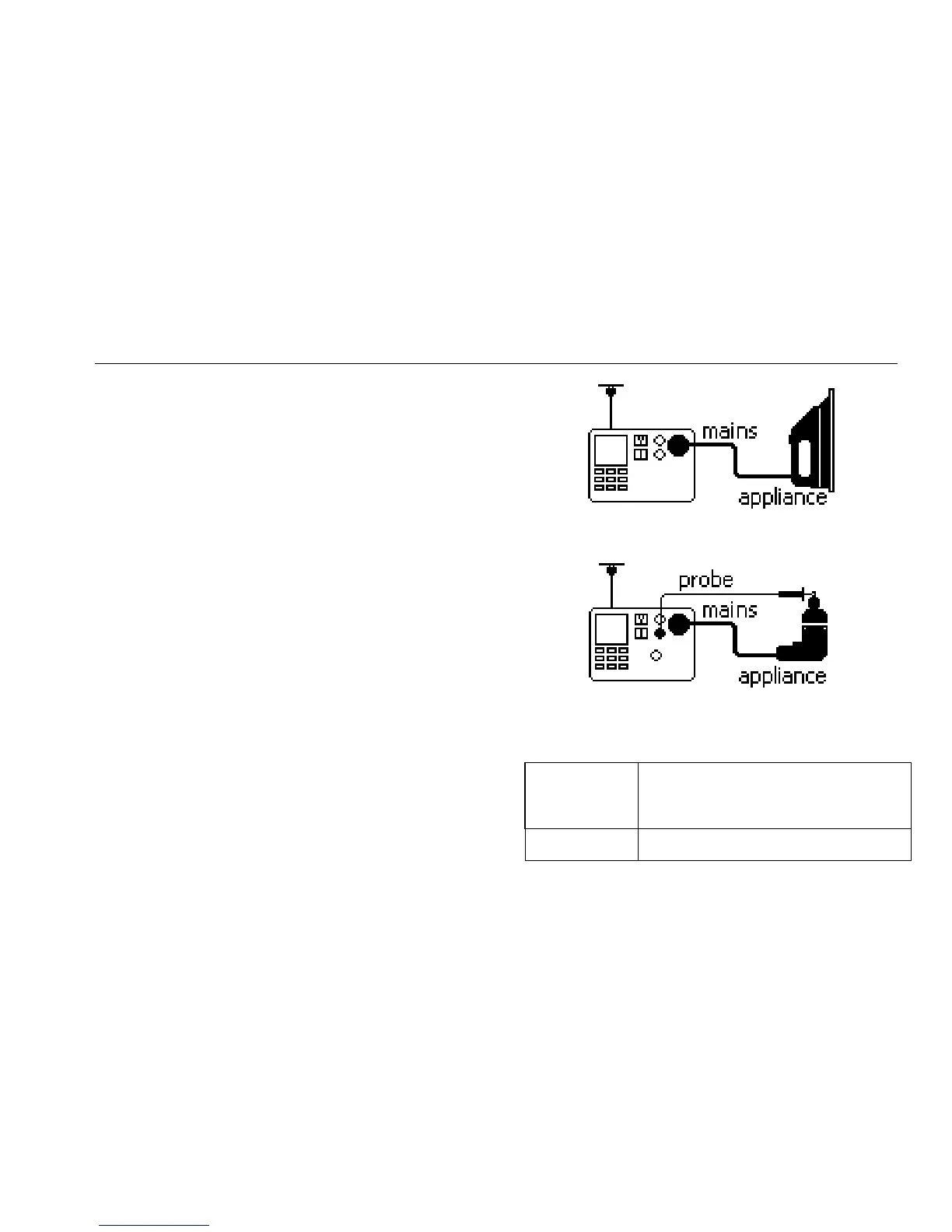

Figure 7. Substitute Leakage Test Connections Cl. I
Figure 8. Substitute Leakage Test Connections Cl. II
The display can show the following specific information:
LMT
> 3.5 mA
The acceptable test limit may have been
exceeded. Refer to standards and/or
guidance material.
> 19.99 mA
I
SL
overrange.
