Use the BTL20 Interactive Test Probe
Understand the Display 4
4-3
Understand the Display

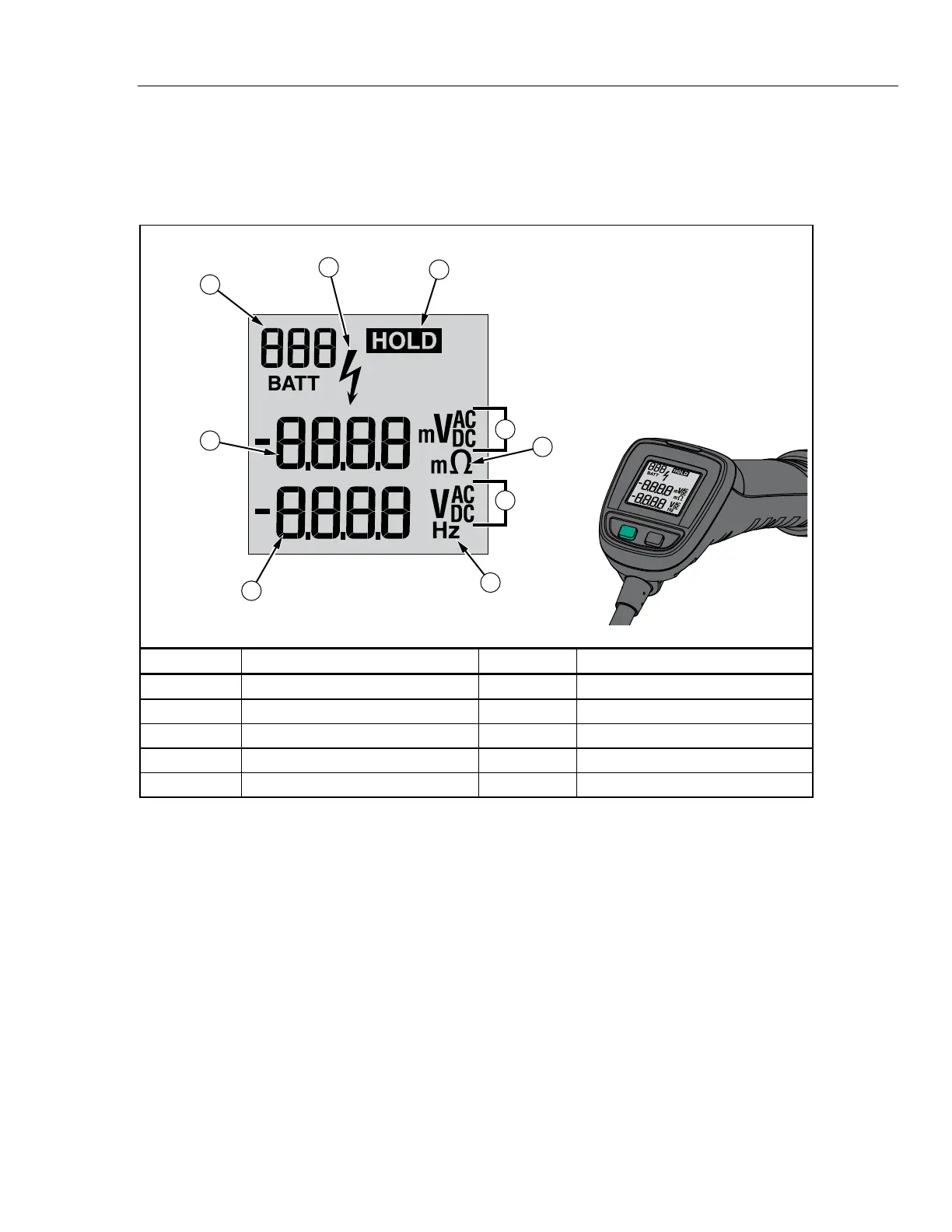

Table 4-2 describes the typical elements on the display of the BTL20 Interactive Test
Probe.
Table 4-2. Typical Elements on the BTL20 Display
1
2
3
5
7
8
9
6
4
hsn027.eps
Item No. Description Item No. Description
 Battery ID(Sequence mode)  V ac or V dc
 Hazardous voltage  Unit of frequency
 AutoHold function is enabled.  Voltage or frequency reading
 V ac, mV ac, or V dc  Voltage or resistance reading
 Unit of resistance

Fluke BT520 Specifications

General

Data Logging	Yes
Wireless Communication	Bluetooth
Battery Types	12 V
Resolution (Voltage)	0.001V
Display	LCD, backlit
Storage Temperature	-20°C to 50°C
Dimensions	10 cm x 100mm
Power Source	Rechargeable Li-ion battery
