Model 787
Calibration Manual
22
DC Millivolts Measurement Test
1. Put the calibrator in Standby (STBY) mode.
2. Put the UUT rotary switch in the
mL (dc Millivolts) position.
3. Connect the calibrator to the
COM and z terminals on the UUT as shown in
Figure 9.
4. Apply the values from the calibrator shown in Table 8 and compare the readings on
the UUT to the acceptable readings shown.
Table 8. DC mV Test
787 Range Calibrator DC Voltage Minimum Reading Maximum Reading
No Range Switching 100 mV 99.8 mV 100.2 mV
No Range Switching 300 mV 299.6 mV 300.4 mV
OFF
A
mA
COM
V
1000V
30mA
FUSED
0.44A
(1A/30 sec)
FUSED
mA
mA
A
mA
OUTPUT 0-24mA
SOURCE SIMULATE
+ +
% STEP COARSE FINE
mV
V
V
OUTPUT
CAT
787
PROCESSMETER
MIN MAX RANGE HOLD
H
REL Hz
UUT
5500A
POWER
I
O
0•
123
456
789
ENTER
M
k
m
VHz
FIELD
EDIT
/
+
F
OPR EARTH SCOPE BOOST MENU
PREV
SHIFT
RESET
CE
SETUP
REF
NEW
TC
MEAS
¡F
µ
n
p
W
dBm sec
¡CA
MULT
x
DIV
÷
OUT
TRIG
5500A
CALIBRATOR
20V PK
MAX
HI
LO
TC
TRIG
OUT
1000V
RMS
MAX
20V
RMS
MAX
1V PK
MAX
20V PK
MAX
NORMAL AUX
SCOPE
V, ,
RTD
A, -SENSE,
AUX V
200V PK
MAX
STBY
LT0005F.EPS

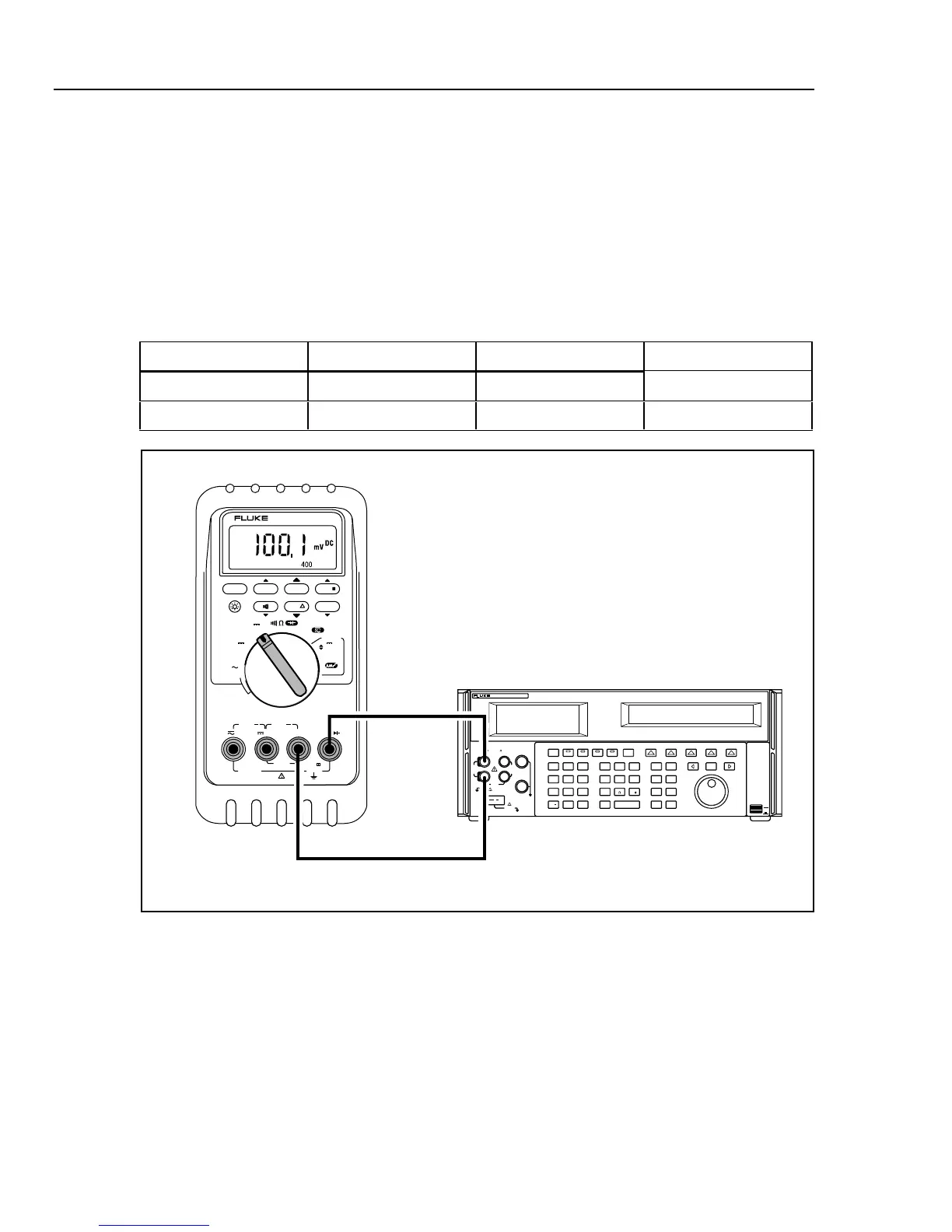

Figure 9. DC mV Measurement Test Connections
