check the wire if firmly clamped by the terminal

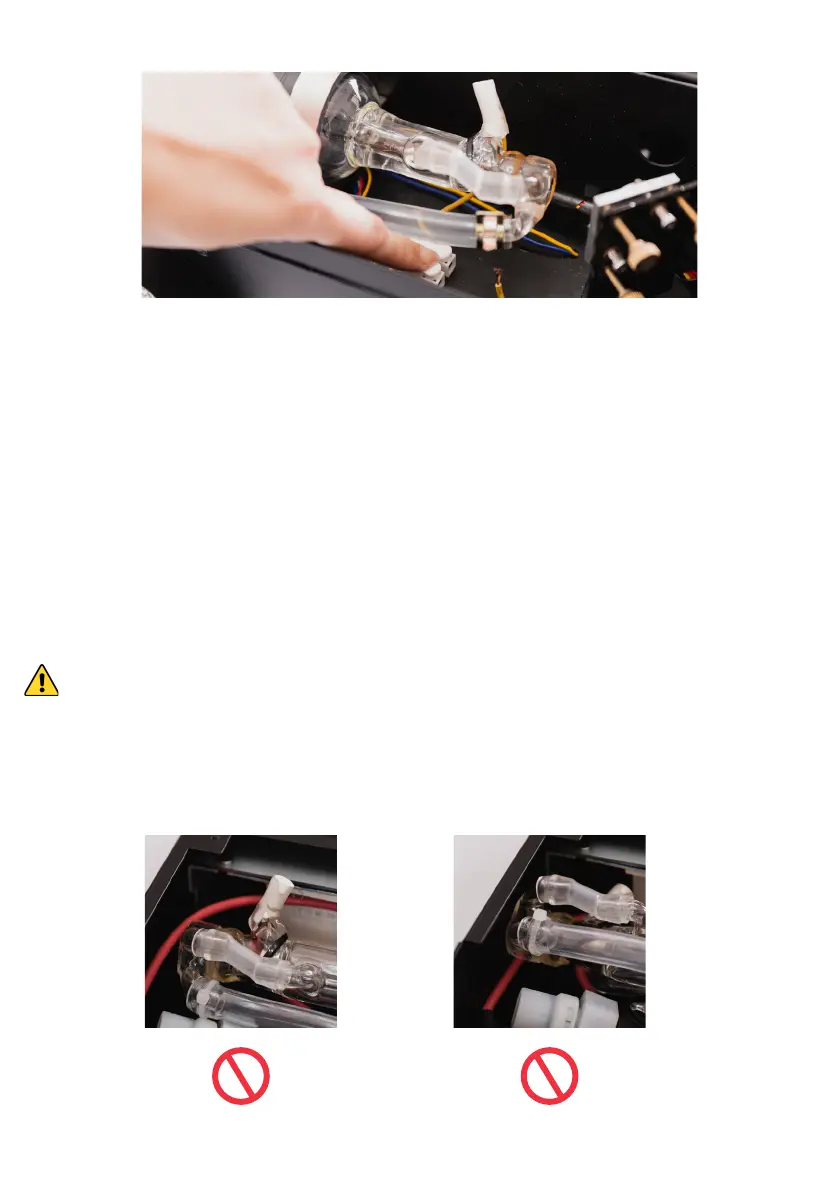

14. Place the laser tube into the chassis. Make sure
the gap is wider than a finger on both ends of the
tube. The terminal on the laser tube which connected
to the thick red wire should point upward. Install the
screws of the tube holder clip and make sure the
tube is fastened firmly.
Make sure the terminal of the red cable points upward
instead of another angle. Do not let the end of the
tube touch or close to the side of the chassis. Wrong
placement for the tube may cause voltage leak.
