Flyabilty Elios 2 - Motor Replacement

10
–
Maintenance
ELIOS 2 USER MANUAL Page 100 of 106

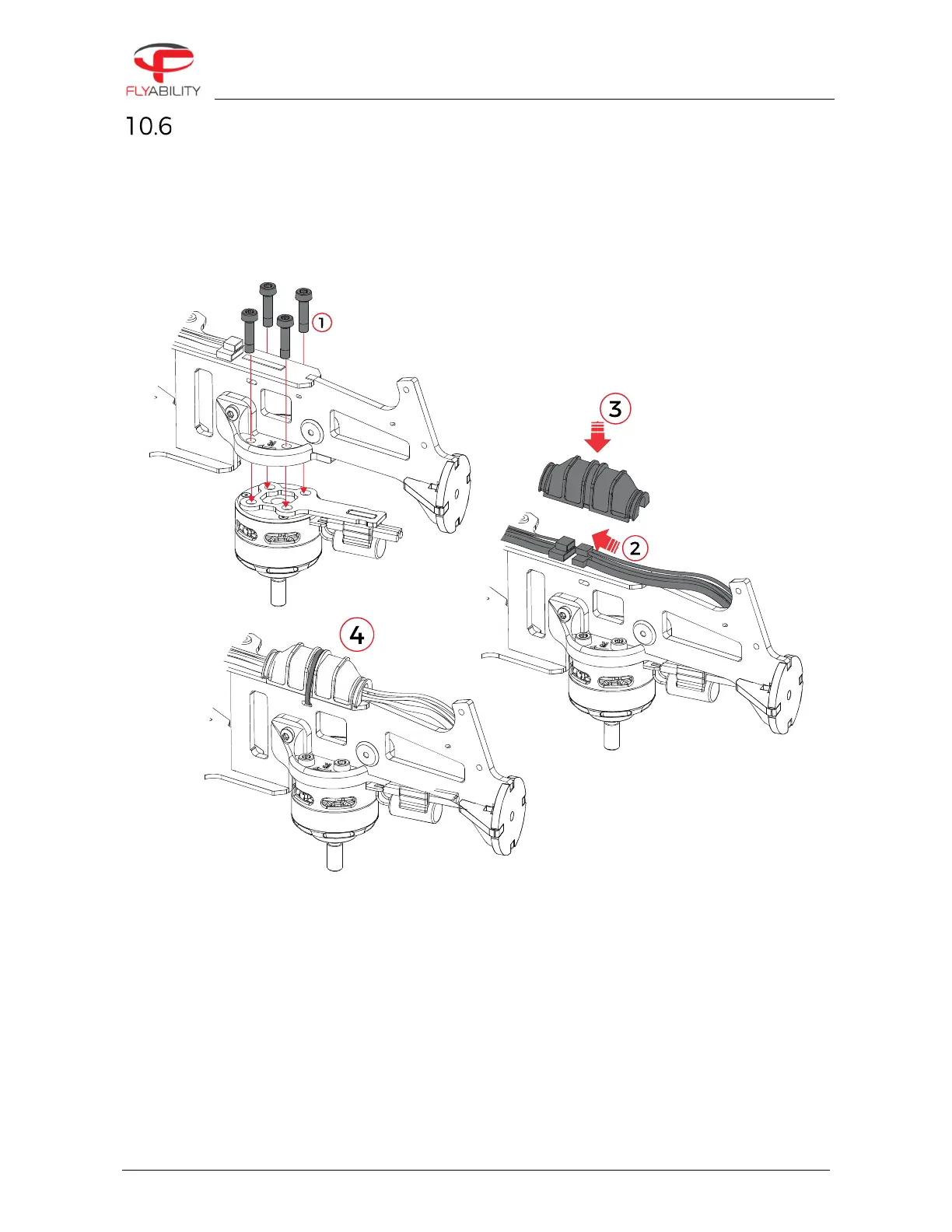

Changing a Motor
REQUIRED TOOLS:
- Motor
- T10 screwdriver
- T10 screws x4
- Zip tie 2.5mm
1- Screw the new motor to the motor mount. Tighten firmly.
2- Connect the power and signal cables.
3- Place the connector cover over the cables’ connectors.
4- Fix the connector cover with a 2.5mm zip tie.
