Flyabilty Elios 2 - Changing a Battery Strap

10
–
Maintenance
ELIOS 2 USER MANUAL Page 99 of 106

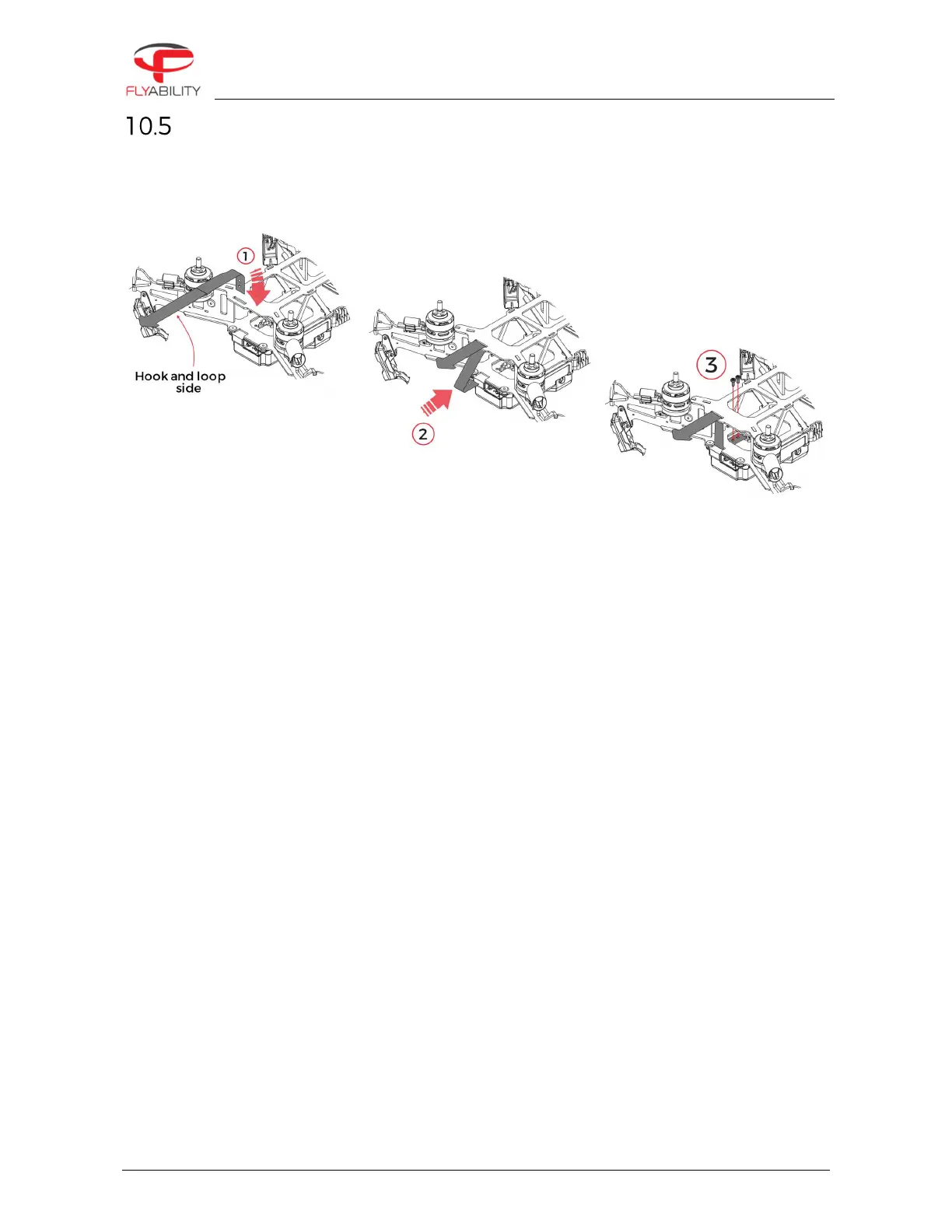

Changing a battery strap
REQUIRED TOOLS:
- Battery strap
- Screwdriver
1- Insert the battery strap into the bottom loop on the carbon frame. The hooks-and-loops from the
strap must be looking towards the electronic stack.
2- Slide the battery strap between the carbon frame and the electronic stack aligning the holes with
the screw threads.
3- Insert the screws. Tighten then with two fingers strength.
