ELIOS 2 USER MANUAL Page 28 of 106
Distance measurement

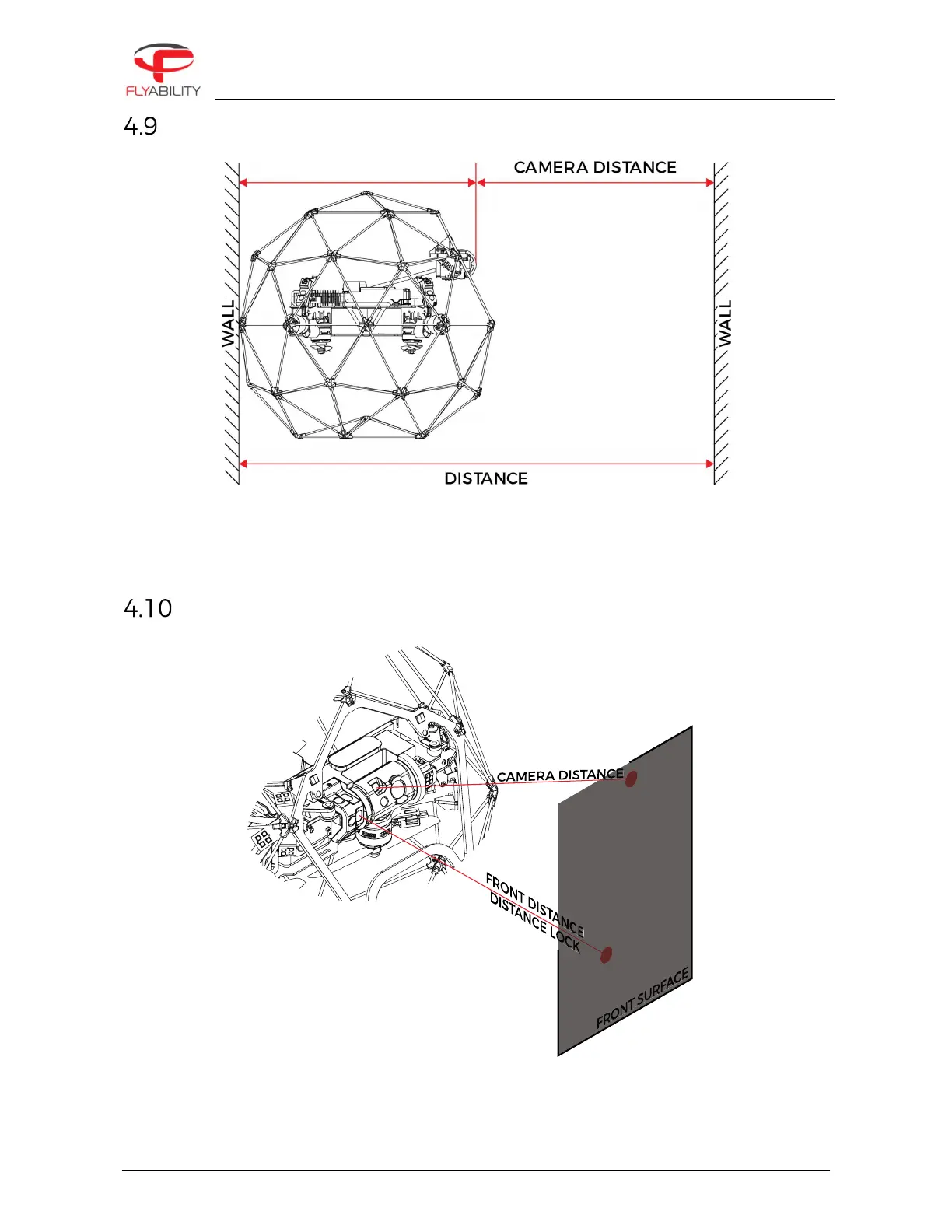

ELIOS two can be used to measure distance between two walls. By placing the aircraft back against one of the
walls, the distance between the two walls is given by:
Distance = Camera distance + 34cm
Distance lock
Figure 6 The camera distance sensor follows the camera head pitch. The Front distance sensor is fixed on the
payload frame.
