Flying ELIOS 2

ELIOS 2 USER MANUAL Page 27 of 106

2D measurements

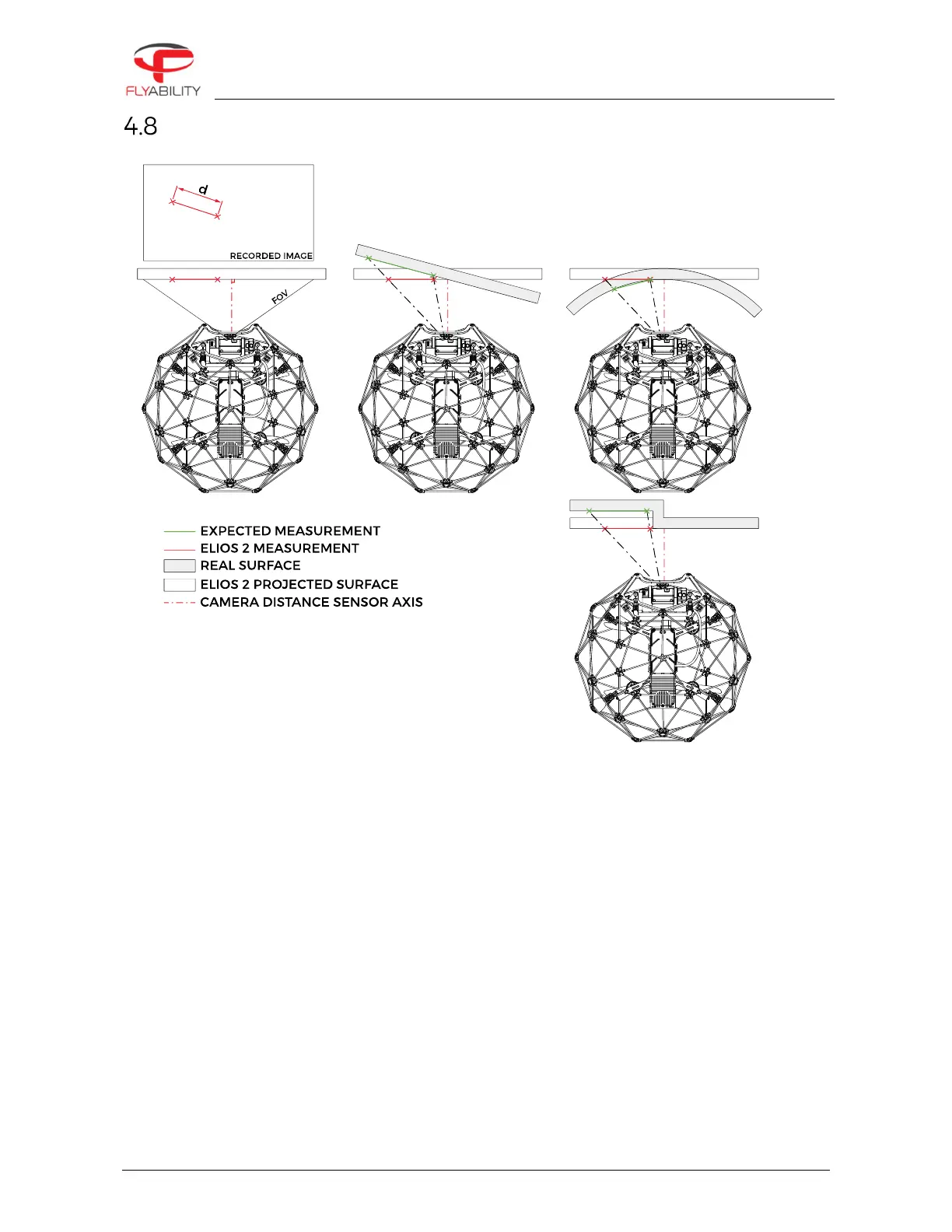

Figure 5 Example showing the limitation of the 2D measurement considering the geometric constraints

Limitation: The feature to measure needs to be on a flat surface perpendicular to the Camera optical axis. The

accuracy of the measurement is ±10% of the measured length with a maximum of ±5mm accuracy.

Thanks to its Camera distance sensor, ELIOS 2 is capable of measuring the size of a feature on a flat surface

using the post-processing software Flyability Inspector.
