Appendix C: SCADA Systems
Flygt SCADA System (Aquaview)

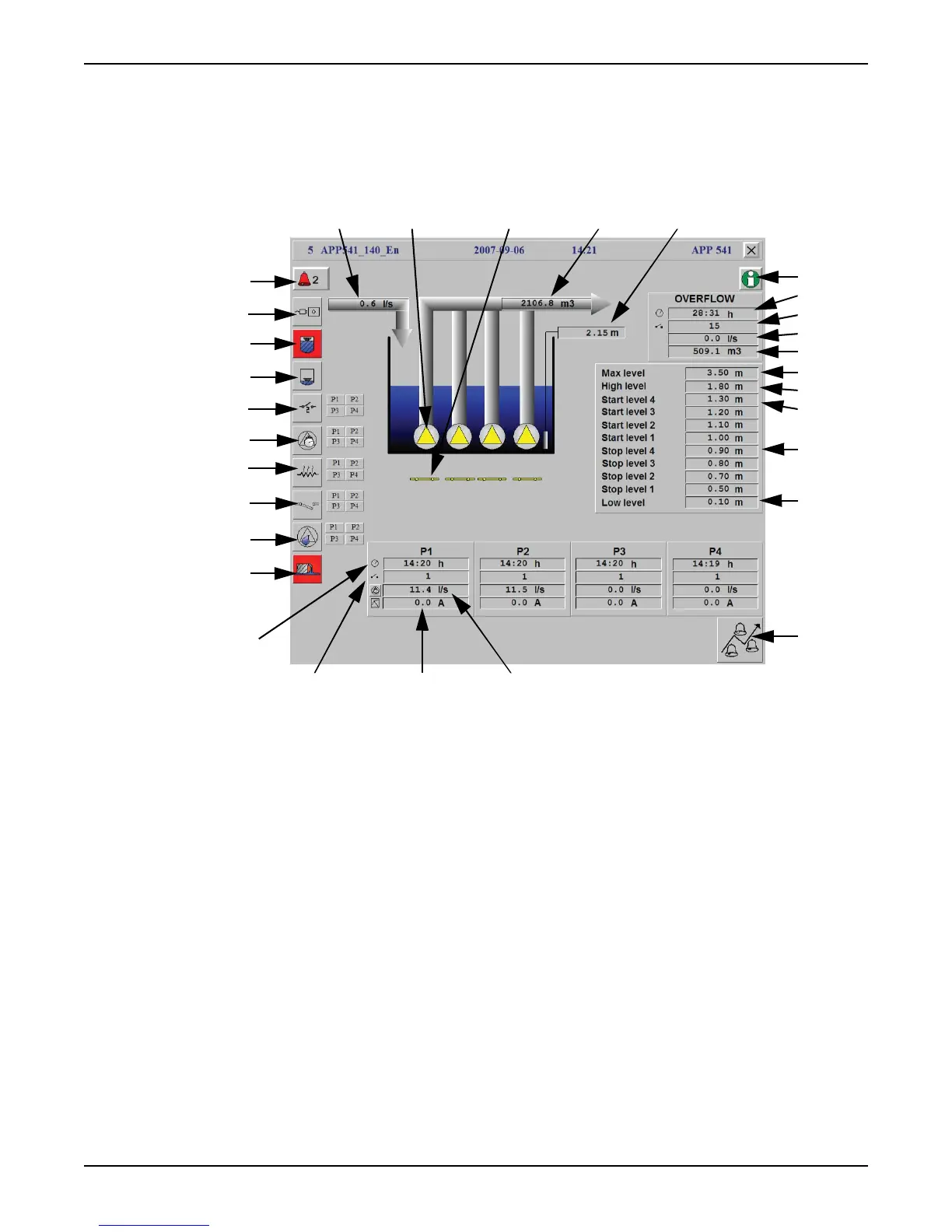

The figure below shows an example of the AquaView status view.
1 2 3 4 5
6
7
8
9
10
11
12
13
14
15
16
171819
20
21
22
23
24
25
26
27
28
29
30
1. Free flow
2. P1 pump status
3. P1 relay status
4. Pumped volume
5. Level
6. RTU info
7. Overflow time
8. Overflow count
9. Overflow flow
10. Overflow volume
11. Max level
12. High level
13. Start level
14. Stop level
15. Low level
16. Alarm handling (local/remote)
17. P1 capacity
18. P1 current
19. P1 starts
20. P1 run time
