3.3.2 Console 907Plus Multiplexer Card (907+C)
Card P/N
907-0026-00
Config. Dwg.
907-2036-00
Diagnostics:
907-DIAG-E Compatible
Top and side views of the 907Plus console card are shown in Figure 3-11. The 907Plus console card is
nearly identical in electrical and optical design in that all LEDs, both switches, the power interface, and data
faces are identical to that described for the remote 907Plus, except at the video connectors, which are
outputs on the console and inputs on the remote.
A 907-DIAG-E diagnostic card may be added to the same stack as the 907+C to obtain critical system
diagnostics of both the remote and console stacks through an Ethernet interface. Details of the 907- DIAG-E
card are provided in the System Modules section.

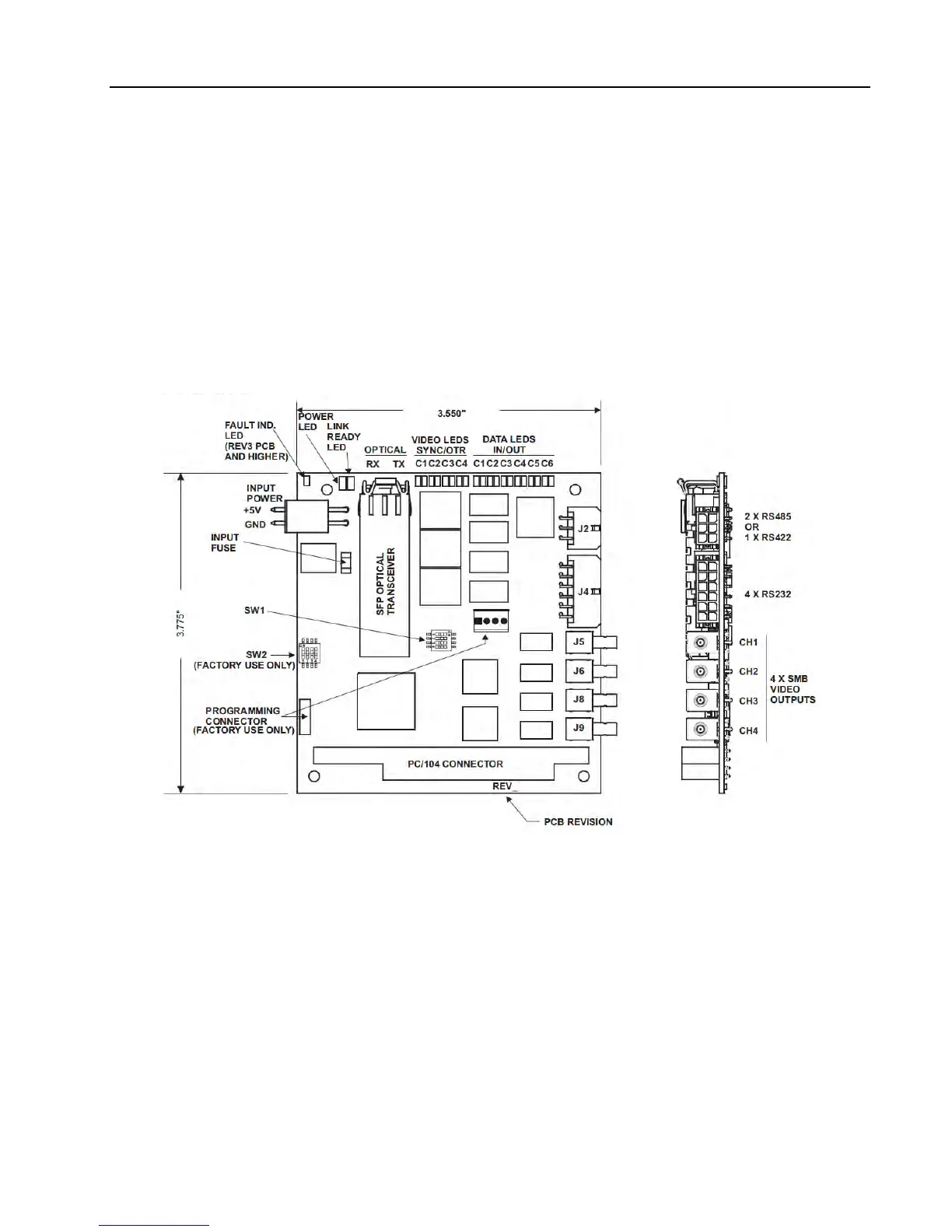

Figure 3-11: 907+C Multiplexer Card
Note: The mating video connectors and cables should be 75-ohm impedance.
