Focal 907 - 907-PC104 (907 to Standard PC;104 Adaptor); Figure 6-3: 907-PC104, 907 to Standard PC;104 Adaptor

907-0601-00 Rev. C Model 907 Video/Data Multiplexer – User’s Guide
Focal Technologies Corp. Page 6-3
6.2 907-PC104 (907 to Standard PC/104 Adaptor)
Card P/N
907-0205-00
Config. Dwg.
907-2010-00
Model 907 cards use a proprietary PC/104-connector pin designation for backplane communication and
power. If a system requires the Model 907 stack to be directly connected to a standard PC/104 stack, the
907-PC/104 Adaptor board must be used to prevent damage. This card provides isolation between the
PC/104 backplane and the Focal 907 stack. Only the +5 V pins and the GND pins are connected through the
PC/104 connector. Figure 6-3 shows the 907-PC104 adaptor board.
REMOVE PINS A1 - A29
B14 - B19
C2 - C19
D2, D3, D11-18
J1 MODIFICATIONS
A
B
1
32
1
20
C
D

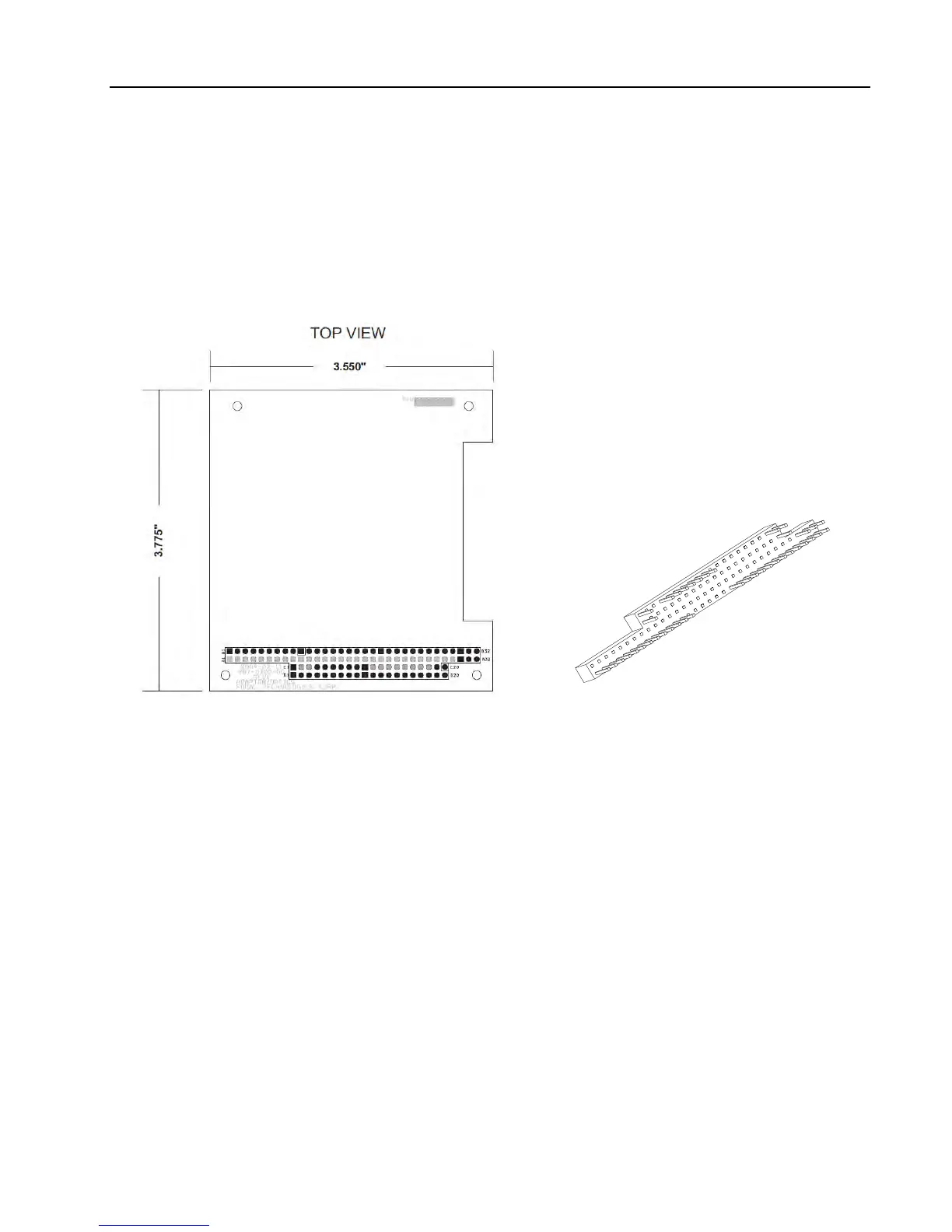

Figure 6-3: 907-PC104, 907 to Standard PC/104 Adaptor
Recommended practice, however, is to power the Model 907 card stack separately from any standard PC/104
stack.
