Focal 907 - 907-232 (8-Channel RS-232 Card); Figure 5-2: 907-232, RS-232 Expansion Card

907-0601-00 Rev. C Model 907 Video/Data Multiplexer – User’s Guide
Focal Technologies Corp. Page 5-3
5.2 907-232 (8-Channel RS-232 Card)
Card P/N
907-0212-00
Config. Dwg.
907-2008-00
Diagnostics:
LEDs Only
The 8-channel RS-232 expansion card is shown below in Figure 5-2. All eight RS-232 channels are combined
on a single high speed serial stream (8:1), which is transported over a single data port channel on the
motherboard.

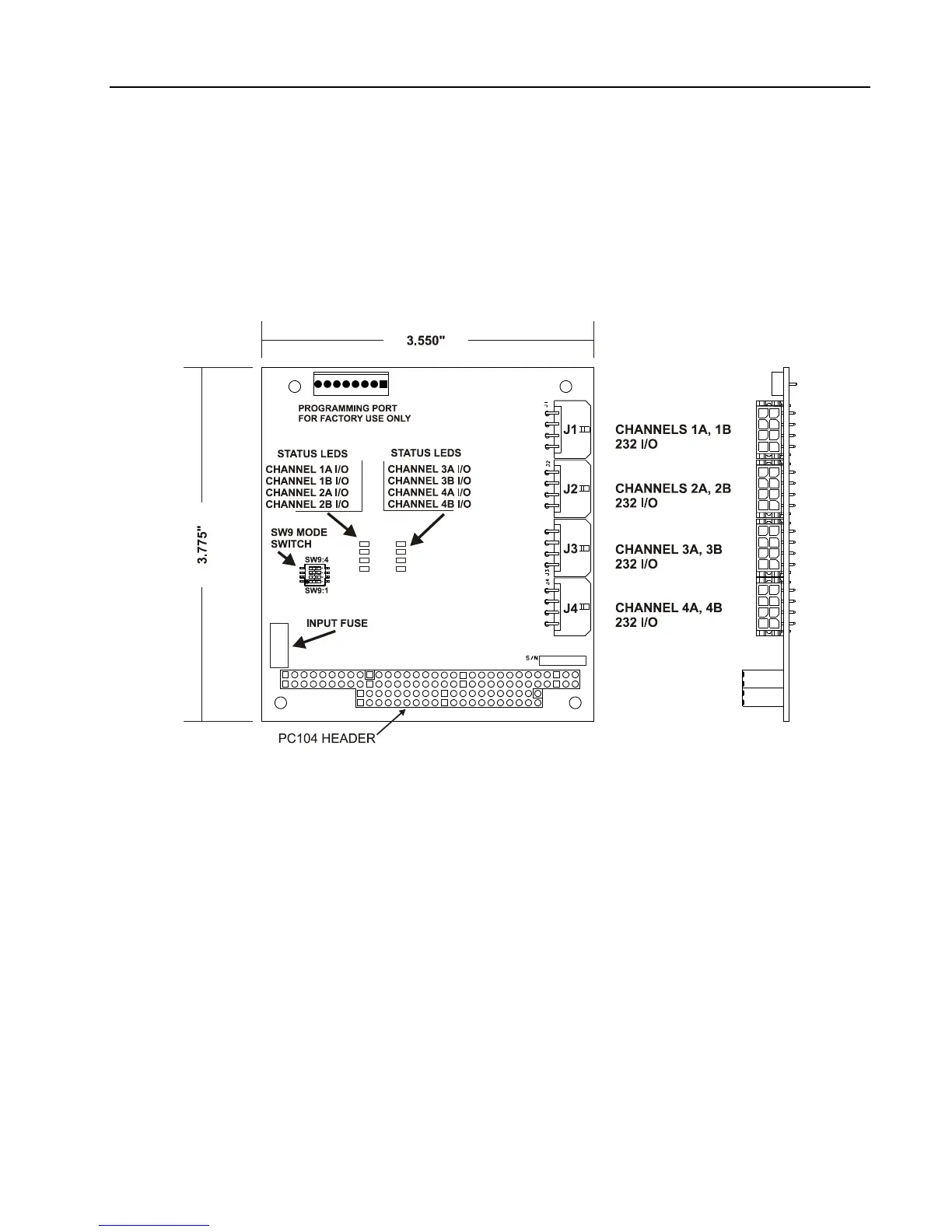

Figure 5-2: 907-232, RS-232 Expansion Card
Configure switch SW9 to set the backplane data port used by the 907-232 card. Ports 3~6 are available. The
default setting is data port #3.
