907-0601-00 Rev. C Model 907 Video/Data Multiplexer – User’s Guide
Focal Technologies Corp. Page 3-13
Option B: 907-HDM2 Dual Video (Full Sampling), factory modification option.
This option provides two full HD-SDI video channels without ancillary data embedded in the data stream and
it is typically used when two full HD-SDI video signals are required for video processing. This option does not
support any expansion cards or on board serial data.

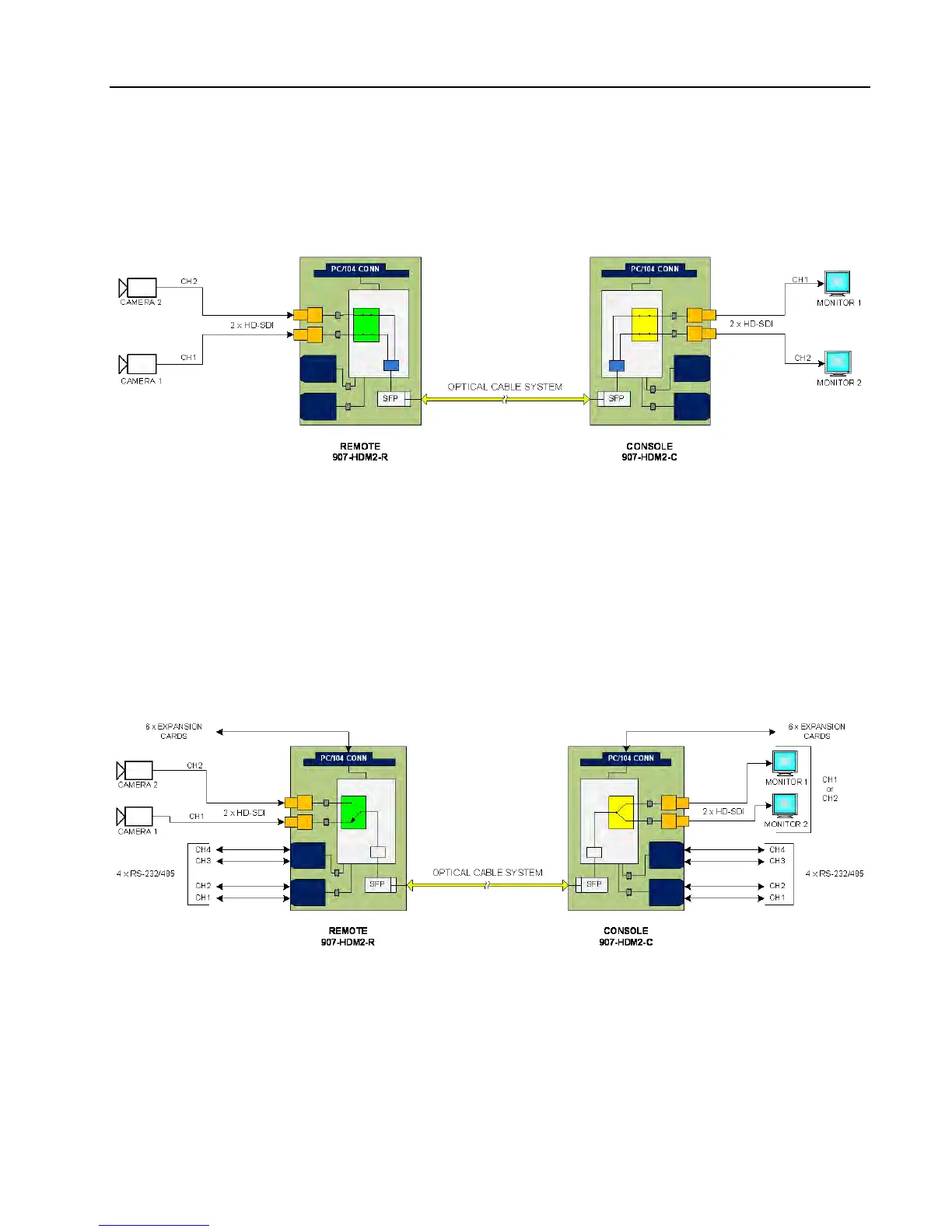

Figure 3-14: On board I/O Channels for 907-HDM2-R and 907-HDM2-C
Multiplexer Motherboard Cards (Dual Video Channel – Full Sampling)
Option C: 907-HDM2 Single Video Channel (Full Sampling, Switched Dual Input), factory modification option.
With this option two different full HD-SDI signals can be input at the remote end but only one HD-SDI signal
can be transmitted over the optical link. At the console end, two outputs are provided with the same HD-SDI
signal (either HD-SDI CH1 or CH2) so that the signal can be simultaneously connected to an HD-SDI
recorder and monitor. The remote card defaults to HD-SDI channel 1 input but can be switched to channel 2
via the 907-DIAG-E card. This option supports up to six expansion cards and the ancillary data of the HD-SDI
signal is embedded in the optical link.
Figure 3-15: On board I/O Channels for 907-HDM2-R and 907-HDM2-C
Multiplexer Motherboard Cards (Single Video Channel – Full Sampling, Switched Dual Input)
