Focusrite Clarett 2Pre User Manual

11
Examples of Usage
The Clarett 2Pre is an excellent choice for numerous recording and monitoring applications.
Some typical congurations are shown below.

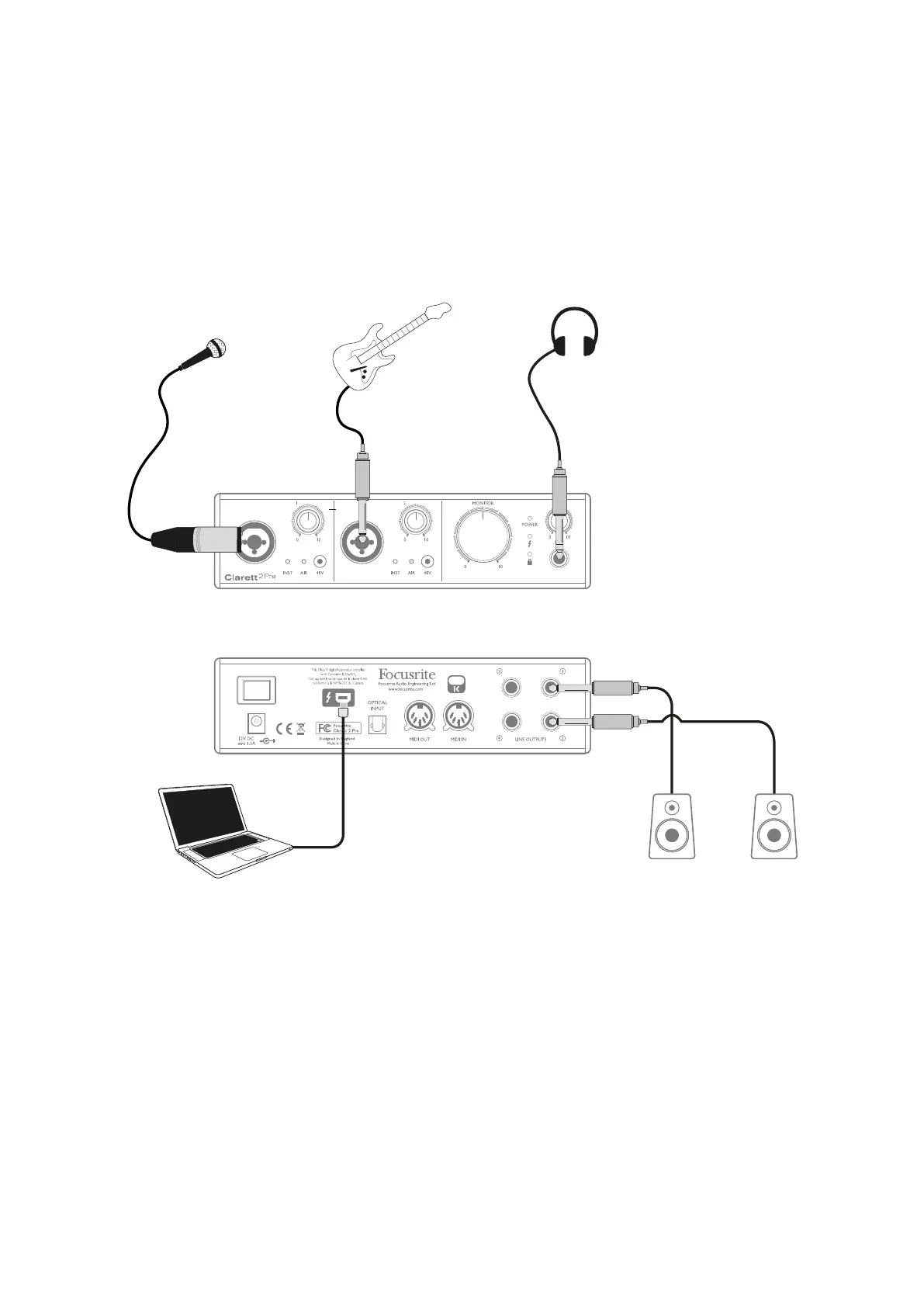

1. Recording a solo artist
This setup illustrates a typical conguration for multitrack recording with DAW software on your
computer.
In this case, two sources – a microphone and a guitar – are connected to the Clarett 2Pre’s inputs. As
the guitar is connected to Input 2, ensure INST mode is selected for Input 2 from Focusrite Control,
and the INST LED is illuminated.
The connection to the computer running DAW software is via a Thunderbolt™ cable. This will carry
all the input and output signals between the DAW and the Clarett 2Pre. Once the audio setup is
correctly congured in the DAW, each input source will be available for recording in the DAW.
A mix of the recorded tracks will be available at Line Outputs 1 and 2, so you can hear the results on
the speakers.

Focusrite Clarett 2Pre Specifications

General

Type	Audio Interface
Number of Mic Preamps	2
Phantom Power	Yes
Digital Inputs	1 x Optical Toslink (ADAT)
Digital Outputs	1 x Optical Toslink (ADAT)
Headphones	1 x 1/4"
USB	1 x USB-C
Simultaneous I/O	10 x 4
A/D Resolution	24-bit/192kHz
MIDI I/O	No
Analog Inputs	2 x XLR-1/4" combo
Power Supply	USB bus powered or external power supply
Software	Focusrite Control
