Control Surface Operation
Control 2802 Logic Pro Automation & Control Surface Manual 19

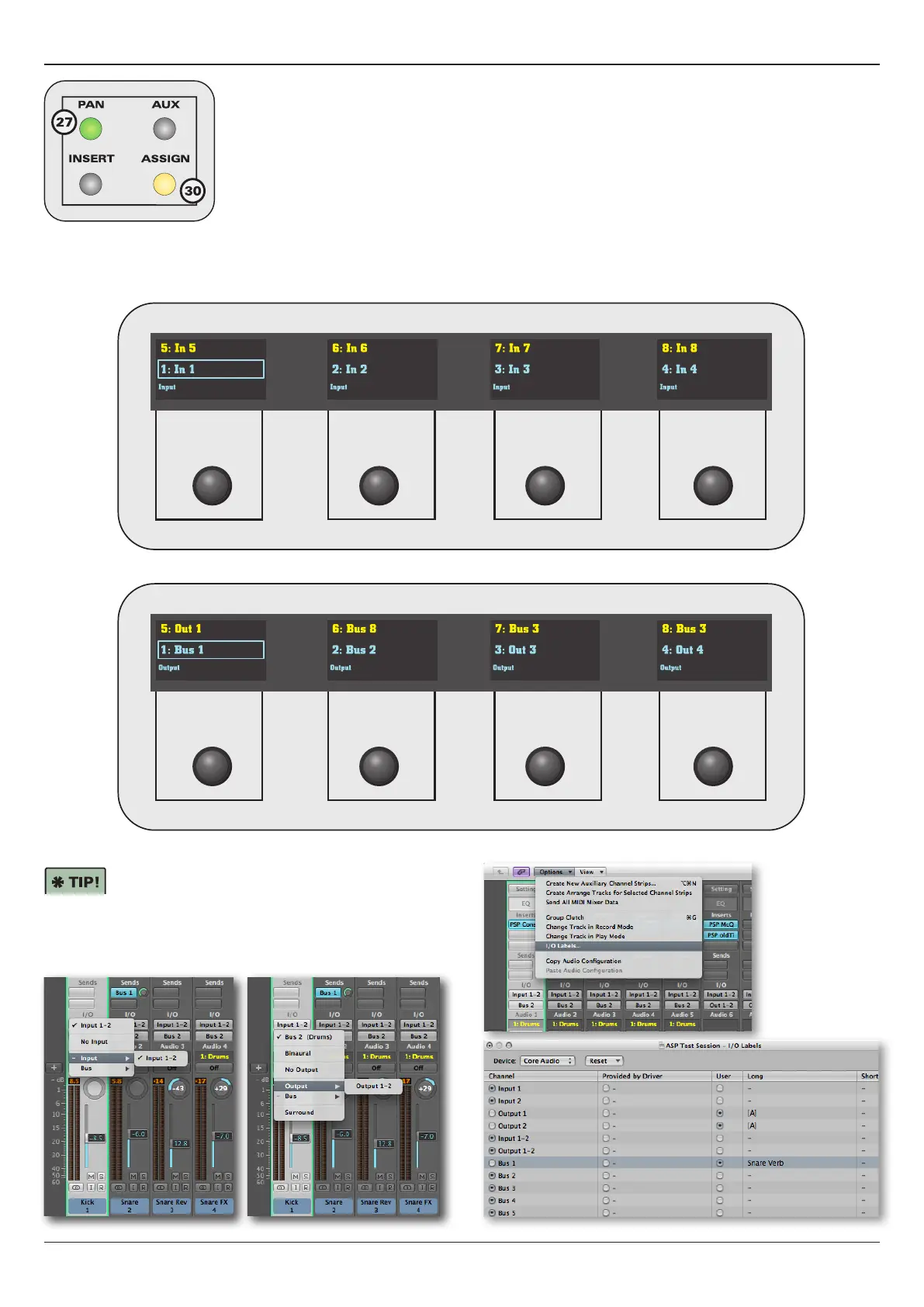

I/O Assignment - PAN (27) + ASSIGN (30)
By pressing the ASSIGN switch (30) when in PAN mode, the encoders provide access to channel input
and output routing - ideal for assigning inputs when recording, or conguring output bussing during
mixdown.
Input assignments are set on the rst page. Use the PAGE keys (26) to access output assignments on
page 2. When dealing with outputs, you may assign onto busses as well as to physical outputs.
To change an assignment, rotate the encoder to the desired input, bus or output - your selection ashes on the OLED display. Press
down on the encoder to conrm the assignment.
Input Assignments (channels 1 to 4):
Output Assignments (channels 1 to 4):
For faster session setups, try using the Logic I/O
labelling system (opposite) to rename inputs,
outputs and buses.
The HUI
TM
protocol transfers only 4 characters to the control
surface, therefore if you use short names, this will make
assignments from the console much easier.
