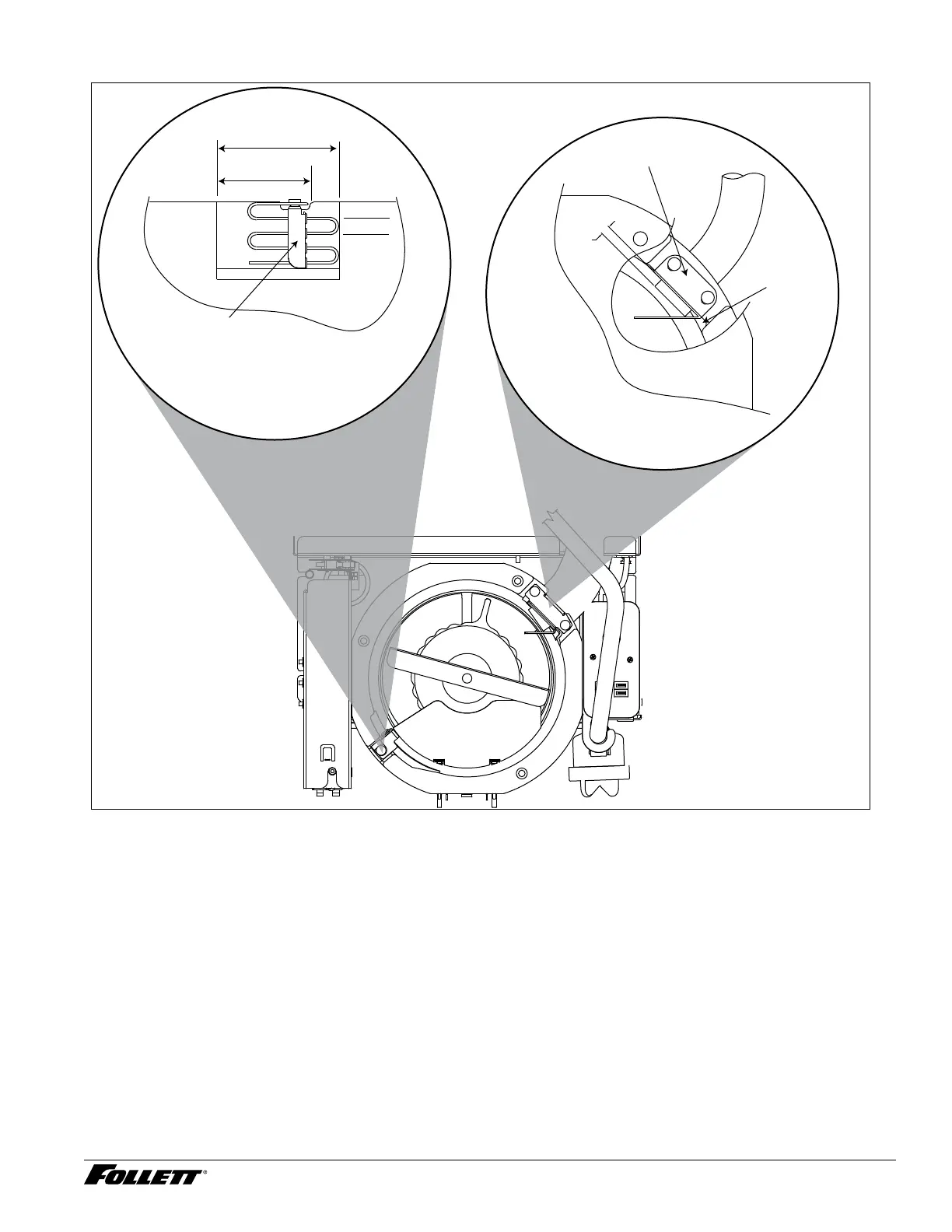

Thermostat and ice transport tube replacement
.25
ice tube
gasket
ice tube
retainer
3" (76 mm)
0.50 TYP
2" (51 mm)
capillary
tube
bracket
Thermostat: hand bend cap tube end as shown
Ice transport tube: tube may
extend a maximum
of 1/4" (6 mm) into ice bin
Ice transport tube replacement
1. Refer to Fig. 23.
