Follett L78614 - Water Supply and Drains

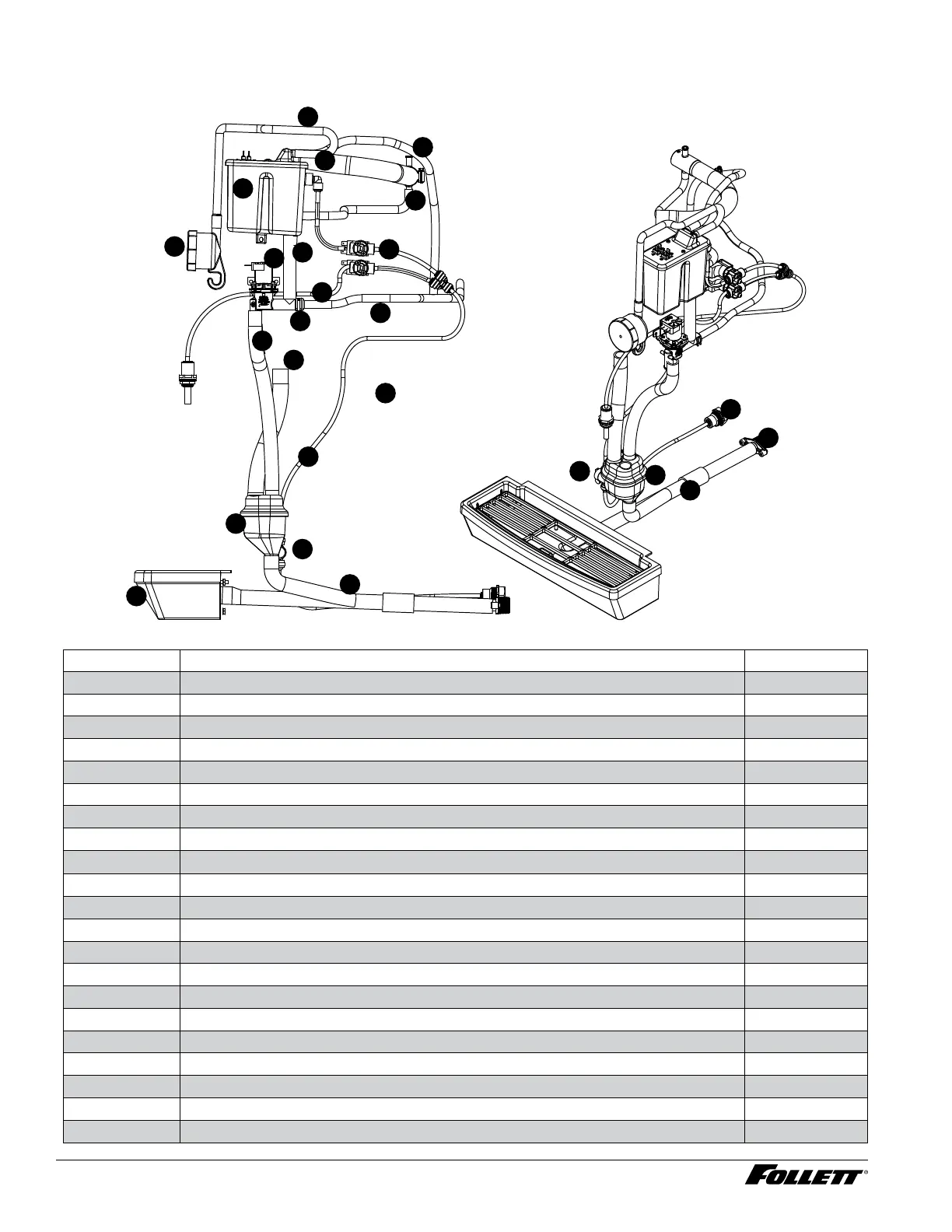

Water supply and drains
18
17
16
15
1
9
9
2
3
12
9
11
8
4
5
10
6
13
14
1
19
18
7
20
6
Reference # Description Part #
1 Cup, drain 01064690
2 Tube, nozzle vent 01148691
3 Tube, nozzle drain 01148790
4 Tube, purge 01054790
5 Tube, bin 01054782
6 Tube, ll/purge - reservoir-solenoid-evaporator feed (includes hose clamp) 01261536
7 Tube, evaporator drain pan 01054154
8 Solenoid, purge 01261510
9
Reservoir (includes lid, gasket, fasteners, clean and vent tubing, cleaning cup) 01230622
10 Fitting, ow divider, 1/4" tubing (After serial number L78614) 01352491
11 Solenoid, ll, dispense (After serial number L78614) 01352483
12 Fitting, 1/4" stem x 1/4" push-in 00121699
13 Tubing, 1/4" 502079
14 Clip, 1/4" valve 01035534
15 Valve, 1/4" 01035526
16 Fitting, 3/8" FPT x 1/4" push-in 01065275
17 Fitting, 3/4" MPT x 3/4" barb 00109728
18 Tube, drain pan/collector cup 01065390
19 Drain pan 00967059
Not shown Bracket, drain cup 01051945
20 Clamp, hose 01281450
