Follett REFVAC4P - Page 5

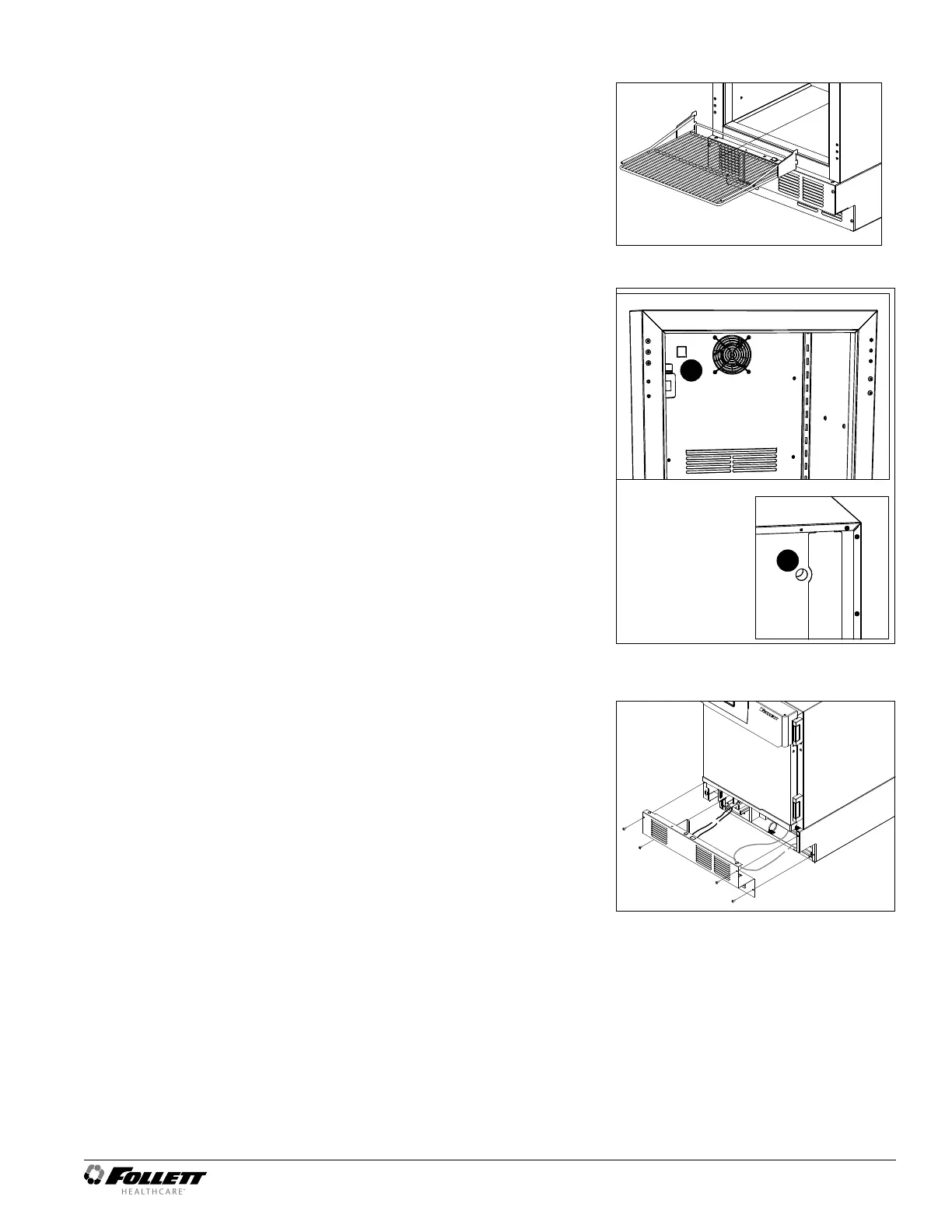

Installing Shelves
1. Remove shelves packed as an accessory (Fig. 3).
2. Place top notch of shelf bracket into pilaster, then bottom notch.
3. Press down on top of shelf to lock the shelf into the pilaster.
Fig. 3
0104175504b
Third-party Probe - Optional
§ It is imperative that the probe bottle be lled with a solution that your
facility uses to ensure proper operation of unit.
§ Units are equipped with a third-party monitor installation port. Customers
are required to refer to CDC Vaccine and Handling Toolkit (cdc.gov)
for proper placement of the probe within the cabinet to ensure proper
performance.
1. Locate the three sided knockout (Fig. 4.1) on the evaporator
cover on the inside of the refrigerator, just left of the fan.
2. Push the knockout with a screw driver until it folds down.
3. Locate the yellow foam circle on the rear of the box (Fig. 4.2).
4. Using a screw driver, puncture a hole through the foam to make
an access hole for the third-party temperature probe.
5. Fish the temperature probe through the foam circle in the back
of the unit, then through the knockout on the evaporator cover.
6. Position the third party probe in the desired location in the
refrigerator cabinet.
7. Use Permagum* or equivalent sealant to replace foam insulation
and ensure proper performance of freezer.
* Permagum is a registered trademark of the Presstite Engineering Company.
Fig. 4
1
2
Reversing the Door Swing – Optional
Tools needed:
§ #2 Phillips head screwdriver
§ Flat-head screwdriver
§ Awl
§ Gloves
§ Safety glasses
1. Turn power OFF (and, if applicable, disconnect the battery
backup) prior to reversing door swing.
2. Remove kick panel* and disconnect reed switch where
applicable (Fig. 5).
* If the unit has a keypad lock, the door must be open to remove the kick panel.
Fig. 5
REFVAC4P, REFVAC5P Undercounter Refrigerators 5
