11. Use a at screwdriver to carefully remove hinge covers.
12. Rotate top of spring assembly (clockwise for left-hands doors
and counter-clockwise for right-hand doors) (Fig.10.1) to
remove the pin (Fig.10.2).
13. Relieve torque on the spring.
14. Remove the knockout on the kick panel and move the strain
relief to the opposite side.

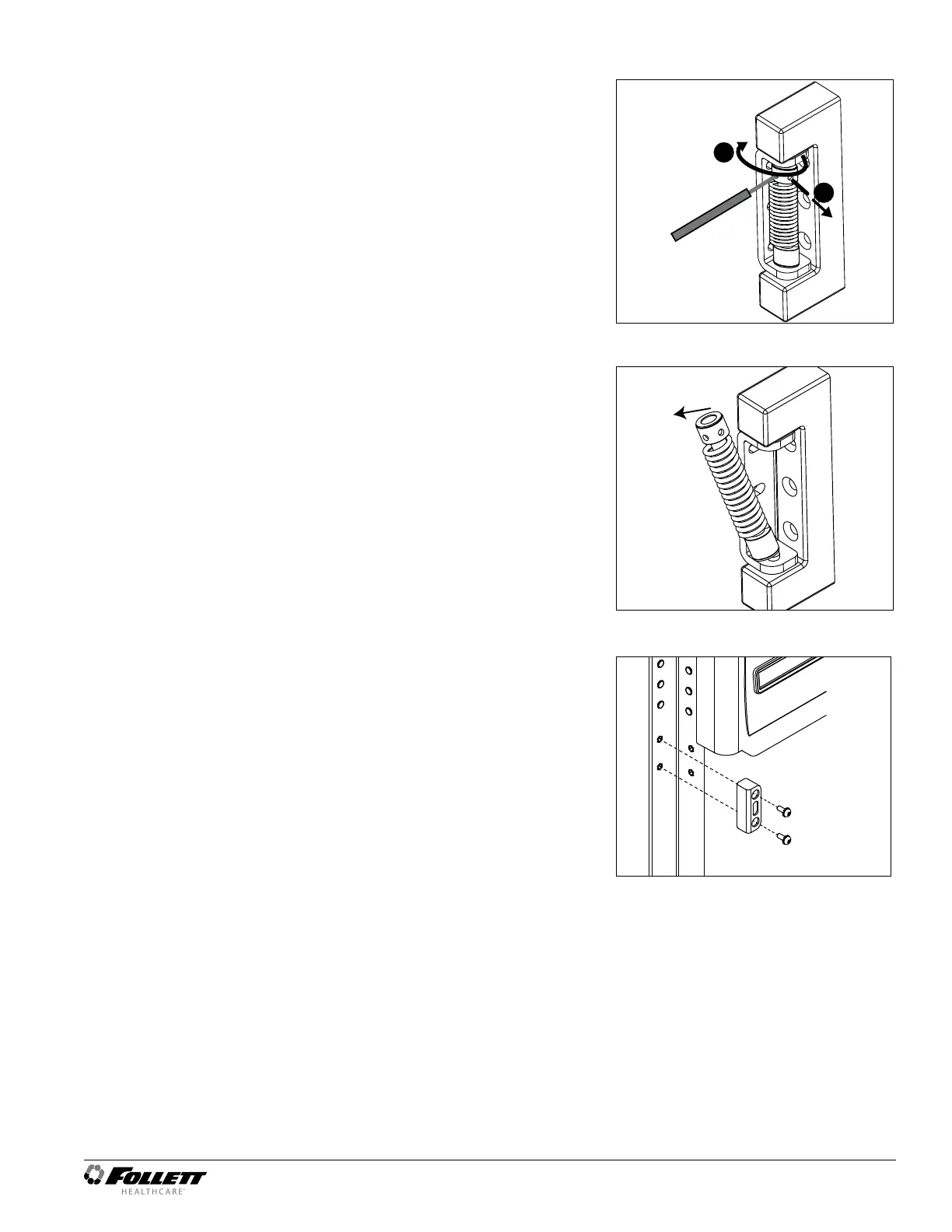

Fig. 10
15. With at-head screwdriver, simultaneously push down and pry
the top of the spring out of the top of the hinge (Fig. 11).
Fig. 11
16. Remove screws and latch from refrigerator cabinet and the lock
from the door (Fig. 12).
Fig. 12
1
2
REFVAC4P, REFVAC5P Undercounter Refrigerators 7
