CHANNELS:
INPUTS:
INCREMENTS:
DISPLAY UNITS:
RANGE:
RESOLUTION:
DISPLAY:
KEYBOARD:
OPERATING TEMP:
POWER:
CONNECTORS:
ENCLOSURE:
PERFORMANCE:
4-20mA OUTPUT SIGNALS (Model WMA420):
Up to 8 separate output signals (NET, RATE, DAILY, BULK or TOTALS)
1000 ohms max per output.
RELAYS (Models W5ASP-OD, W5AP-CD, W5ASP-OS & W5ASP-CS):
A maximum of 12 solid state or dry contact relays, NO/NC
latching/non-latching.
COMMUNICATIONS (Models WRS232 & WRS485):
RS232 Serial Port or RS485 Serial Network Port (MODBUS ASCII protocol).
SPECIFICATIONS
OPTIONS:
WIZARD 4000
ELECTRONIC INDICATOR
4000-1 (1-Channel)
4000-2 (2-Channel)
4000-3 (3-Channel)
4000-4 (4-Channel)
W.5
OPTIONS:
Qty Model
Description
SUBMITTAL DATA:
Wizard 4000 Model No.___________________
No. of Channels _____________
INPUTS
No. of Sourcing 4-20mA Outputs ________________________
No. of Relays: ____________________
____________________
Other Options ______________________________________________________________
__________________________________________________________________________
Dry Contact / Solid State
N.O. / N.C.
1 to 4 independent channels
Up to 4 electronic load cells or 1 Ultrasonic sensor
per channel
1, 2, 5, 10, 20, 50
LB, KG, GAL, LITER, IN, CM
0.01 TO 2,000,000
UP TO 20,000
2 lines, 16 characters per line, alphanumeric LCD
display backlighting, 0.4" characters
10 function keys, 10 numeric keys with tactile feedback
32 to 122 degrees F (0-50 degrees C)
110, 220 or 240 VAC, 50/60 Hz, 1/4 AMP Max.
Power and input/output - 1/2" nylon conduit connectors
Load Cells - 1/2" nylon cord connectors
Nema 4X, UL listed structural foam molded enclosure
Overall System Accuracy: 0.1 to 0.25% F.S.
Non-Linearity: <0.03% F.S.
Hysteresis: <0.02% F.S.
Non-Repeatability: <0.01% F.S.
Thermal Stability: <0.002% degrees F, zero and span
MODELS:
JOB REFERENCE: _______________________________________/s/___________
Dry Contact / Solid State
N.O. / N.C.
#3 NET 57.11 GL
#3 BULK 0.0 GL

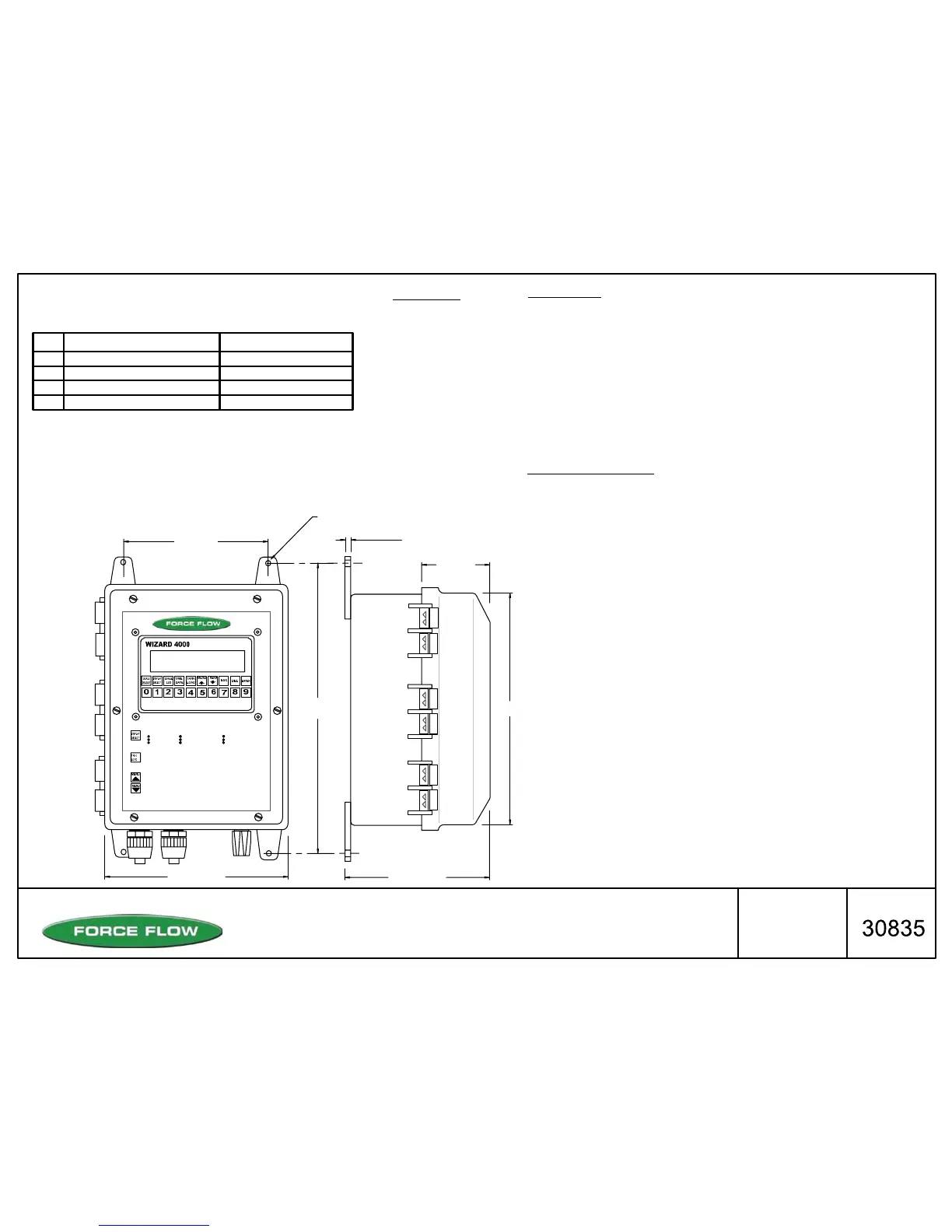

6 5/8" (168mm)
10 1/2"
(266mm)
13"
(330mm)
Centerline
Mounting Brackets (4)
3" (76mm)
6" (152mm)
8 1/2" (216mm)
3/8" (9mm)
PRESS REPEATEDLY TO VIEW:
NET WEIGHT
FEED RATE
DAILY USAGE
DAYS UNTIL EMPTY
TOTAL USAGE
PERCENT FULL
BASE UNITS
BULK TANK SUPPLY
BAR GRAPH
PRESS BEFORE STARTING TANK CHANGES OR REFILLS TO
MAINTAIN ACCURATE USAGE DATA.
ACCESS "USER" AND "SETUP" MENUS. "USER" MENU LISTED
BELOW (SEE O&M MANUAL FOR "SETUP" MENU).
1 ALARM HISTORY
2 DATE LAST CLEARED
3 CLEAR AMOUNT USED
4 VIEW TOTAL
5 SET TIME & DATE
6 VIEW BULK SUPPLY
7 VIEW TARE
8 DISPLAY UNITS
9 SET ZERO
MOUNTING BRACKET (TYP 4 PLCS)
