Force Flow WIZARD 4000 - Digital Display; Action Required

ACTION REQUIRED:
DIGITAL DISPLAY:
SETUP MENU continued...
QUESTIONS ? Help Hotline: 1-800-893-6723
File: T4\NEW O&M 2007\W23A WIZ NEW PR328 SETUP8 2008.tcw
03/21/08 MT
15 FIELD CAL continued...

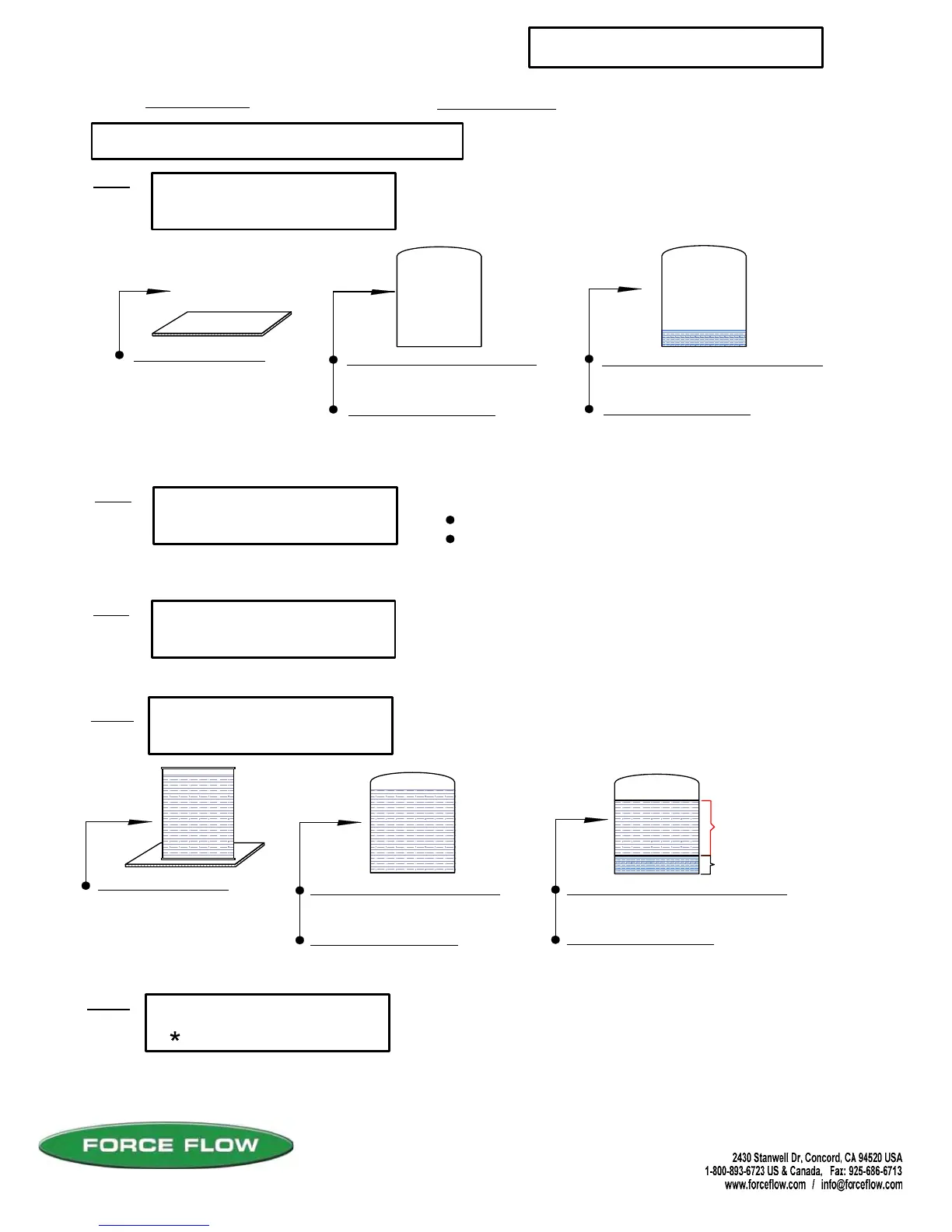

Step 8
#1 APPLY MAXIMUM
THEN PRESS ENTER
Step 7
ENTER MIN. VAL
LBS = 0.0
Enter minimum value. If tank or scale is empty, enter "O".
If tank is partially full, enter value of contents. See examples below:
Add a known amount to the scale or tank.
MIN. = 0
PLATFORM SCALE WITH EMPTY TANK:
MIN. = KNOWN AMOUNT (of chemical in tank)
MIN. = O (if amount in tank unknown)
ULTRASONIC LEVEL SENSOR:
MIN. = KNOWN HEIGHT (of chemical in tank)
EMPTY TANK
EMPTY SCALE
PORTABLE = Full cylinder, ton container or drum.
FIXED TANKS = Fill tank with a known weight of
chemical, or volume converted to weight.
Step 9
WAIT ......
Wait for instructions.
W.23-A
EMPTY SCALE PLATFORM:
MIN. = 0
MIN. = 0
PLATFORM SCALE, PARTIALLY EMPTY TANK:
ULTRASONIC LEVEL SENSOR:
SOME
CHEMICAL
IN TANK
Step 10
ENTER MAX. VAL
LBS = 100.0
Step 11
CALIBRATE MORE ?
NO YES
Enter the amount of weight (scale) or the chemical
height (ultrasonic). See Examples below:
"NO" to exit. "YES" to calibrate other channels.
MAX. = CHEMICAL WEIGHT + TARE
MAX. = TOTAL HEIGHT (of chemical in tank)
CHEMICAL
ADDED
FULL
CYLINDER
OR DRUM
ADDED AT LEAST
25% OF CAPACITY
STARTING CHEMICAL LEVEL
CHEMICAL
ADDED
PLATFORM SCALE WITH EMPTY TANK:
ULTRASONIC LEVEL SENSOR:
EMPTY SCALE PLATFORM:
PLATFORM SCALE, PARTIALLY EMPTY TANK:
ULTRASONIC LEVEL SENSOR:
MAX. = TOTAL WEIGHT (of chemical in tank)
MAX. = TOTAL WEIGHT (if starting amount known)
MAX. = ADDED AMOUNT ONLY (starting amount unknown)
MAX. = TOTAL HEIGHT (of chemical in tank)
