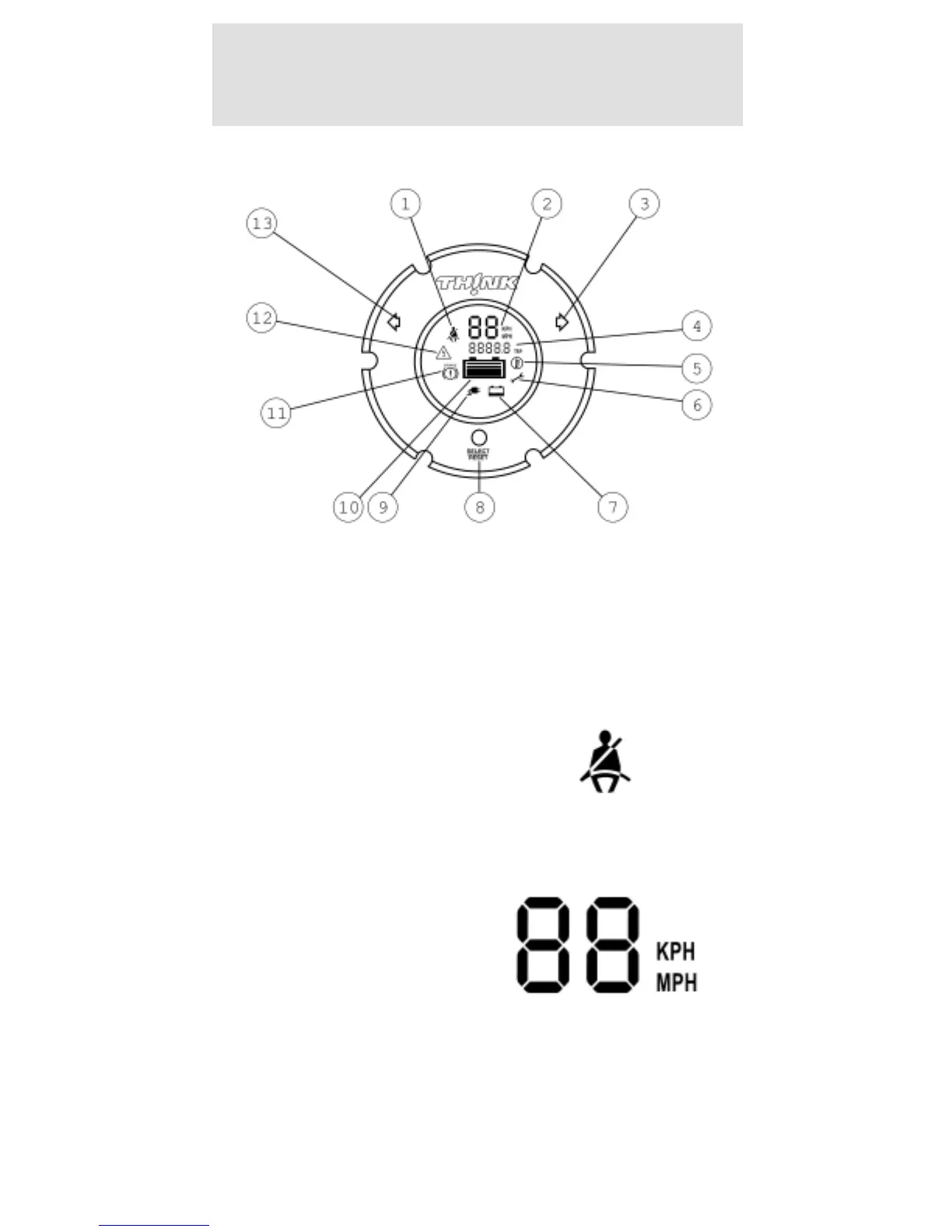

GAUGES
The instrument cluster LCD (liquid crystal display),
referred to as the “gauge,” will be activated if any of
the following conditions exist:
• Key switch is on
• Vehicle batteries are being recharged
1. Safety belt warning
indicator
The safety belt
warning icon will
illuminate for 30
seconds after the
vehicle is switched into D (Drive) mode.
2. Speedometer gauge
LCD
A two-digit LCD gauge
display shows the
vehicle speed in either
MPH or KPH,
depending on the selected mode. Vehicle speed is
shown while in R (Reverse), T (Turf), and D
(Drive) modes. The top speed of your vehicle in
Drive mode is 25 mph (40 km/h) and 15 mph
(24 km/h) in Turf mode.
Instrumentation
4
