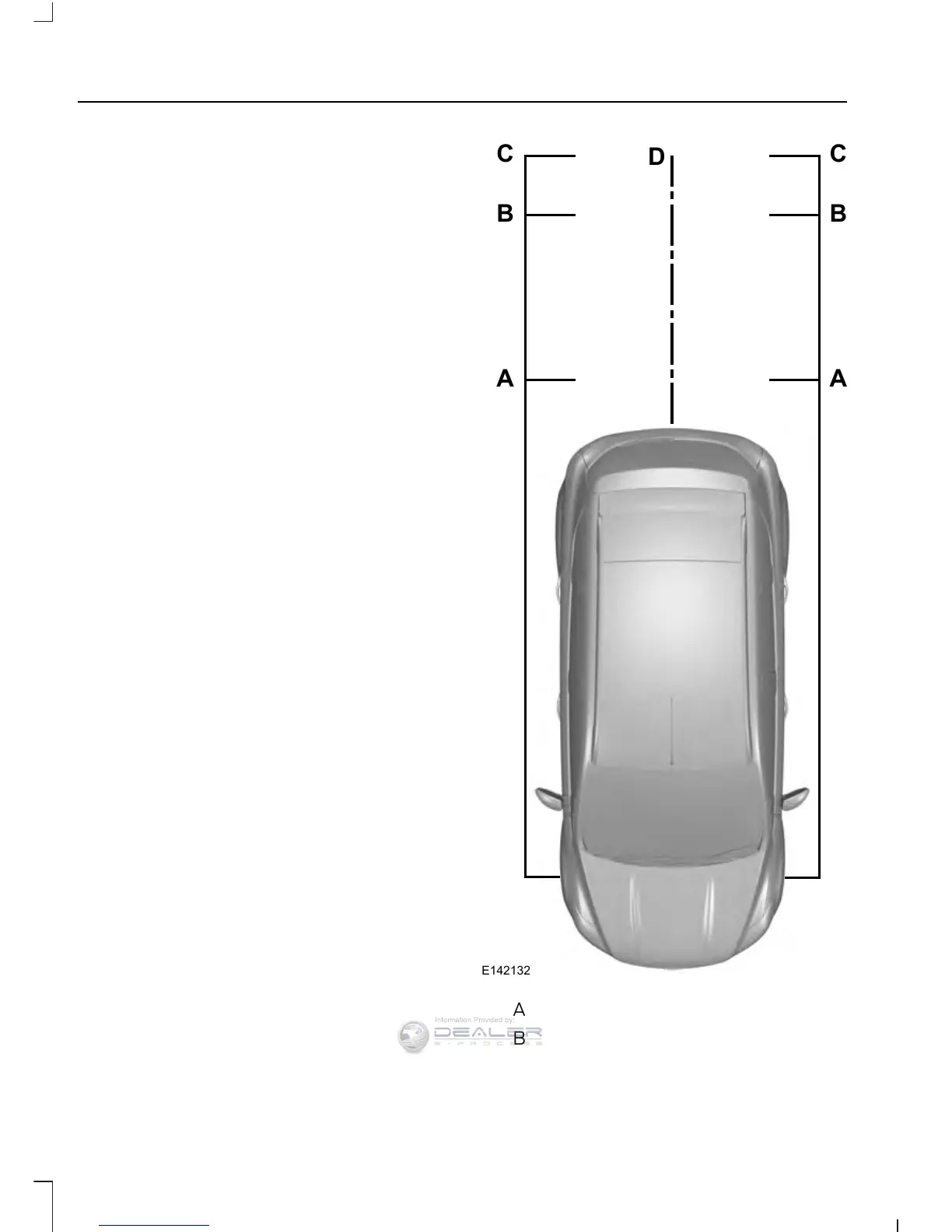

The lines show a projected vehicle path

and the approximate distance from the

rear bumper to an object.

E142132

A

B

C

A

B

C

D

Red - ZoneA

Amber - ZoneB

138

Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing

Parking Aids
