Circuits switchedRelay
Ignition switch.R1
Rear heating, ventilation and air conditioning motor.R2
Ventilation and air conditioning motor.
Not used.R3
Not used.R4
Not used.R5
Not used.R6

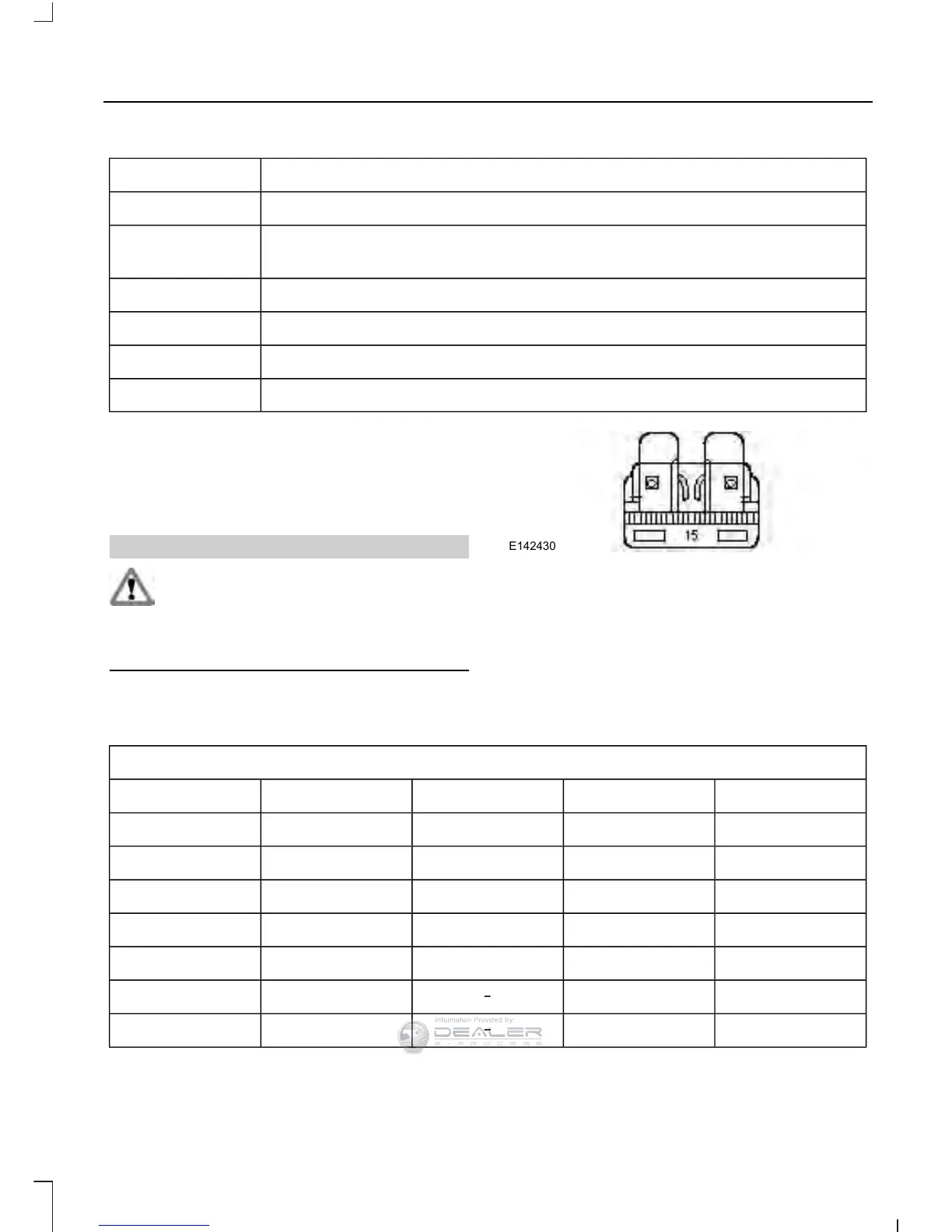

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire.
If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
Standard Fuse Amperage Rating and Color
Color
J-type fusesM-type fusesDual micro fusesMicro fusesFuse rating
--TanTan5A
--BrownBrown7.5A
--RedRed10A
-GreyBlueBlue15A
BlueLight Blue-Yellow20A
WhiteWhite-White25A
PinkPink-Green30A
191
Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing
Fuses
