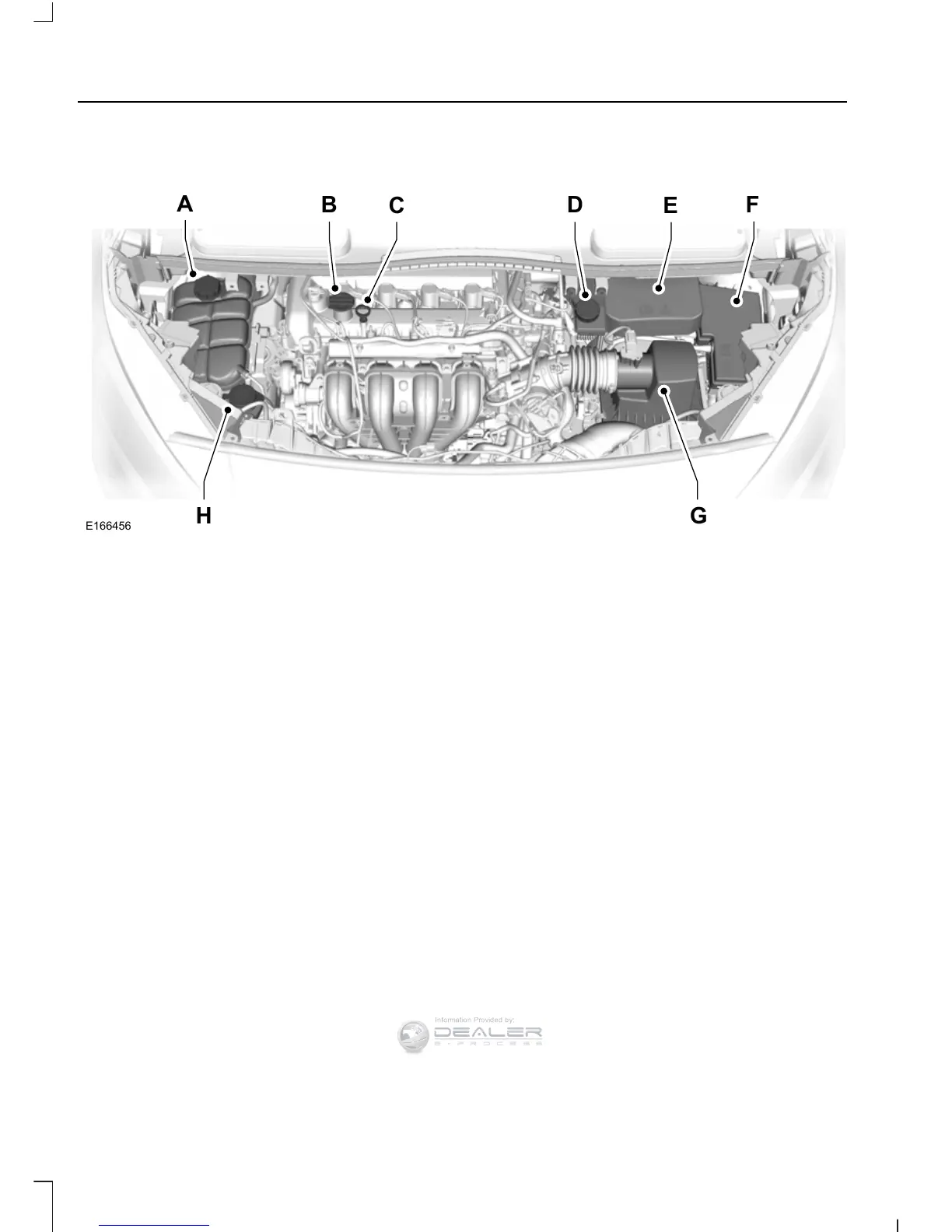

UNDER HOOD OVERVIEW - 2.5L
B
C
A
H G
D
E
F
E166456
Engine coolant reservoir
*
: See Engine Coolant Check (page 198).A
Engine oil filler cap
*
: See Engine Oil Check (page 197).B
Engine oil dipstick
*
: See Engine Oil Check (page 197).C
Brake and clutch fluid reservoir
*
: See Brake Fluid Check (page 200).D
Battery: See Changing the 12V Battery (page 201).E
Engine compartment fuse box: See Fuses (page 181).F
Air cleaner: See Changing the Engine Air Filter (page 212).G
Windshield and rear window washer fluid reservoir: See Washer Fluid Check
(page 200).
H
*
The filler caps and the engine oil dipstick are colored for easy identification.
