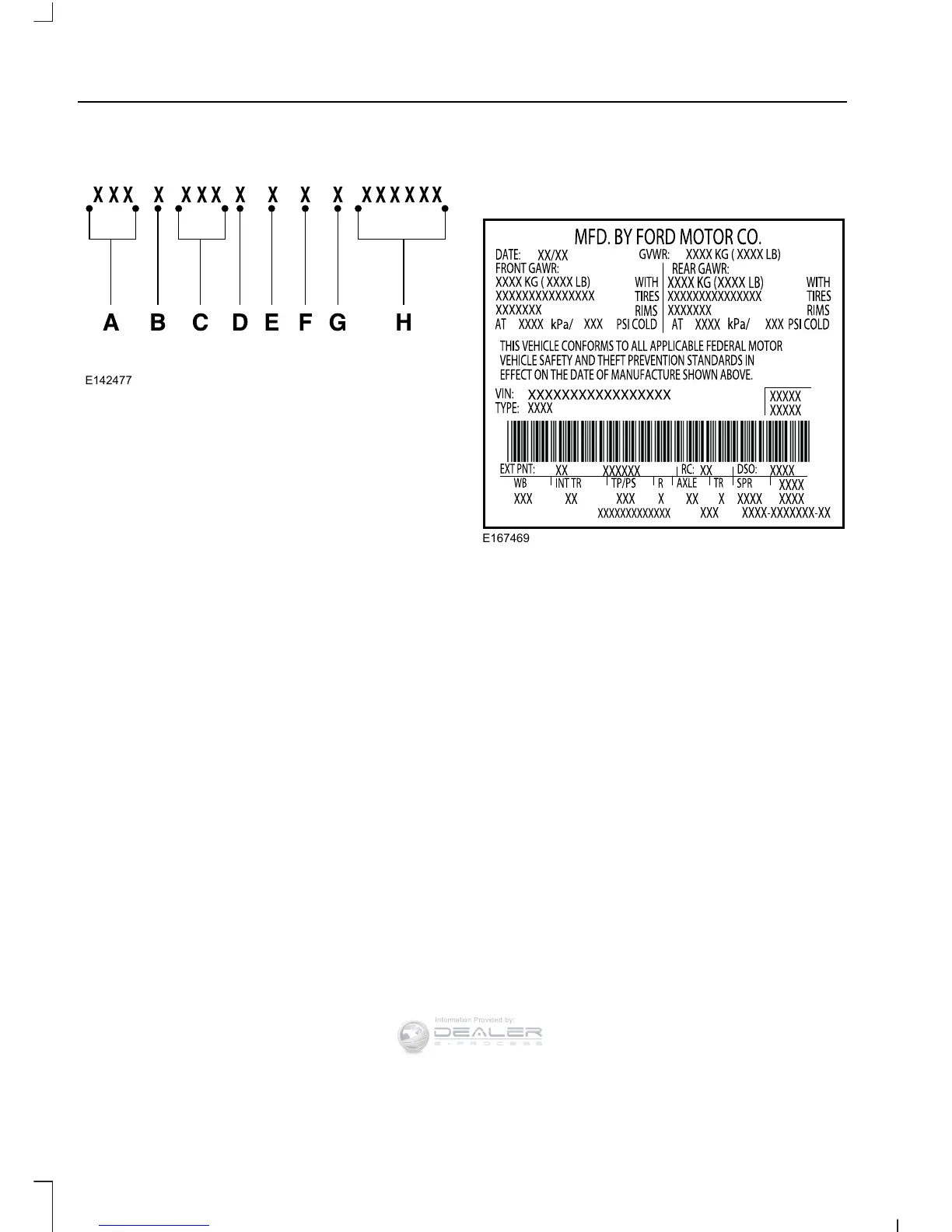

E142477

World manufacturer identifierA

Brake system, Gross Vehicle

Weight Rating, Restraint Devices

and their locations

Make, vehicle line, series, body

type

Engine typeD

Check digitE

Model yearF

Assembly plantG

Production sequence numberH

VEHICLE CERTIFICATION

LABEL

E167469

The National Highway Traffic Safety

Administration Regulations require that a

Safety Compliance Certification Label be

affixed to a vehicle and prescribe where

the Safety Compliance Certification Label

may be located. The Safety Compliance

Certification Label shall be affixed to either

the door hinge pillar, the door latch post,

or the edge of the door near the door latch,

next to the driver's seating position.
