E145950

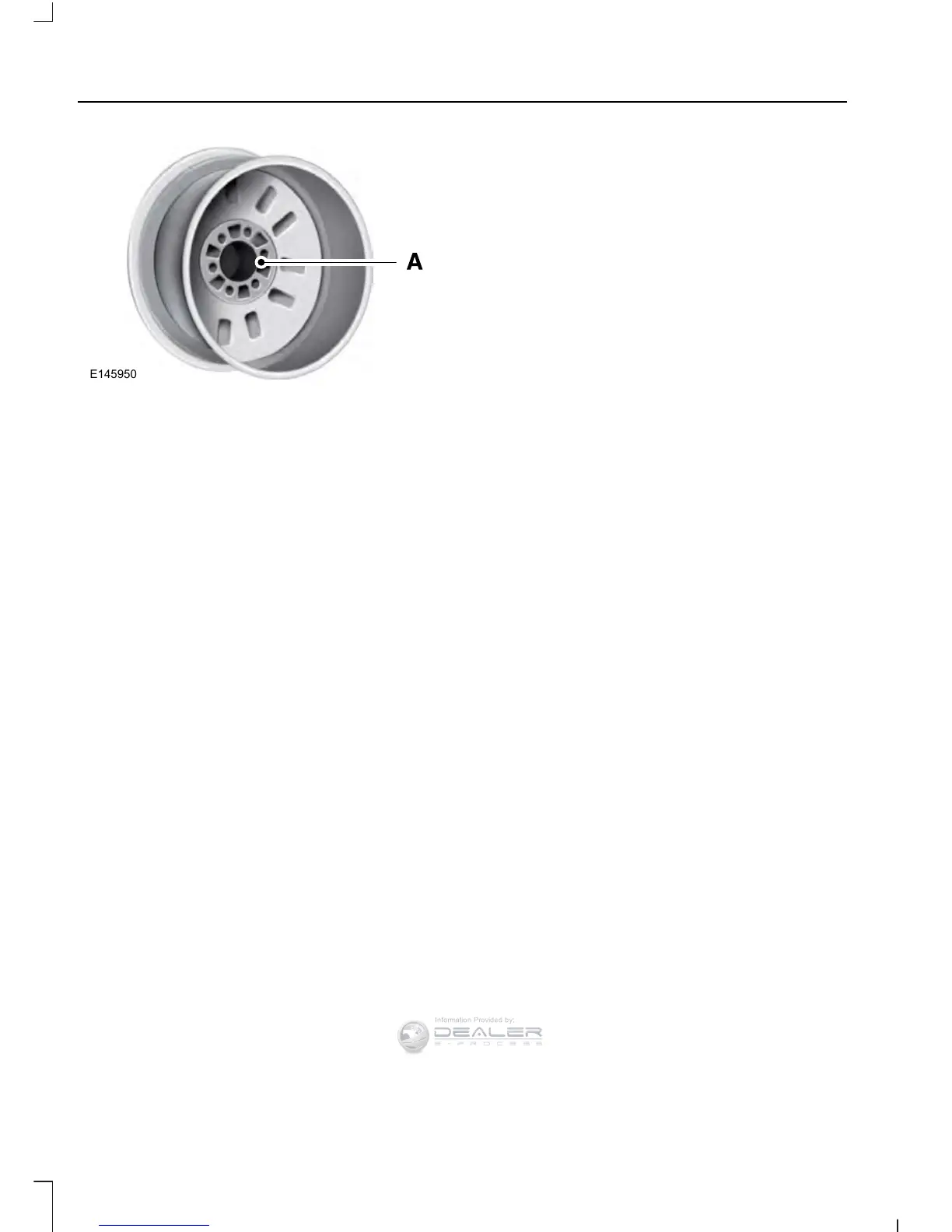

Wheel pilot boreA

Inspect the wheel pilot bore and

mounting surface prior to installation.

Remove any visible corrosion or loose

particles.

248

Tourneo Connect/Transit Connect (CHC) Canada/United States of America, enUSA, First Printing

Wheels and Tires
