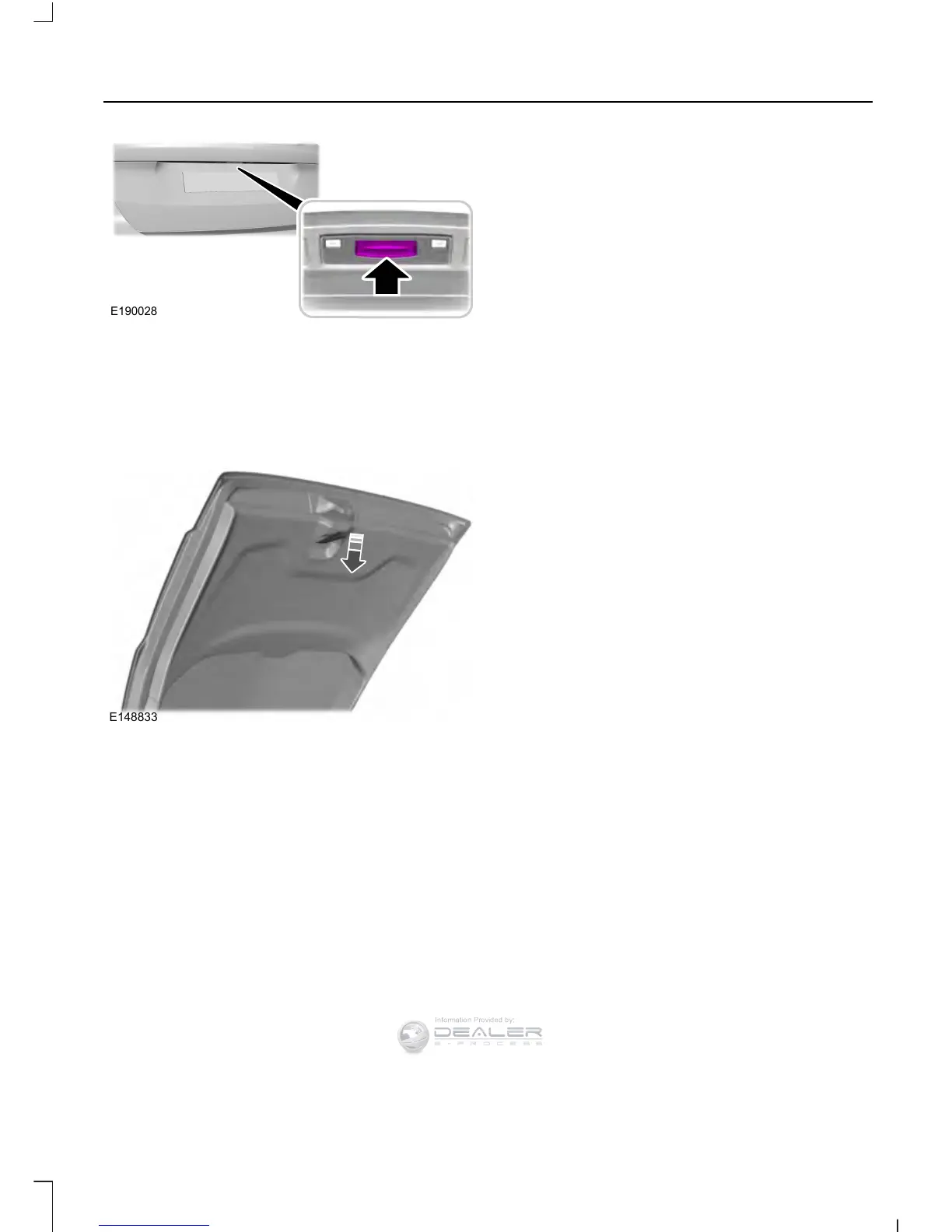

E190028

2. Press the release button above the

license plate to unlatch the liftgate.

Note: Do not leave the liftgate open while

driving.

To Close the Liftgate

E148833

57
