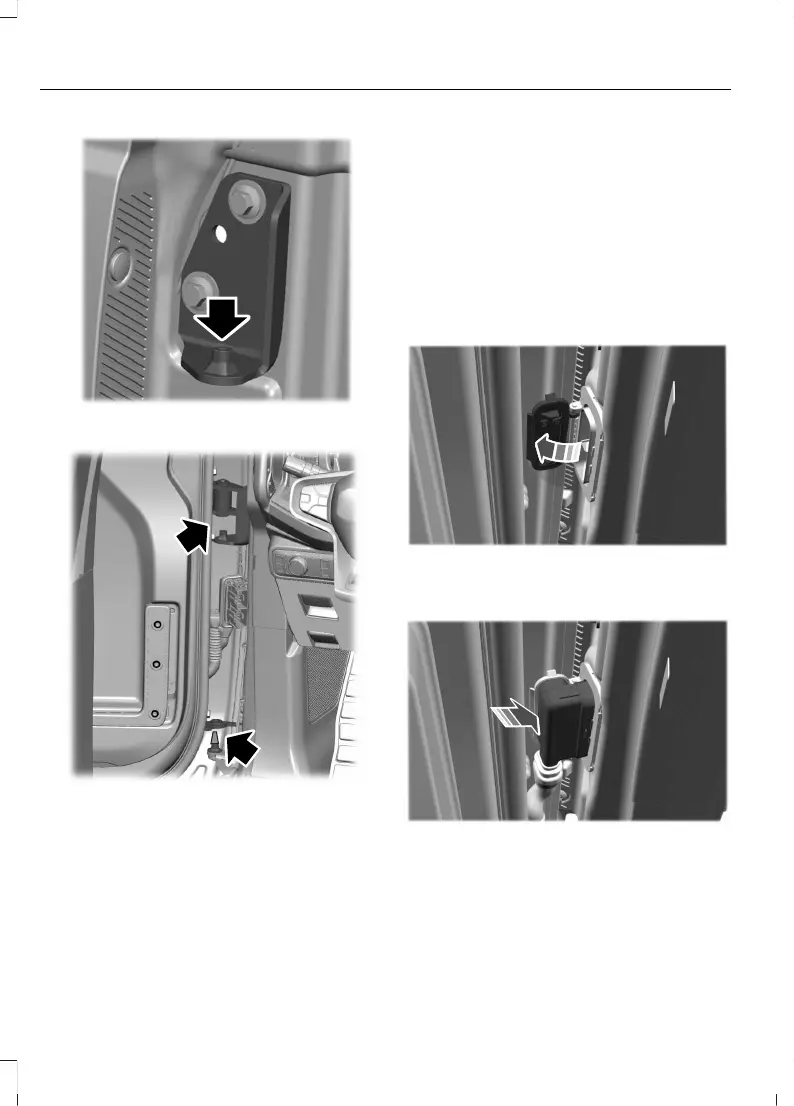

9. With the help of another person, lower
the door onto the body hinges, aligning
the upper door portion to the upper
body pin and the lower door portion to
the alignment pin.
Note: Make sure you do not pinch the wiring
connector harness between the door and
the body of the vehicle.
10. Remove the lower alignment pin.
11. Hand start the hinge bolts to the
upper and lower door hinges.
12. Use the hex tool to tighten the bolts.
Note: We recommend that you use a torque
wrench to make sure you tighten the bolts
to the required 22 lb.ft (30 Nm)
specification.
13. If using a storage bag, remove it from
the door.
14. Open the harness connector door.
16. Open and close the installed door a
few times to make sure you aligned
it properly and that it operates
normally.
17. To install additional doors, repeat
Steps 3 – 16.
342
2021 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202101, First-Printing
Removable Vehicle Components
