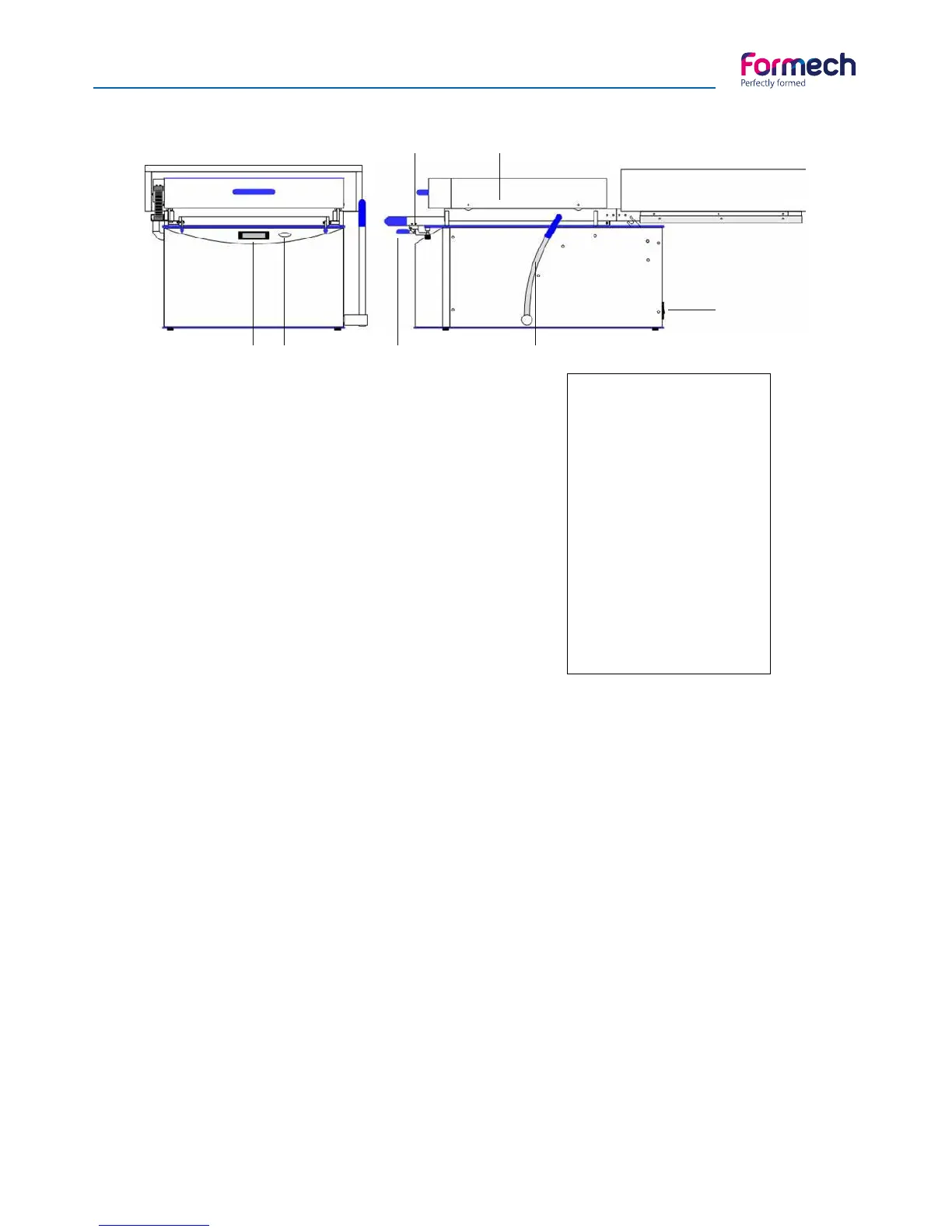

General Arrangement 508DT
1 2
3 5
4 6
7
Electrical Specifications
220/240V, 13 amps, 50Hz single phase
208/220V, 13 amps, 60Hz two phases (North America)
Power consumption: 3,2 kW
Mechanical Specifications
Sheet size: 457 x 508mm
Forming area: 482 x 432mm
Max depth of draw: 185mm
Overall width: 720mm
Overall height: 538mm (1250mm with trolley)
Overall length: 1394mm (ASSEMBLED)
Weight: 100kg
Legend
1- Touch screen
2- Vacuum gauge
3- Clamp frame
4- Material clamp
5- Heater box
6- Table lever
7- Specification plate
Power inlet receptacle
Main fuse
Power switch ON/OFF
Air output
Transportation / Positioning
The 508DT will be supplied strapped to a Pallet or in a crate. The machine may unpacked and placed on a
bench, table or 508DT trolley. Lift the machine using the clamp handles at the front of the machine and the
rear rail lifting handle extensions. Ensure that the structure, size and load bearing capacity of the bench or
table is sufficient for the machine weight. A minimum of 2 persons are required to move the machine. In
the case of the 508DT trolley, ensure that the 2 machine retaining screws are fitted to the under side of the
trolley / Machine. ALL MOVING AND LIFTING MUST BE SUPERVISED BY THE PERSON RESPONSIBLE FOR
HEALTH AND SAFETY.
Noise emissions
Noise emissions on the Formech 508DT are less than 70dB(A).
Machine storage
The Formech 508DT must be stored in a dry environment. If the machine is not used for a long period of
time, run the pump periodically (once a month).
