Installation and Inital assembly 508

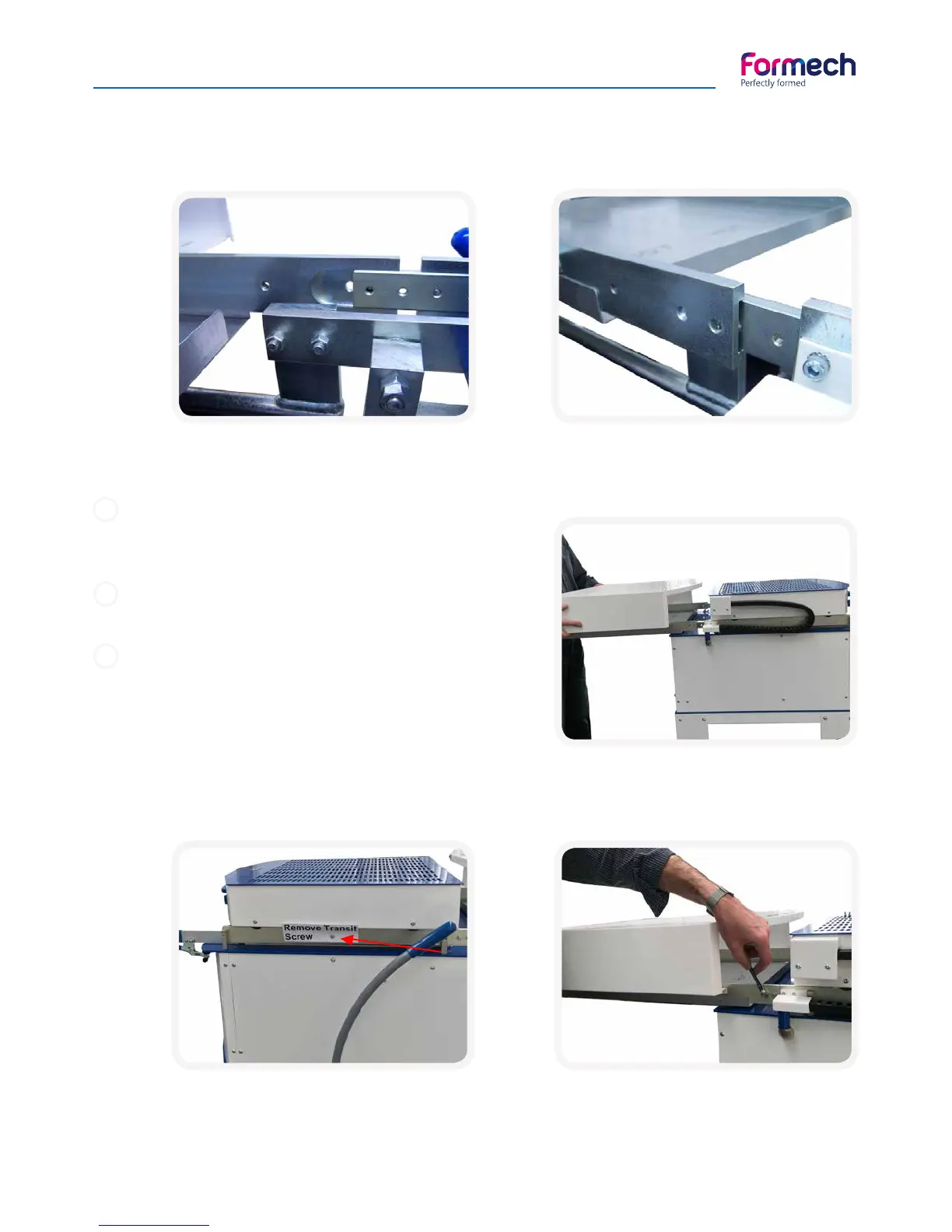

Heater Guard - 508DT & 508FS
Slide the heater guard rails onto the front rail link bars
as shown. Take care to fit evenly so that the front and
rear rails meet and the fixing holes are aligned.
Fit the 4 screws – 2 each side – using an 8mm spanner.
Ensure all screws are tight and that heater rails are
aligned.
The heaters are kept in the front position for transit
by a screw that is positioned mid way along the front
heater rail.
Remove the screw from the side to allow the heaters to
be moved backwards.
1
2
3
