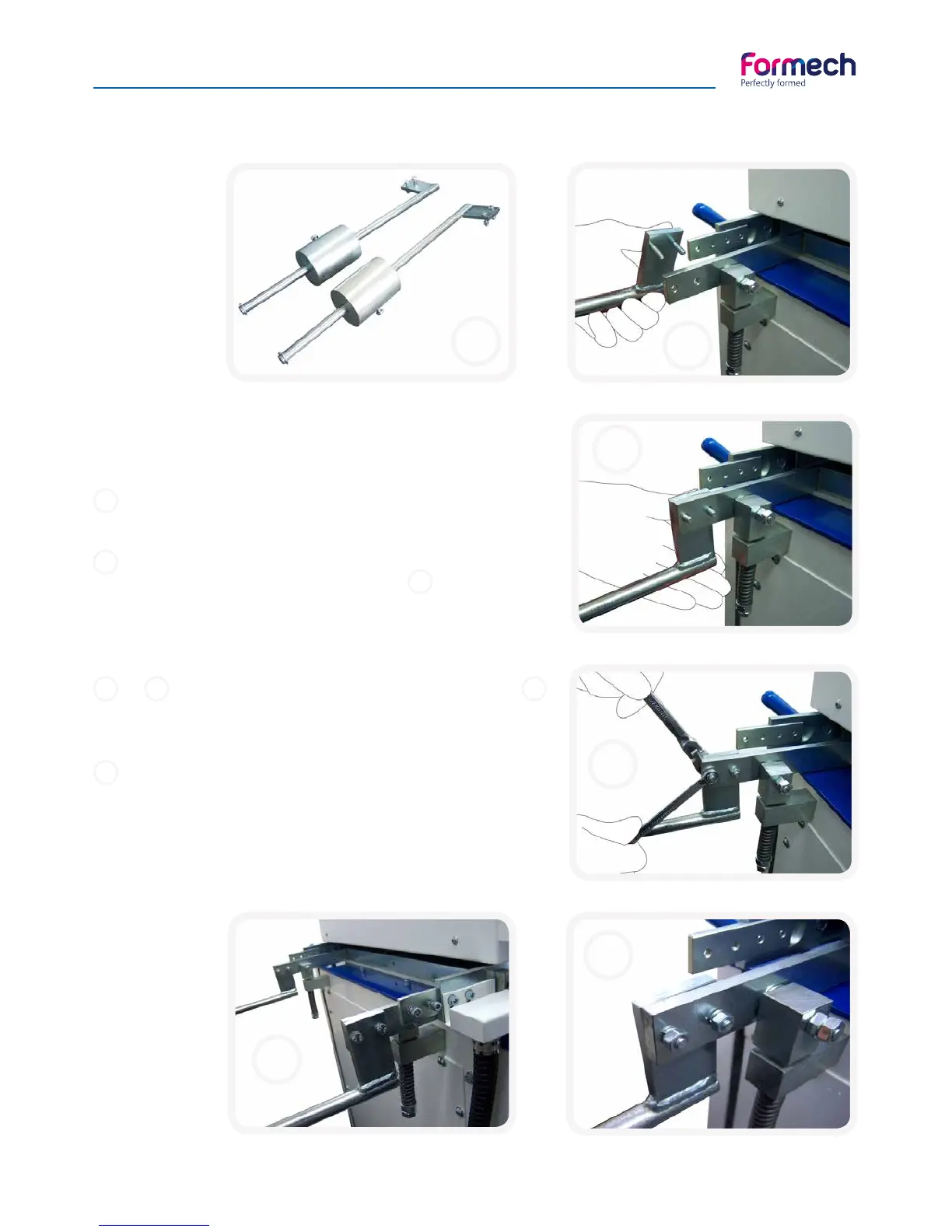

Installation and Initial assembly (508FS only)
Remove the nuts and washers from the counterweight
arms.
Lift the Counterweight arm with the screws and insert in
corresponding holes of the clamp frame.
Ensure the counterweight arm is fitted to the outside of the
clamp frame.
& Fit and tighten the washers and nuts removed in
Repeat for both sides of the clamp frame.
1
2
3
4
5
6
1
2
3
4 5 1
6
Counterweights
