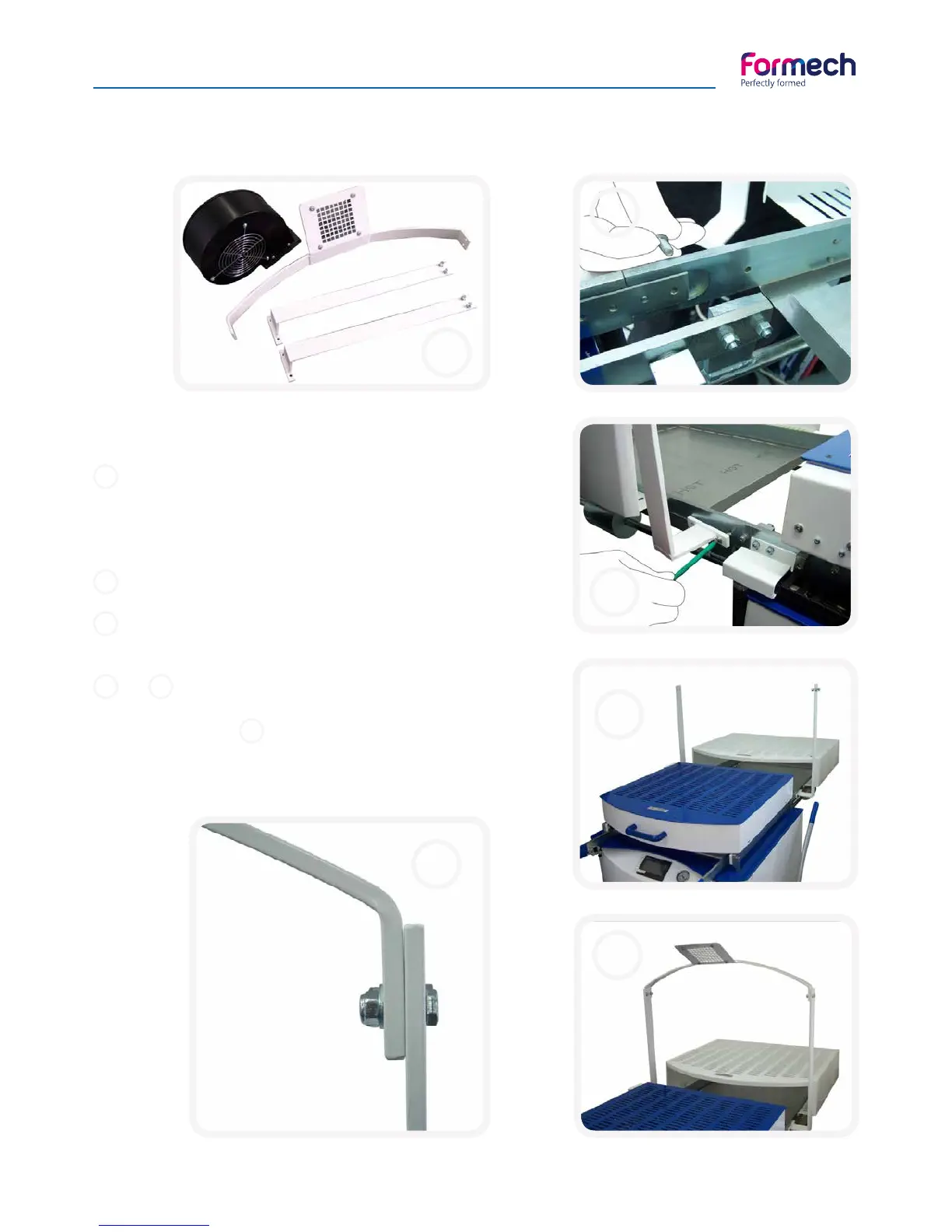

The Cooling fan option consists of:
• FAN & Power lead
• L&R Fan Posts
• Fan Crossmember.
Remove the rear screw of the rail link Fan post .
Fix and tighten with the screw and a 2nd mounting
screw for both posts.
& Fix the crossmember to the fan posts using the
fixings supplied. Position the fan grill towards the front
of the machine.
Installation and Initial assembly (508FS only)
Cooling fan option
